STARFLO FLO-2202A 4.0LPM 12V DC manufacture new electric agricultural knapsack power sprayer pump



Save -18% Rs. 10,943.30 Rs. 13,390.25

Shanvis

Bike | Car | Automobile | Accessories Tech Accessories

5401681013089_80069801

2000 In Stock Sold Out 2000 1970


HURRY ! ONLY 2000 LEFT IN STOCK.

Type
Maximum Head
Maximum Flow Rate
Notify Me


Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US





PARAMATER DETAILS



STARFLO FLO-2202A 4.0LPM 12V DC manufacture new electric agricultural knapsack power sprayer pump



DESCRIPTION:



STARFLO FLO series Industrial Pumps are designed for a wide range of applications and are constructed from a selection of materials-suitable for handling a broad, range of chemicals.

The FLO series of diaphragm pumps are self priming and canbe run dry without harm.

They are intended for intermittent duty cycles but can be run continuously for short periods of time.

The higher the duy cycles the shorter the expected life of the pump.

Typical pump uses are liquid transfer, spraying, circulation, filtration and dispensing.



Operation:



To star and prime the pump, the discharge line must be open allowing trapped air to escape thus avoiding the potential of airlock.

The pressure switch wll shut off the pump automatically when the discharge valve is closed and the pressure has risen to the switch OFF set point.

The pressure switch will restart the pump when avalve is opened and the discharge line pressure drops to the ON set point of pressure switch.



Volts: 12V / 24V DC
Type: 2 Chamber Diaphragm
Port Size: 3/8"(19MM) Hose Barb
Liquid 140°F (60℃) Max
Self-Priming:  4.0 feet (about 1.2M)
Check Valve: EPDM or Viton
Run Dry: Yes
Motor:  Permanet Magnet , Intermittent
Duty Protection: Thermal Overload, Automatic Restart



Features:



Built-in chec valve


Permanent Magnet motor with longer lifetime.


Antivibration pad,easy installation.


Self-priming,Top quality Automatic Pressure Switch.


can do bypass type.


Low Noise,with excellent resistant to chemical corrosion.



TECHNICAL DATA



Model Volt(V) Flow Rate(LPM/GPM) Pressure (PSI/Bar) Amp Draw(A)
FLO-2201 12 2.0(0.5) 55(3.8) 1.8
FLO-2202 12 3.8(1.0) 35(2.4) 3.0
FLO-2202-1 12 4.3(1.1) 55(3.8) 3.5
FLO-2203 12 2.6(0.7) 70(4.8) 2.1
FLO-2203-1 12 3.1(0.8) 70(4.8) 2.2
FLO-2202A 12 4.0(1.1) 80(5.5) 2.6
FLO-2401 24

2.0(0.5)

55(3.8) 0.9
FLO-2402 24 3.8(1.0) 35(2.4) 1.5
FLO-2403 24 2.6(0.7) 70(4.8) 1.0
FLO-2402A  24 4.0(1.1) 80(5.5) 1.3





DIMENSION DRAWING OF MINI WATER PUMP:







APPLIATION:



RV, YACHT, PORTABLE CAR WASHER, AGRICULTURE SPRAYER, ROAD CLEANING , GARGEN IRRIGATION,

SHOWER,OUTDOOR CAMPING, MOBILE TOILET.

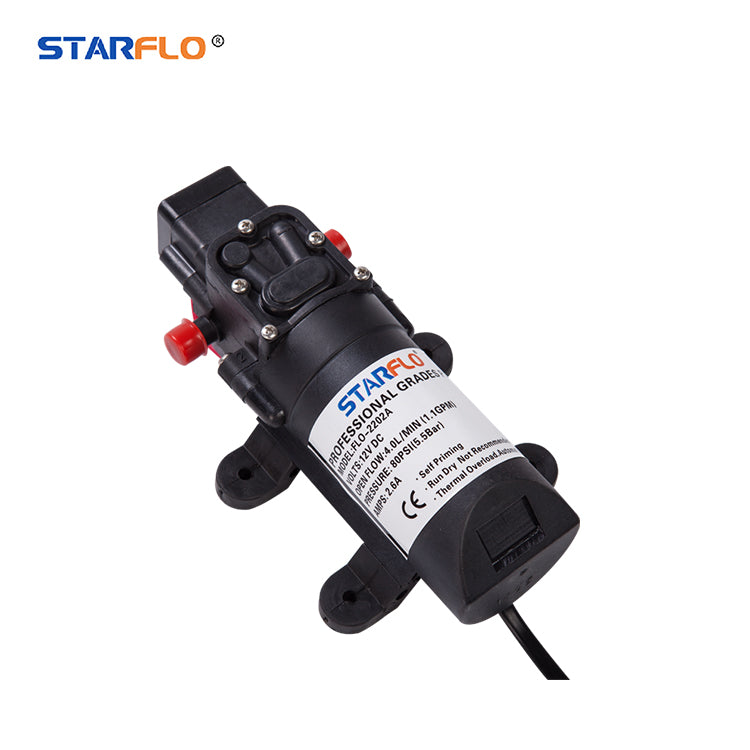

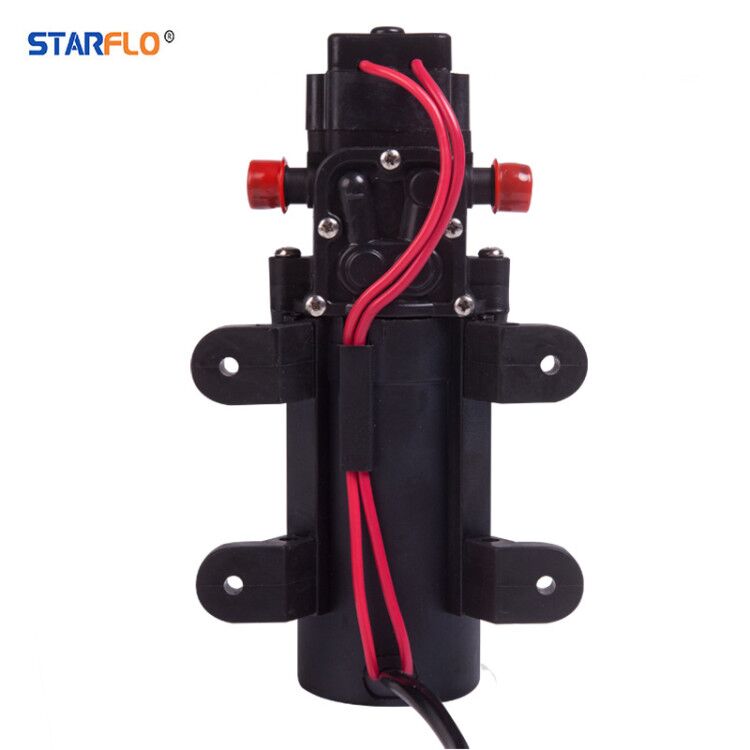

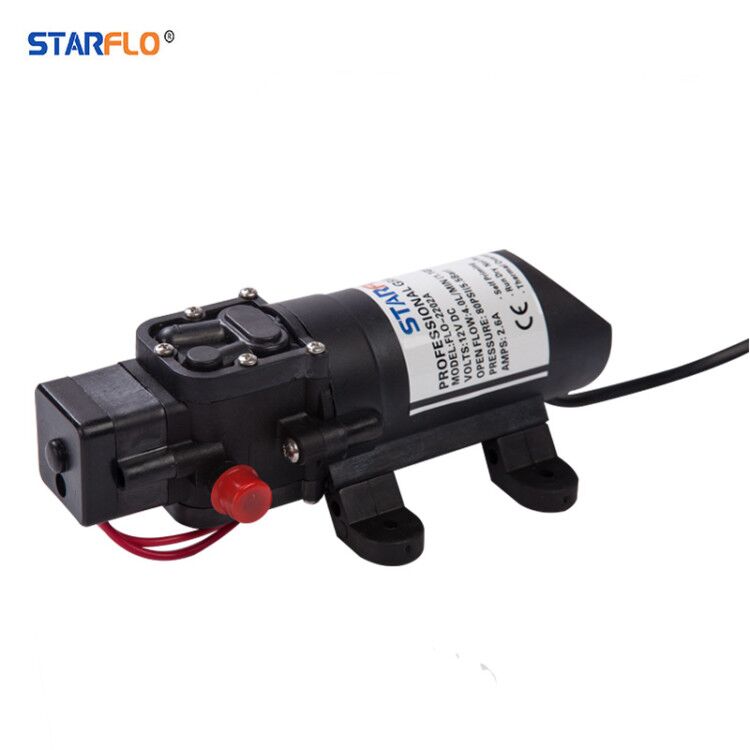

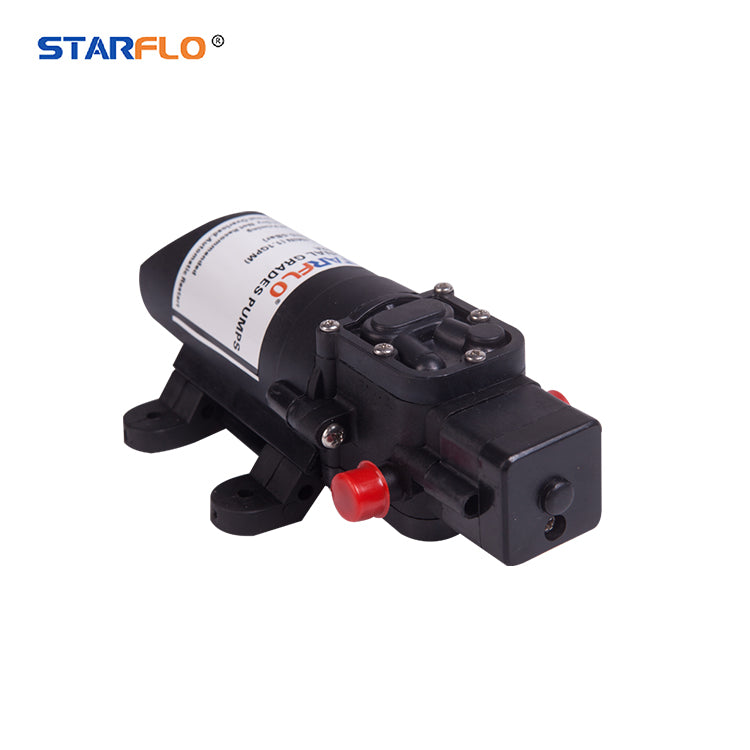

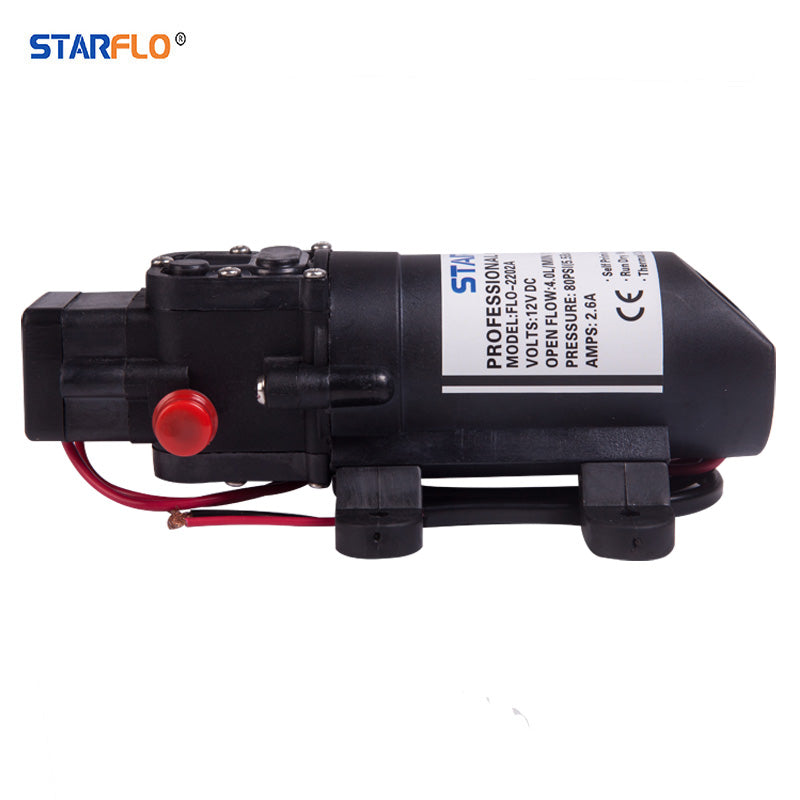

PUMP PICTURES:





diaphragm pump.png

mini water pump.png










 diaphragm pump.png





Are you ineterested.png



eletric pump diaphragm.png                    FL-30 12 voltsprayer pump.png

diaphragm water pump.jpg             12V pump.jpg





FAQ





Q: What is your MOQ?
A: 100 pieces in general, but no MOQ requirement for sample testing.

Q: Do you accept OEM/ODM service?
A: Yes. We are also the OEM/ODM supplier for many famous companies, and have different customer make their own OEM product.

Like customers' own lable and box design with customers' logo.

Q: What is your terms of payment?
A: 30% T/T in advance,70% after finish production. If you have any another question, pls feel free to contact us.

Q:  Can I get some samples before place order and how long for a sample?

A: Yes, Sample order is welcome, usually the sample delivery time is within 7days.

Q: What is the delivery time?
A: It depends on the order quantity. It usually takes 10-15 days upon receipt of your 30% deposit by T/T. Sample can be delivered within 7 days.

Q: Can I buy different products in one container?
A: Yes, you can mix different models of pumps in one container.

Q: What is your warranty?
A: 1 year, and within 24 hours reply will be provided to solve customers' problems.

Q: How do you ship the goods ?

Q: shipping by express (sample order) and by air or by sea (bulk order),  please contact before order because the freight base on quantity.

Q: What is your port of loading?
A: Shanghai port,  Ningbo port, Fuzhou port , Xiamen port.
