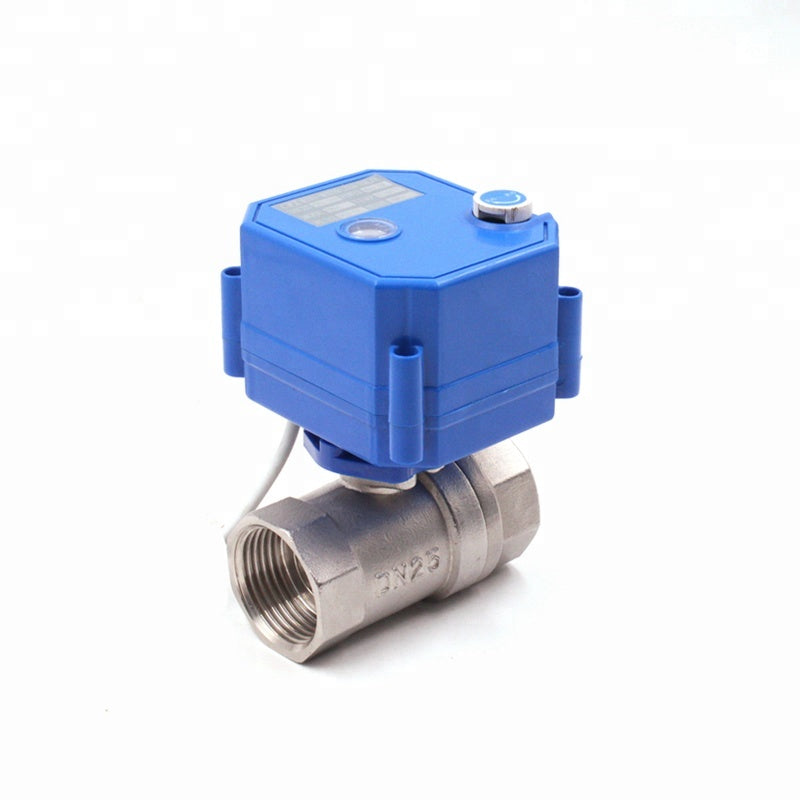

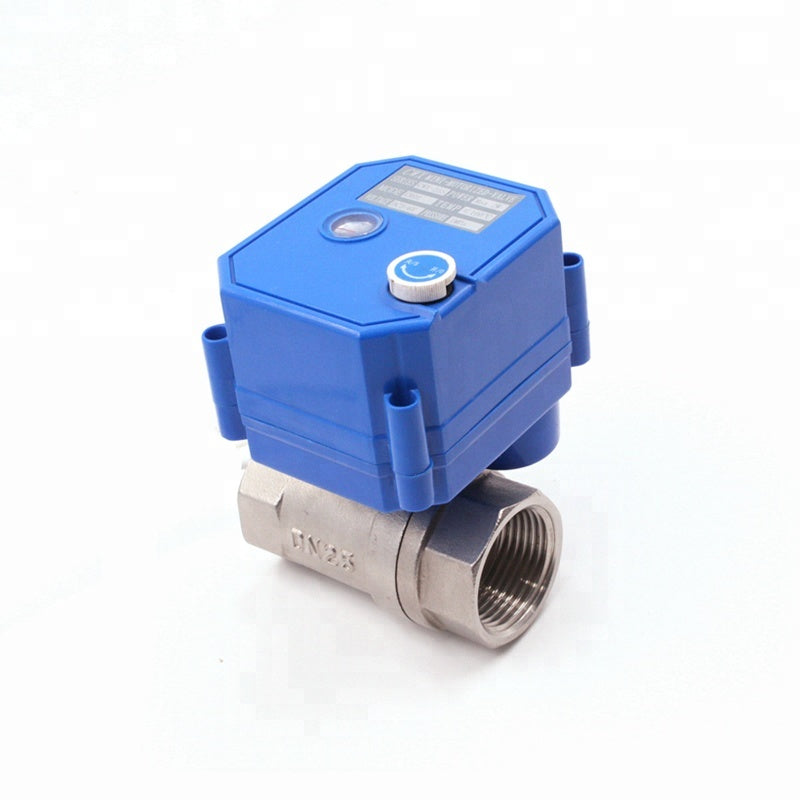

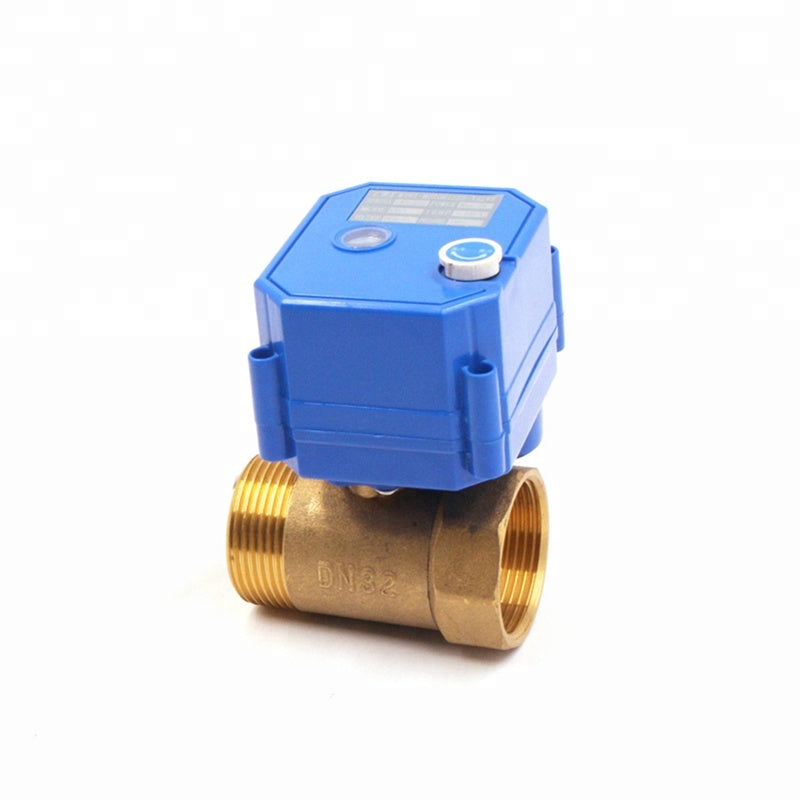

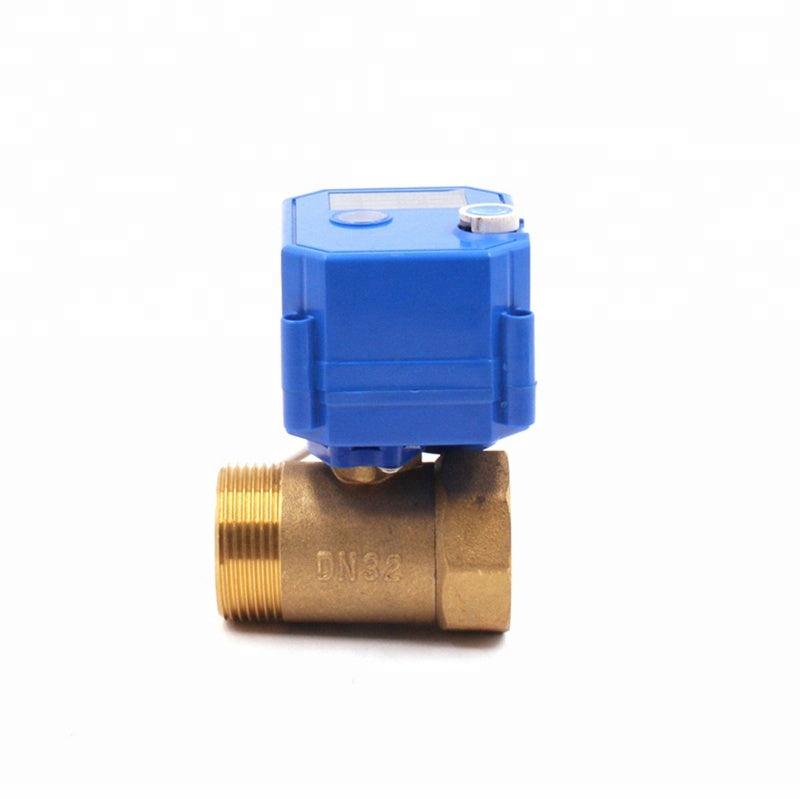

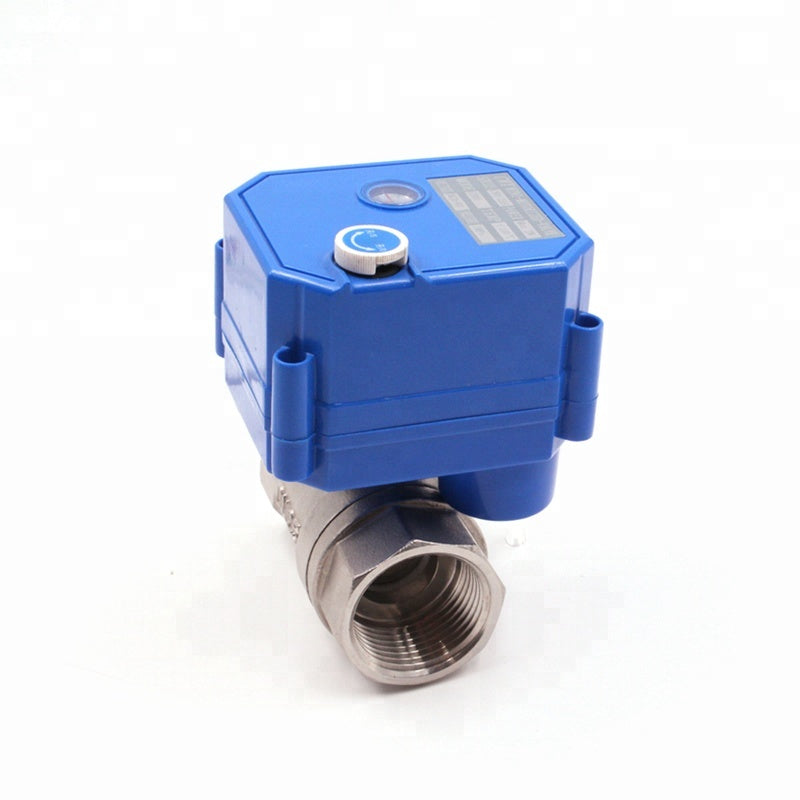

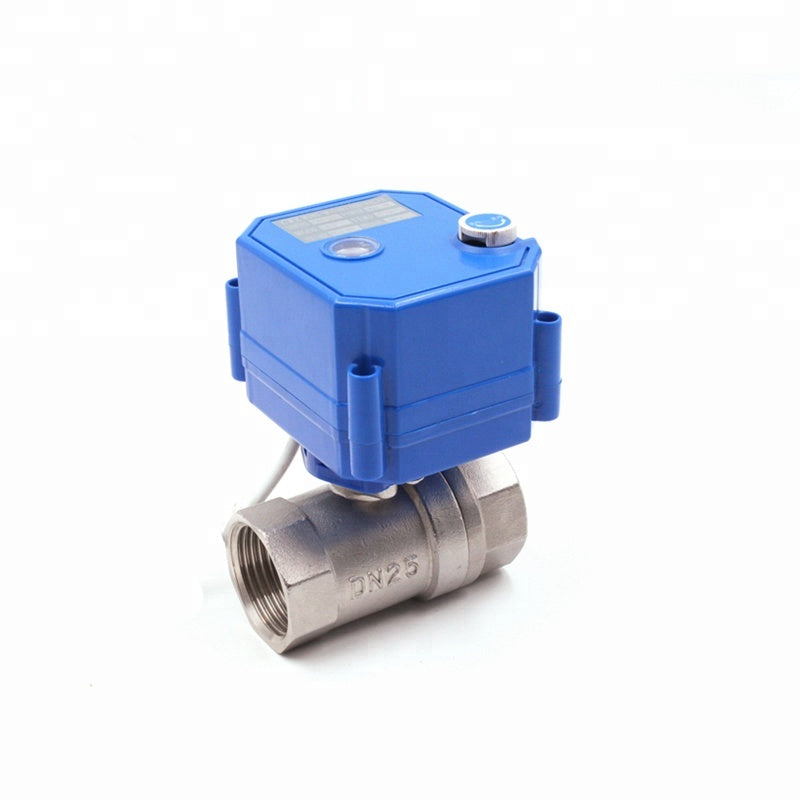

Rohs NSF61 water drinking 2 way CWX-15N mini electric actuator motor operated ball valve
Regular price
Rs. 9,999.00
Rs. 21,495.00
|
Save
Rs. 11,496.00
(53% off)
Shipping on all orders
You have got DOOR DELIVERY SHIPPING
Estimated Delivery Between and .
Type :
Collections : Bike | Car | Automobile | Accessories, Tech Accessories,
PRODUCT DETAILS
1.POM material gear box ;
2.Manual Override, the valve can be operated when power failure;
3.Min dimension and position indicator
4.good sealing performance, IP65 enclosure
1.Heat energy meters, fire work, save water system
2.Auto control system, industrial mini auto control equipment
3.Water saving equipment, drinking water equipment
4.Air-conditioning fan coin(HVAC)
| Product model | Rated voltage | Working current | Output torque | Open/close time | Control mode |
| CWX-25S |
DC3-6V DC12V A/DC9-24V AC220V AC85-265V |
Max80mA | Max2.5NM | <8s | CR01 CR02 CR03 CR04 CR05 |
| Working pressure | Power | Medium temperature | Size | IP Gard | Special function |
| Max1.0Mpa | <2W | 0-90℃ | DN8-32 Two-way DN8-20 Three-way | IP65 | Wireless switch control (within 200 meters) |
| Brass | Connection | Sizes | d | L | H |
| Both female thread Full-port | DN8 | 8 | 46 | 31 | |
| DN15 | 15 | 57 | 38 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 23.5 | 72 | 49 | ||
| Both female thread Reduce-port | DN10 | 8 | 46 | 31 | |
| DN20 | 15 | 66 | 38 | ||
| DN25 | 20 | 72 | 47 | ||
| DN32 | 25 | 86 | 60 | ||
| Vertica Three-Way |
DN15 | 12 | 63 | 49 | |
| DN20 | 15 | 66 | 53 | ||
| Female-male thread |
DN15 | 15 | 63 | 38 | |
| DN20 | 15 | 66 | 38 | ||
| Both male thread | DN15 | 15 | 68 | 38 | |
| SS304/316 | Both female thread | DN8 | 8 | 46 | 31 |
| DN10 | 8 | 46 | 30.5 | ||
| DN15 | 15 | 55 | 38 | ||
| DN20 | 15 | 63 | 39 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 20 | 75 | 47 | ||
| DN25 | 25 | 72 | 49 |
