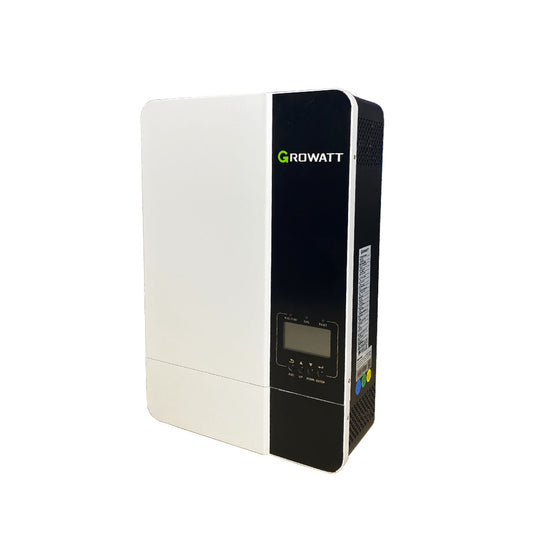

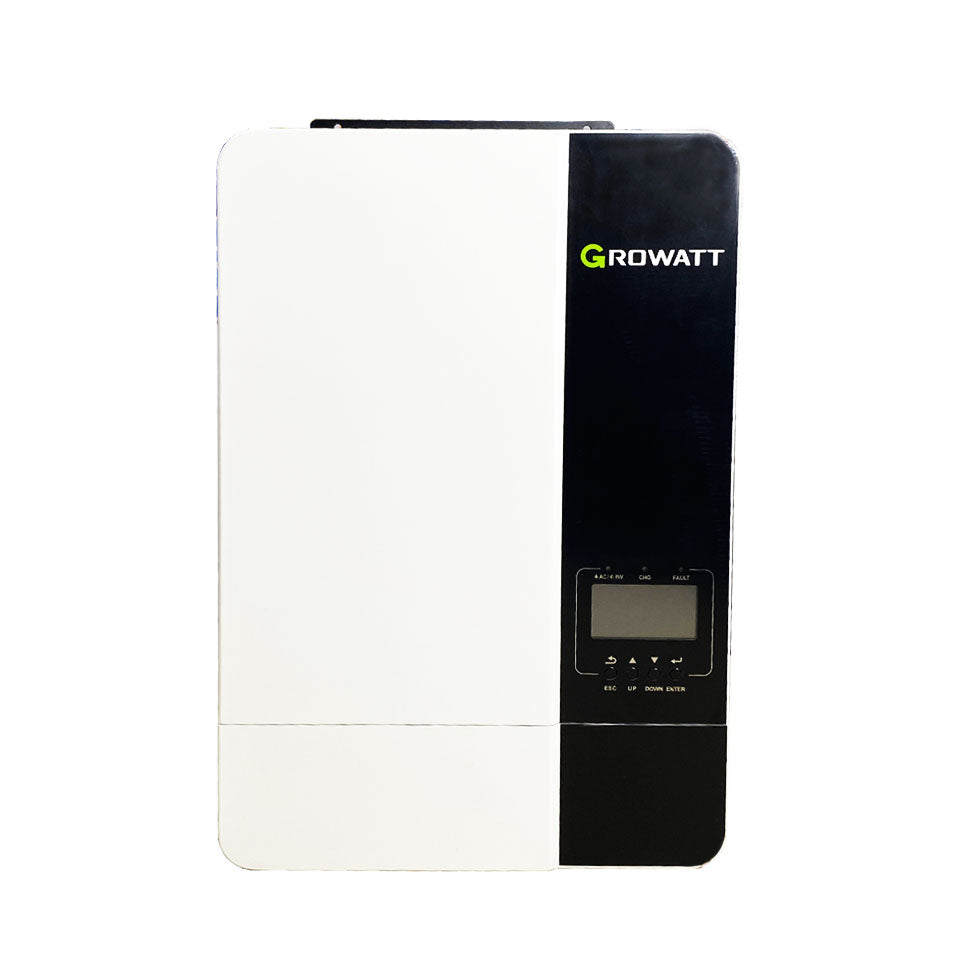

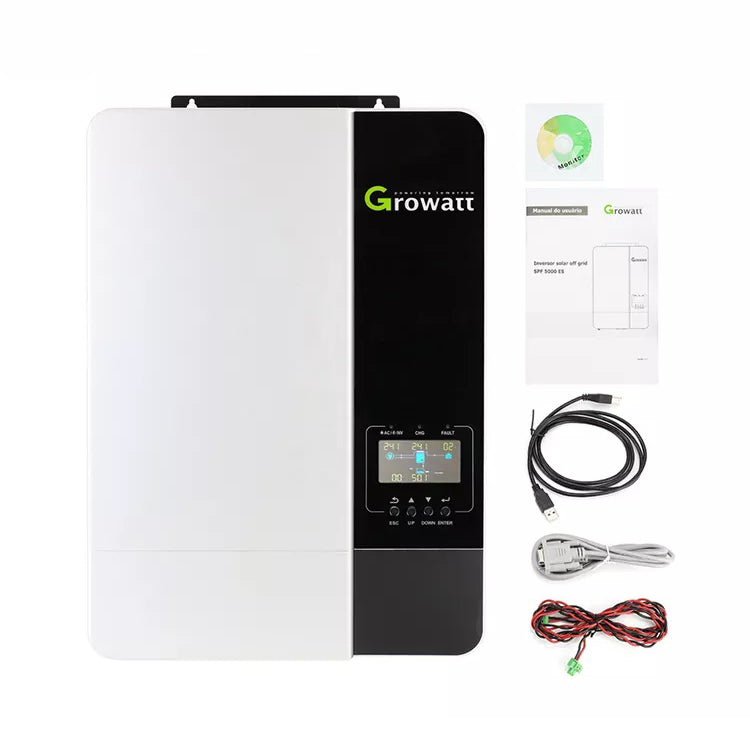

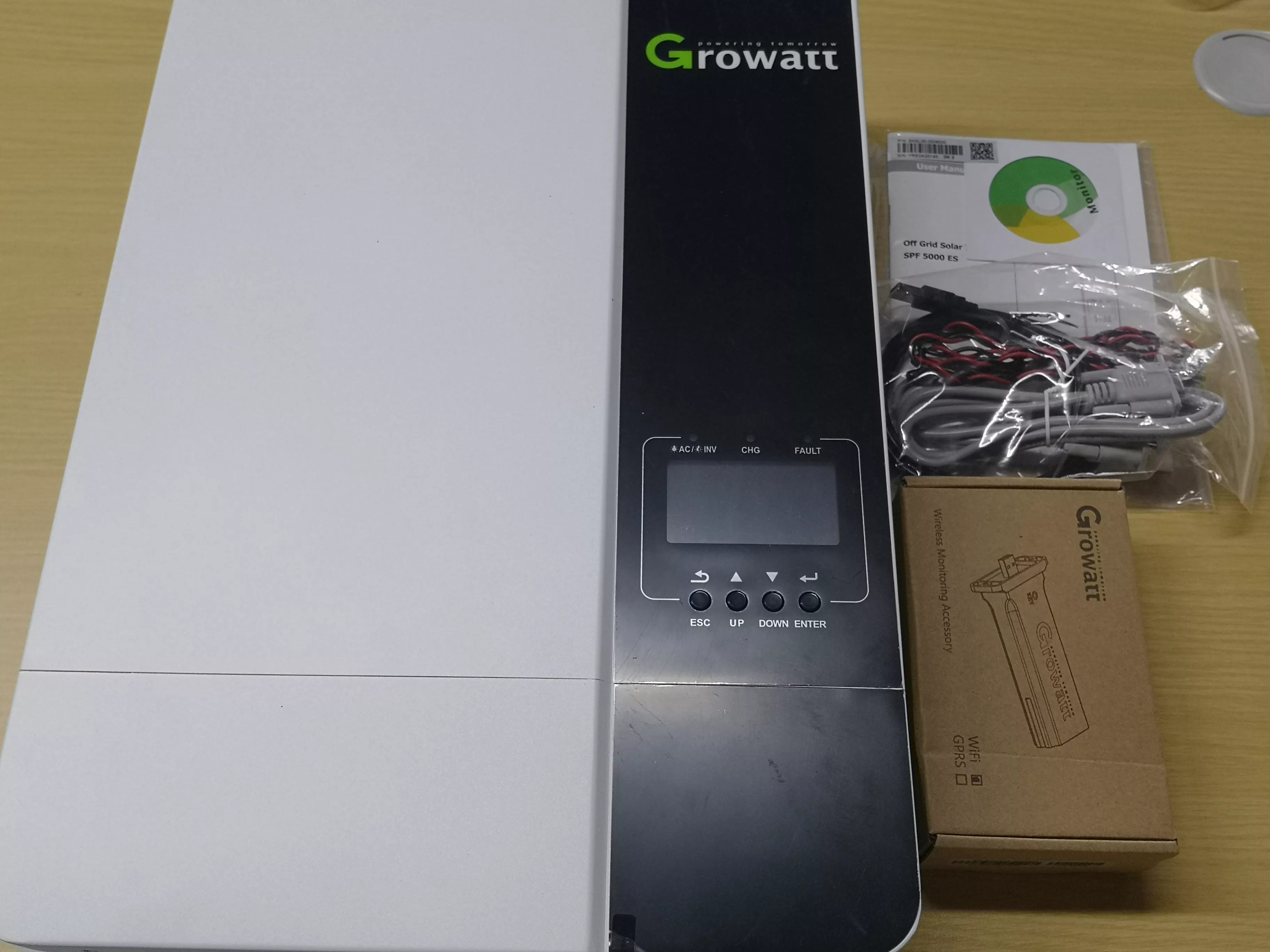

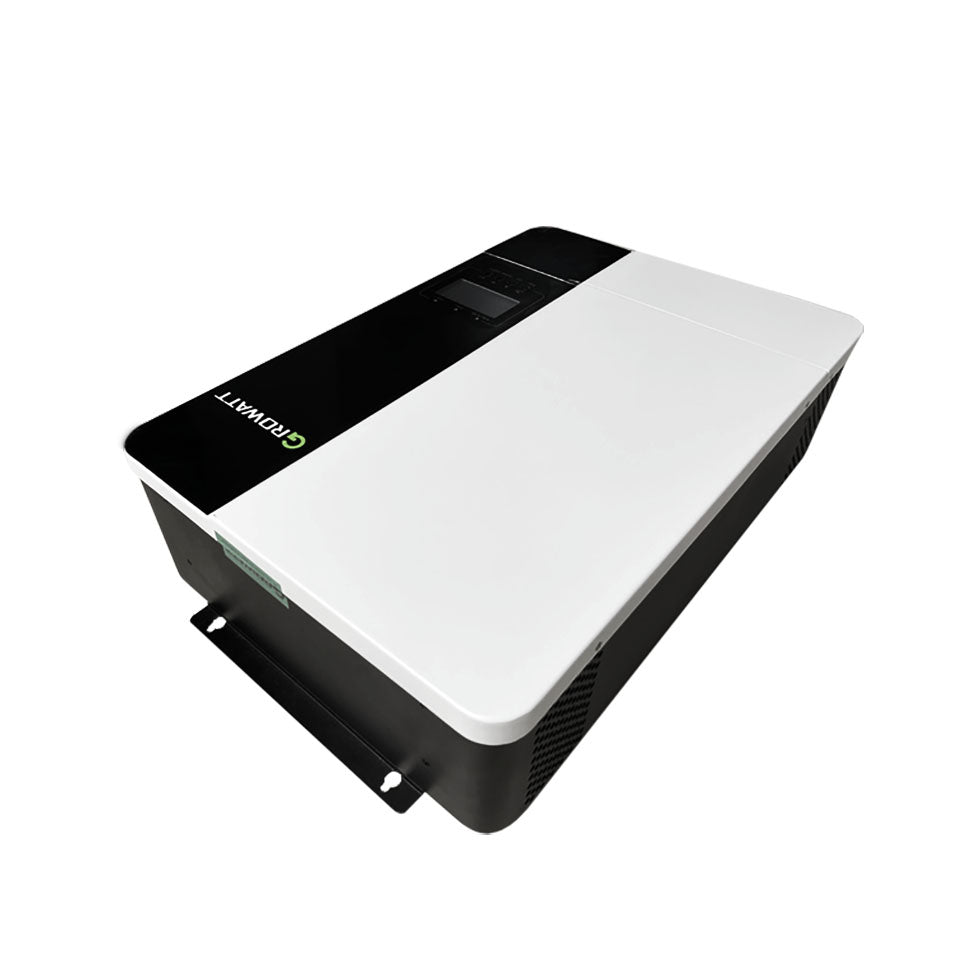

Growatt SPF 5000 ES 3kw 5kw 48v Battery Storage 230v 5000w mppt Solar Hybrid Off Grid Inverter
Regular price
Rs. 625,501.29
Rs. 780,984.49
|
Save
Rs. 155,483.20
(19% off)
Shipping on all orders
You have got DOOR DELIVERY SHIPPING
Estimated Delivery Between and .
Type :
Collections : Bike | Car | Automobile | Accessories, Tech Accessories,
PRODUCT DETAILS
Growatt SPF 5000 ES 3kw 5kw 48v Battery Storage 230v 5000w mppt Solar Hybrid Off Grid Inverter
Why choose us?
Why choose us?
Growatt SPF 5000 ES 3kw 5kw 48v Battery Storage 230v 5000w mppt Solar Hybrid Off Grid Inverter
Why choose us?
Growatt SPF 5000 ES 3kw 5kw 48v Battery Storage 230v 5000w mppt Solar Hybrid Off Grid Inverter
Growatt SPF 5000 ES 3kw 5kw 48v Battery Storage 230v 5000w mppt Solar Hybrid Off Grid Inverter
Growatt SPF 5000 ES 3kw 5kw 48v Battery Storage 230v 5000w mppt Solar Hybrid Off Grid Inverter
| Datasheet | SPF 3500 ES | SPF 5000 ES |
| Battery Voltage | 48VDC | |
| Battery Type | Lithium/Lead-acid | |
| INVERTER OUTPUT | ||
| Rated Power | 3500VA/ 3500W | 5000VA/ 5000W |
| Parallel Capability | Yes, 6 units maximum | |
| AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz | |
| Surge Power | 7000VA | 10000VA |
| Efficiency (Peak) | 93% | |
| Waveform | Pure sine wave | |
| Transfer Time | 10ms typical, 20ms Max | |
| SOLAR CHARGER | ||
| Maximum PV Array Power | 4500W | 6000W |
| MPPT Range @ Operating Voltage | 120VDC ~ 430VDC | |
| Number of Independent MPP Trackers/ Strings Per MPP Tracker | 1/1 | |
| Maximum PV Array Open Circuit Voltage | 450VDC | |
| Maximum Solar Charge Current | 80A | 100A |
| AC CHARGER | ||
| Charge Current | 60A | 80A |
| AC Input Voltage | 230 VAC | |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |
| Frequency Range | 50Hz/60Hz (Auto sensing) | |
| PHYSICAL | ||
| Protection Degree IP20 | ||
| Dimension (W/H/D) | 330/485/135mm | 330/485/135mm |
| Net Weight | 11.5kgs | 12kgs |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Altitude | <2000m | |
| Operating Temperature | 0°C - 55°C | |
| Storage Temperature | -15°C - 60°C | |
Growatt SPF 5000 ES 3kw 5kw 48v Battery Storage 230v 5000w mppt Solar Hybrid Off Grid Inverter
