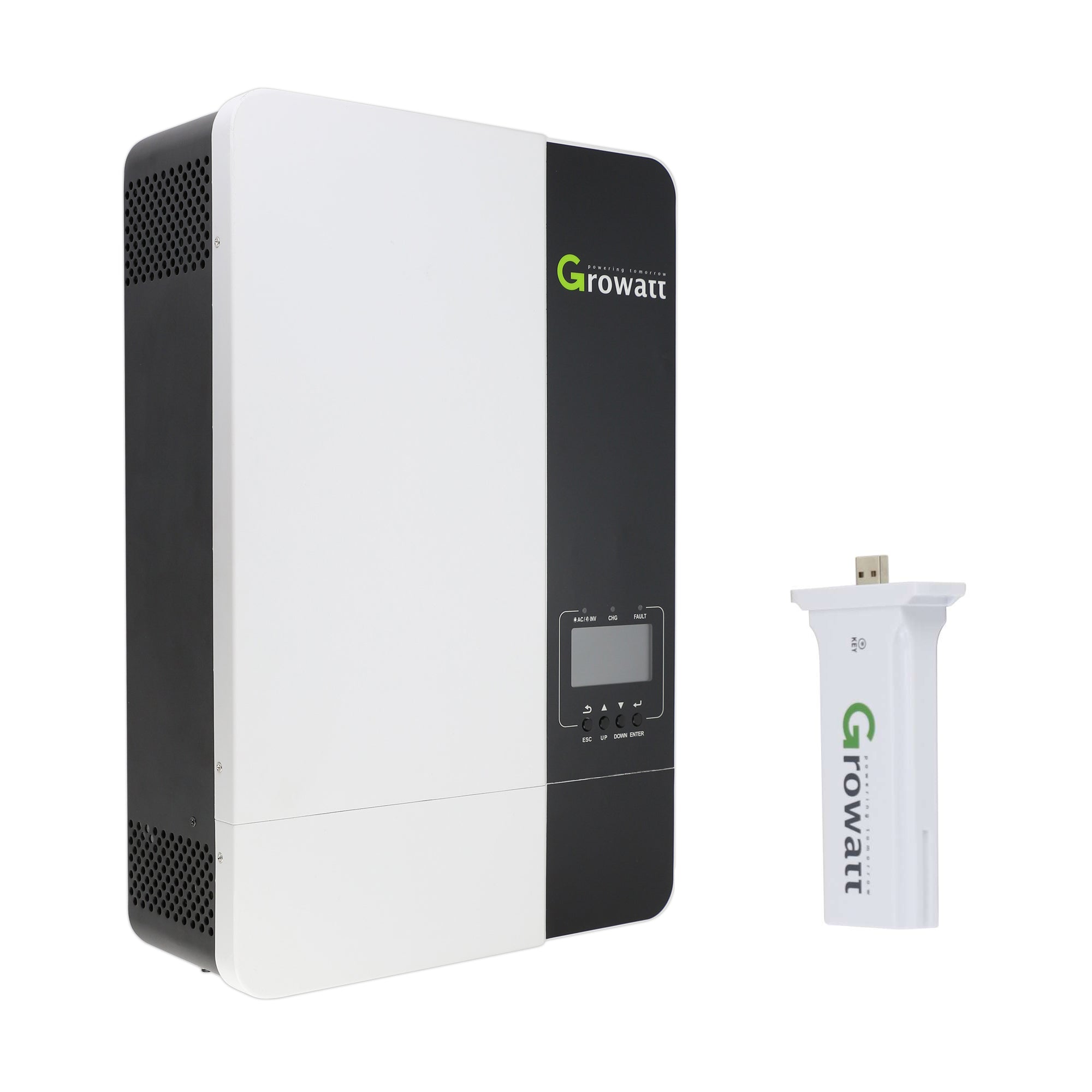

In Stock!!! Growatt SPF 5000 ES 5KW 5KVA 3.5KW MPPT Single-Phase Converter Wifi Monitoring Off-Grid Solar Inverter NO Battery
Bike | Car | Automobile | Accessories Tech Accessories
169887214013089_399171424
20 In Stock Sold Out 20 19 19
Share
The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid. Please consult with your system integrator for other possible system architectures depending on your requirements. The WiFi / GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.
*MPPT ranges 120V~430V, 450Voc
*High frequency inverter with small size and light weight
*Pure sine wave AC output
*Solar and utility grid can power loads at the same time
*With CAN/RS485 for BMS communication
*With the ability to work without battery
*Parallel operation up to 6 unit (only with battery connected)
*WIFI/ GPRS remote monitoring (optional)
|
INVERTER MODEL
|
SPF 3500 ES
|
SPF 5000 ES
|
|
|
Input Voltage Waveform
|
Sinusoidal (utility or generator)
|
||
|
Nominal Input Voltage
|
230Vac
|
||
|
Low Loss Voltage
|
170Vac±7V (UPS); 90Vac±7V (Appliances)
|
||
|
Low Loss Return Voltage
|
180Vac±7V (UPS); 100Vac±7V (Appliances)
|
||
|
High Loss Voltage
|
280Vac±7V
|
||
|
High Loss Return Voltage
|
270Vac±7V
|
||
|
Max AC Input Voltage
|
300Vac
|
||
|
Nominal Input Frequency
|
50Hz / 60Hz (Auto detection)
|
||
|
Low Loss Frequency
|
40±1Hz
|
||
|
Low Loss Return Frequency
|
42±1Hz
|
||
|
High Loss Frequency
|
65±1Hz
|
||
|
High Loss Return Frequency
|
63±1Hz
|
||
|
Output Short Circuit Protection
|
Circuit Breaker
|
||
|
Efficiency (Line Mode)
|
>95% ( Rated R load, battery full charged )
|
||
|
Transfer Time
|
10ms typical, 20ms Max@ Single
<30ms @ Parallel |
||
|
Output power derating
|
When AC input voltage drops to 170V, the output power will be derated.
|
||
