JZ Power Smart Inverter 5.5KW 5.5KVA MPPT 80A 500VDC PV Input 230VAC 48V with/no Parallel 5500W to 3 Phase Hybrid Solar Inverter
Bike | Car | Automobile | Accessories Tech Accessories
169887211013089_80071678
9998 In Stock Sold Out 9998 9997 9999
Share
user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable
input voltage based on different applications.
Features
1, Pure sine wave inverter
2, Inverter running without battery
3, Built-in MPPT solar controller
4, Configurable input voltage range for home appliances and personal computers via LCD setting
5, Configurable battery charging current based on applications via LCD setting
6, Configurable AC/Solar Charger priority via LCD setting
7, Compatible to mains voltage or generator power
8, Auto restart while AC is recovering
9, Overload/ Over temperature/ short circuit protection
10, Smart battery charger design for optimized battery performance
11, Cold start function
|
INVERTER MODEL
|
3.5KVA
|
3.5KVA
|
5.5KVA
|
|||
|
Input Voltage Waveform
|
Sinusoidal (utility or generator)
|
|||||
|
Nominal Input Voltage
|
230Vac
|
|||||
|
Low Loss Voltage
|
170Vac±7V (UPS); 90Vac±7V (Appliances)
|
|||||
|
Low Loss Return Voltage
|
180Vac±7V (UPS); 100Vac±7V (Appliances)
|
|||||
|
High Loss Voltage
|
280Vac±7V
|
|||||
|
High Loss Return Voltage
|
270Vac±7V
|
|||||
|
Max AC Input Voltage
|
300Vac
|
|||||
|
Nominal Input Frequency
|
50Hz / 60Hz (Auto detection)
|
|||||
|
Low Loss Frequency
|
40±1Hz
|
|||||
|
Low Loss Return Frequency
|
42±1Hz
|
|||||
|
High Loss Frequency
|
65±1Hz
|
|||||
|
High Loss Return Frequency
|
63±1Hz
|
|||||
|
Output Short Circuit Protection
|
Line mode: Circuit Breaker
|
|||||
|
Battery mode: Electronic Circuits
|
||||||
|
Efficiency (Line Mode)
|
>95% ( Rated R load, battery full charged )
|
|||||
|
Transfer Time
|
10ms typical (UPS); 20ms typical (Appliances)
|
|||||
|
Inverter Mode Specifications
|
||||||
|
Rated Output Power
|
3.5KVA/3.5KW
|
3.5KVA/3.5KW
|
5.5KVA/5.5KW
|
|||
|
Output Voltage Waveform
|
Pure Sine Wave
|
|||||
|
Output Voltage Regulation
|
230Vac±5%
|
|||||
|
Output Frequency
|
60Hz or 50Hz
|
|||||
|
Peak Efficiency
|
94%
|
|||||
|
Overload Protection
|
5s@≥140% load; 10s@100%~140% load
|
|||||
|
Surge Capacity
|
2* rated power for 5 seconds
|
|||||
|
Nominal DC Input Voltage
|
24Vdc
|
48Vdc
|
||||
|
Cold Start Voltage
|
23.0Vdc
|
46.0Vdc
|
||||
|
Utility Charging Mode
|
||||||
|
AC Charging Current (Max)
|
100Amp
|
100Amp
|
80Amp
|
|||
|
(@ VI/P=230Vac)
|
(@ VI/P=230Vac)
|
|||||
|
Overcharge Protection
|
33Vdc
|
63Vdc
|
||||
|
Charging Algorithm
|
3-Step
|
|||||
|
Solar Input
|
||||||
|
Rated Power
|
4000W
|
4000W
|
5500W
|
|||
|

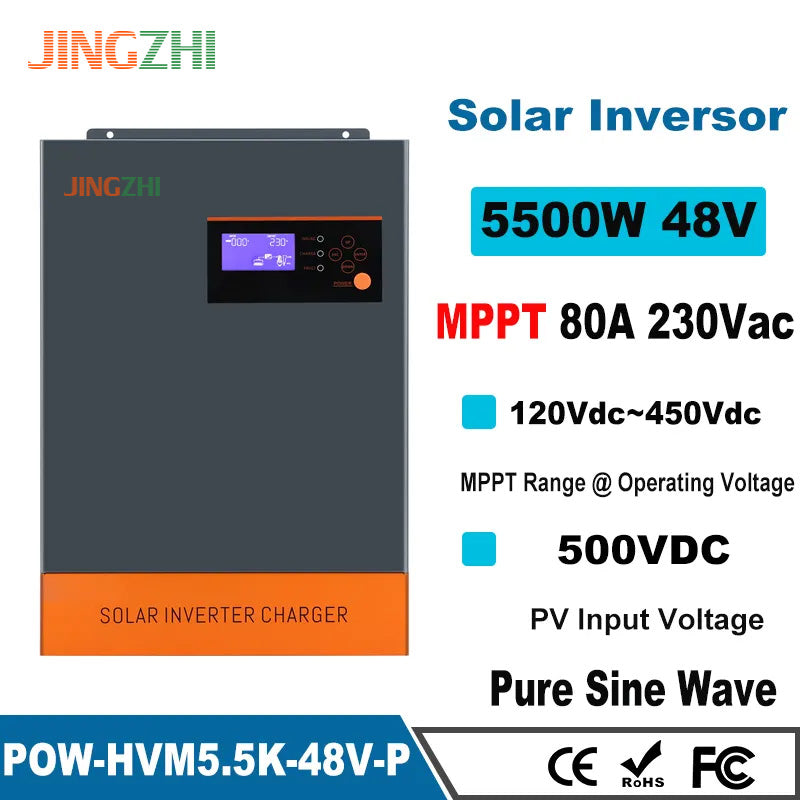

Max. PV Array Open Circuit Voltage
|
500Vdc
|
|||||
|
PV Array MPPT Voltage Range
|
120Vdc~450Vdc
|
|||||
|
Max. Input Current
|
15A
|
15A
|
18A
|
|||
|
General Specifications
|
||||||
|
Safety Certification
|
CE
|
|||||
|
Operating Temperature Range
|
-10°C to 55°C
|
|||||
|
Storage temperature
|
-15°C~ 60°C
|
|||||
|
Humidity
|
5% to 95% Relative Humidity (Non-condensing)
|
|||||
|

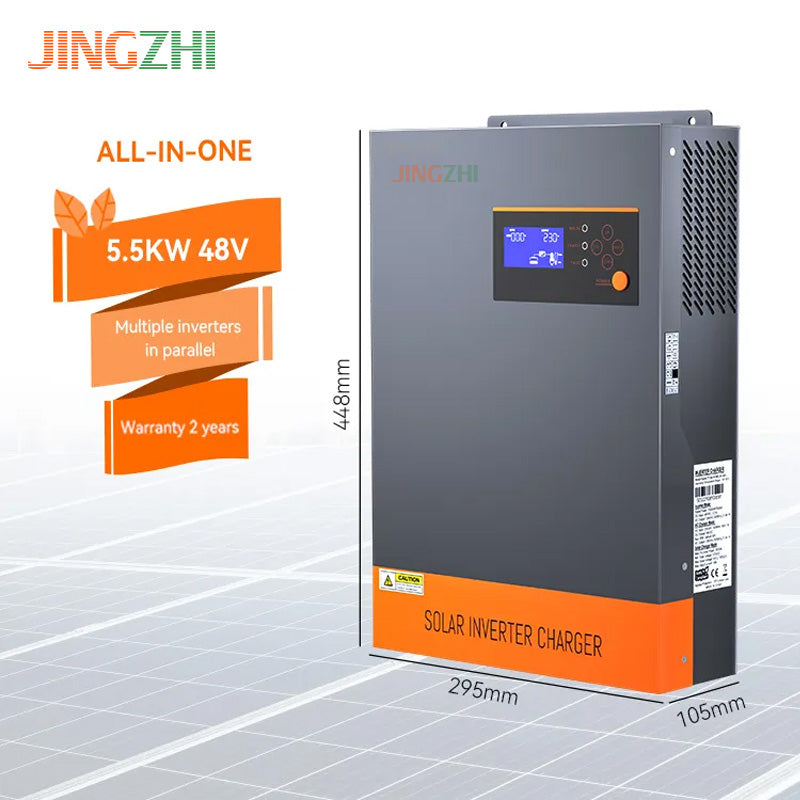

Dimension (D*W*H), mm
|
448x295x105
|
|||||
|
Net Weight, kg
|
8.2
|
8.2
|
9.9
|
|||
