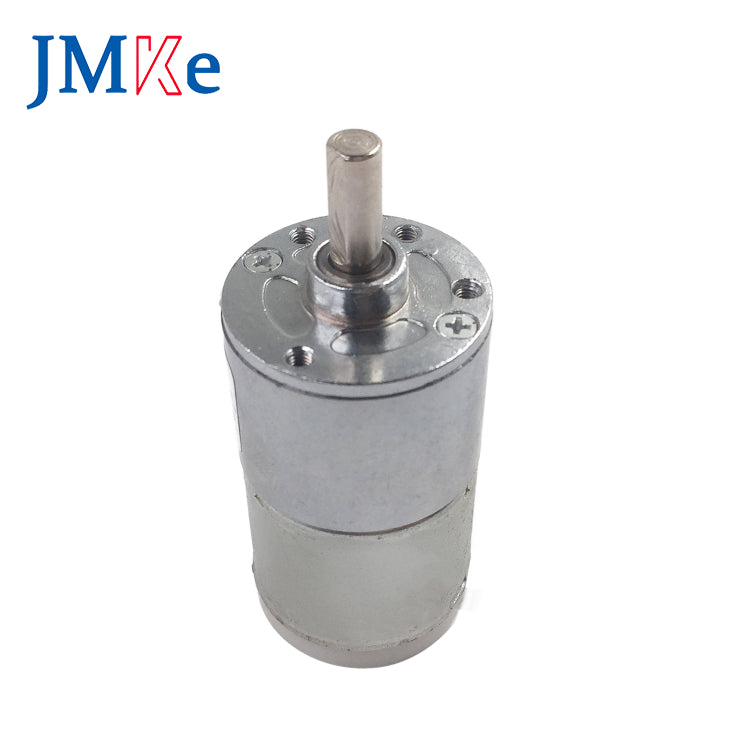

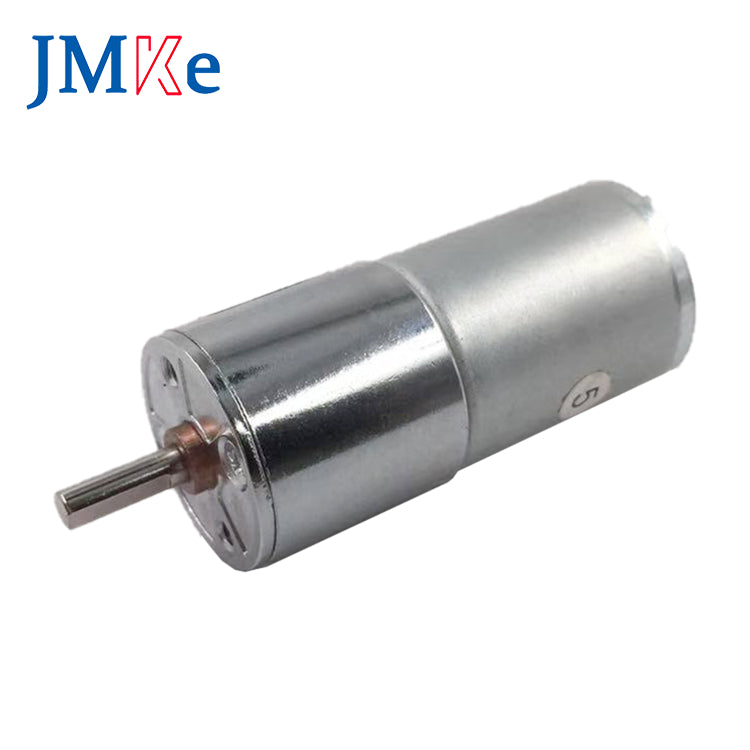

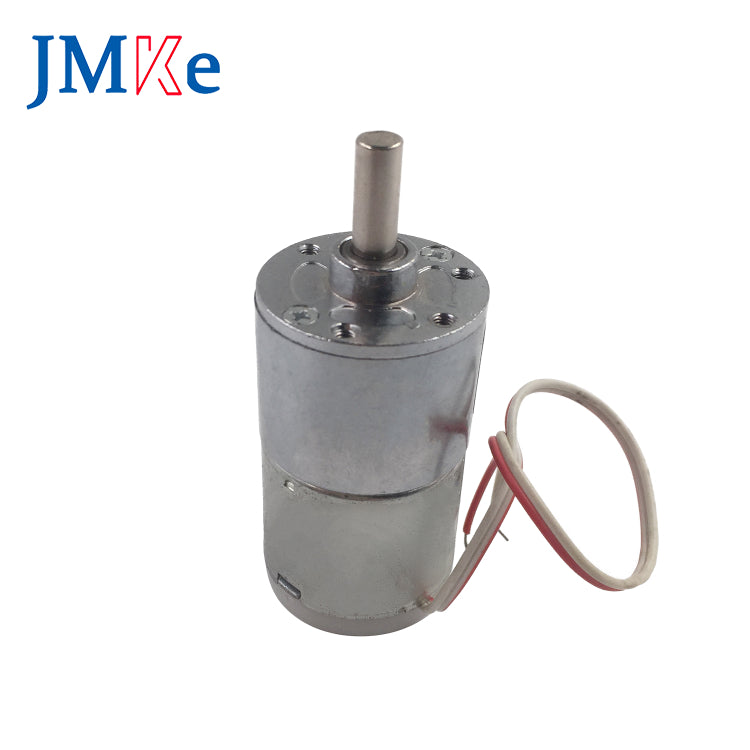

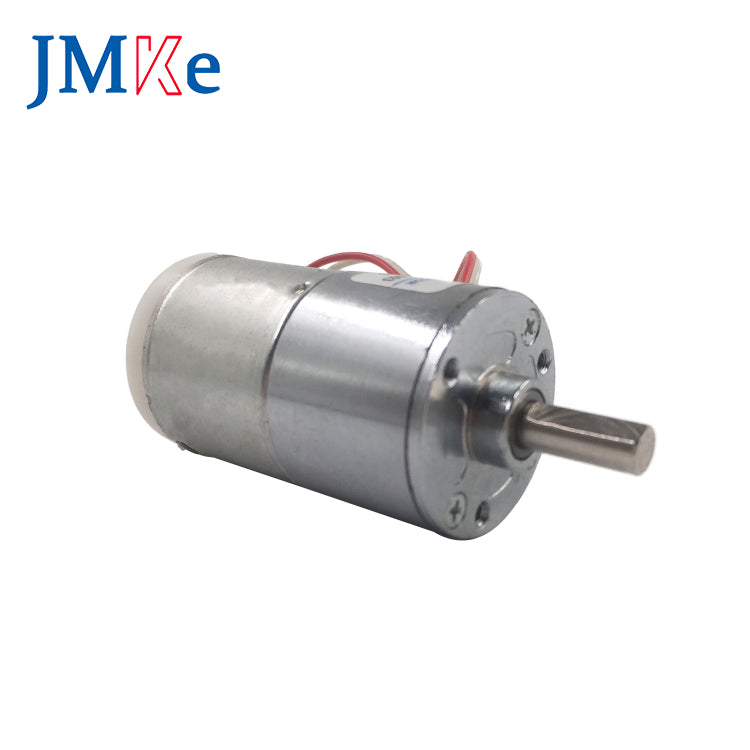

JMKE 32mm spur dc gear motor pmdc mini gear motor
Regular price
Rs. 2,938.04
Rs. 4,151.32
|
Save
Rs. 1,213.28
(29% off)
Shipping on all orders
You have got DOOR DELIVERY SHIPPING
Estimated Delivery Between and .
Type :
Collections : Bike | Car | Automobile | Accessories, Tech Accessories,
PRODUCT DETAILS
JMKE 32mm spur dc gear motor pmdc mini gear motor
Micro gear motor with low noise and high torque
Solidly constructed and ready to install in numerous applications.
| Motor |
Speed ratio |
1/5.8 |
1/13.8 |
1/33 |
1/79.6 |
1/191 |
1/363 |
1/458 |
1/1100 |
| PMDC-32ZY25 |
No Load (r/min) |
660 |
275 |
115 |
48 |
20 |
11 |
8 |
4 |
| Load (r/min) |
565 |
240 |
100 |
41 |
17 |
9 |
7 |
4 |
|
| Rated Torque(kgf.cm) |
0.1 |
0.25 |
0.5 |
1.1 |
2.5 |
4.5 |
5 |
6 |
|
| PMDC-32ZY25 |
No Load (r/min) |
690 |
290 |
120 |
50 |
21 |
11 |
9 |
4 |
| Load (r/min) |
600 |
250 |
105 |
44 |
18 |
10 |
8 |
4 |
|
| Rated Torque(kgf.cm) |
0.1 |
0.25 |
0.5 |
1.1 |
2.5 |
4.5 |
5 |
6 |
Application:
Typical applications include factory automation machinery, labeling machinery, machine tools, material handling machinery, packaging machinery, printing machinery, robotics, x-y tables, textile machinery, applications which require smooth operation or applications which have medium to high reflected load inertias.

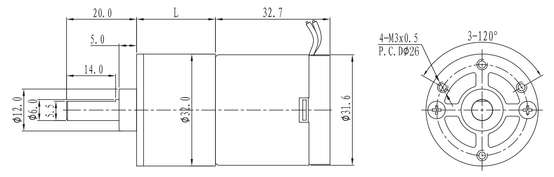

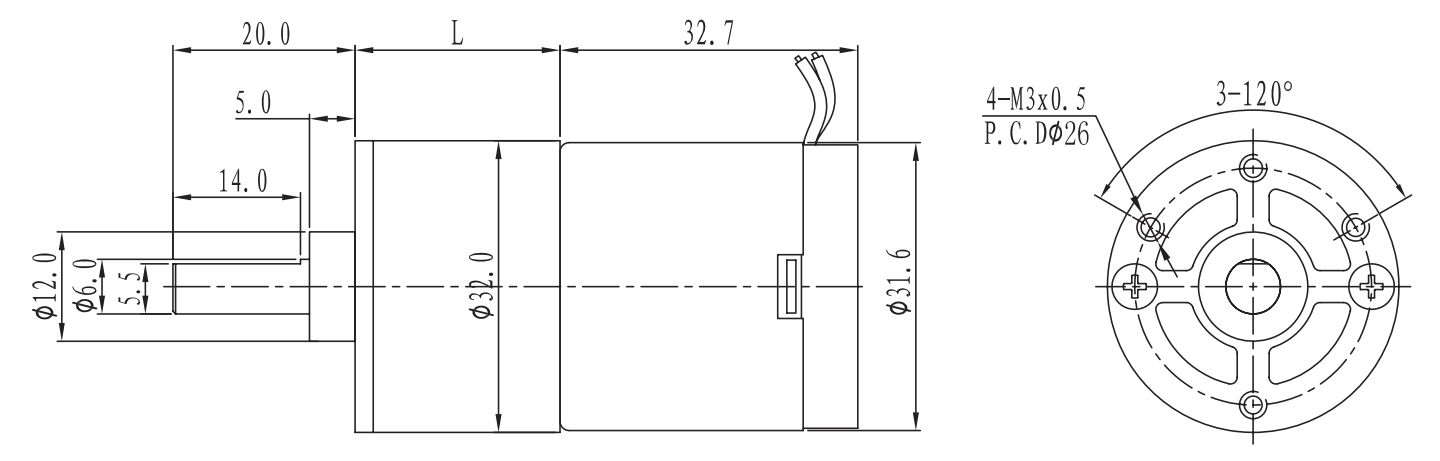

Φ= 32mm
Installation Dimension:M4, Φ26mm
Central Output Shaft, Length=15mm
| Speed ratio |
L |
Deceleration level |
Rated torque |
|
| mm |
mN.m |
kgf.cm |
||
| 1/5.8 |
22.5 |
2 |
98 |
1 |
| 1/13.8 |
22.5 |
3 |
98 |
1 |
| 1/33 |
22.5 |
4 |
196 |
2 |
| 1/79.6~1/109.7 |
22.5 |
5 |
294 |
4 |
| 1/191~1/363 |
24.5 |
6 |
588 |
6 |
| 1/458 |
26.5 |
7 |
588 |
6 |
| 1/1100 |
30 |
8 |
588 |
6 |
SPEED ADJUSTABLE - The speed can be adjusted by dc motor speed controller.
If you need a lower or higher speed motor, please choose the right rpm to meet your needs. This motor is reversible so that you can switch positive and negative.
Please offer below information
| Voltage |
Current |
Diameter of motor |
Brushed/Brushless |
Torque |
Output Speed |
| (V) |
(Am) |
(mm) |
|
(N.m) |
(r/min) |
 |
 |
 |
 |
