Factory Price 2L Planetary Ball Mill Soil Grinder Ball Mill Grinding Machine

Write a review

Save -49% Rs. 741,728.48 ~~Rs. 1,442,835.26~~

Brand : Shanvis

Collection : Food Products

SKU : 6655909013089_109909954

Availability : -1 In Stock Sold Out -1

Model Number SQM-2L

Translation missing: en.products.product.product_variants

Quantity

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

FREE SHIPPING

WORLDWIDE

BIG SAVING ON

WEEKENDS

24H SUPPORT

Description
Shipping

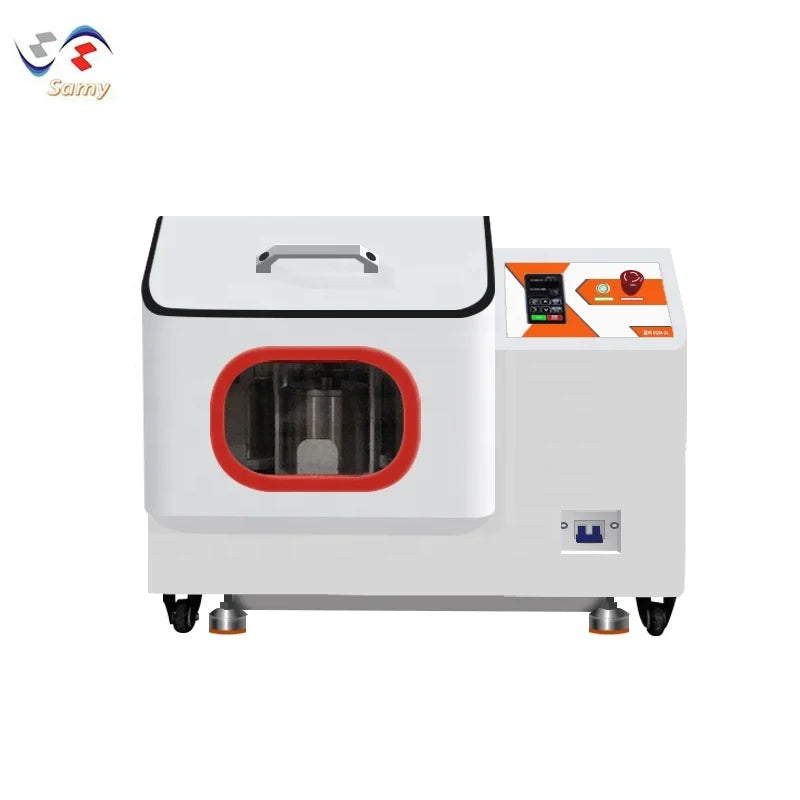

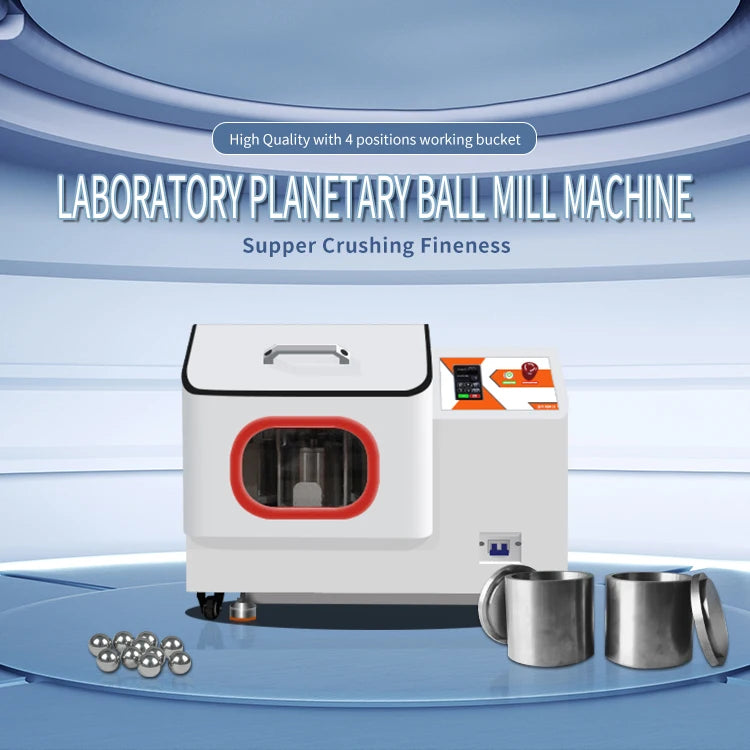

Factory Price 2L Planetary Ball Mill Soil Grinder Ball Mill Grinding Machine

Technical Parameters

Name	SQM-2L Laboratory Planetary Ball Mill
Capacity	500ml * 4 = 2000ml = 2L
Style	Planetary
Grinding ways	Dry grinding /wet grinding/vacuum grinding
Transmission mode	Gear drive
Speed control mode	Frequency conversion speed regulation
Speed rate(r/min)	2:1
Revolution speed(r/min)	30-400
Rotation speed(r/min)	60-800
Power supply	220V 50HZ
Rated power(W)	750
Run time(h)	0-9999
Feed particle size(mm)	<15mm, hard material <3mm
Grain size(μm)	1μm
Net Weight	850KG

Product Description

Introduction

SQM-2L oil-sealed planetary ball mill is an essential device for mixing, fine grinding, sample preparation, nano-material dispersion, new product development and small batch production of high-tech materials.

This product is small in size, full in function, high in efficiency and low in noise.

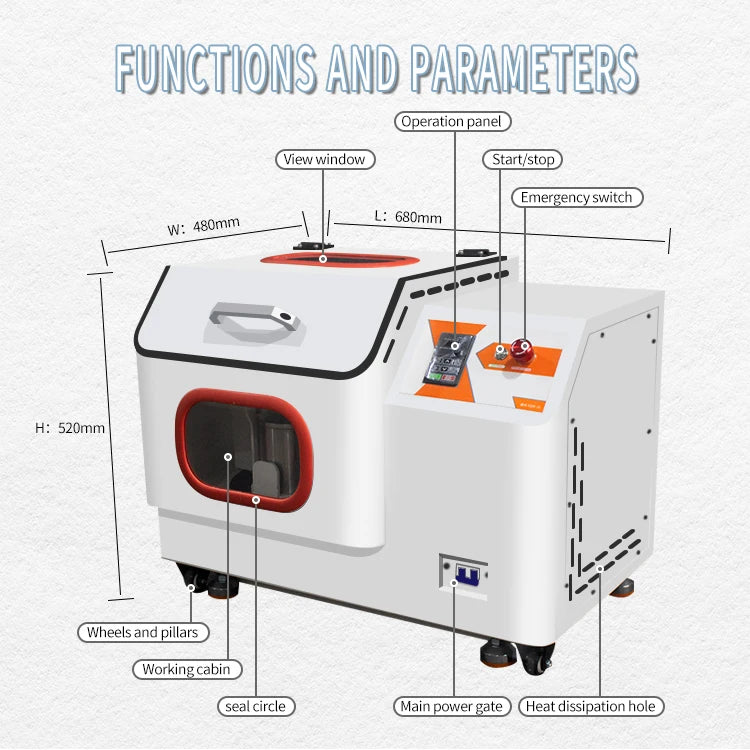

Features

1. The compression rod assembly adopts 304 stainless steel, which is anti corrosive and durable.

2. Safety door design. Open the door cover and automatically stop the machine.

3. Visible window for convenient observation of machine operation.

Working mode

Two or four ball milling tanks work at the same time maximum sample loading: 2/3 of the volume of ball milling tanks. Feed tension: soil material ≤10 mm. Other materials ≤3 mm. Discharge particle size: the minimum can reach 0.1 um (i.e. 1.0 x 10 mm-4).

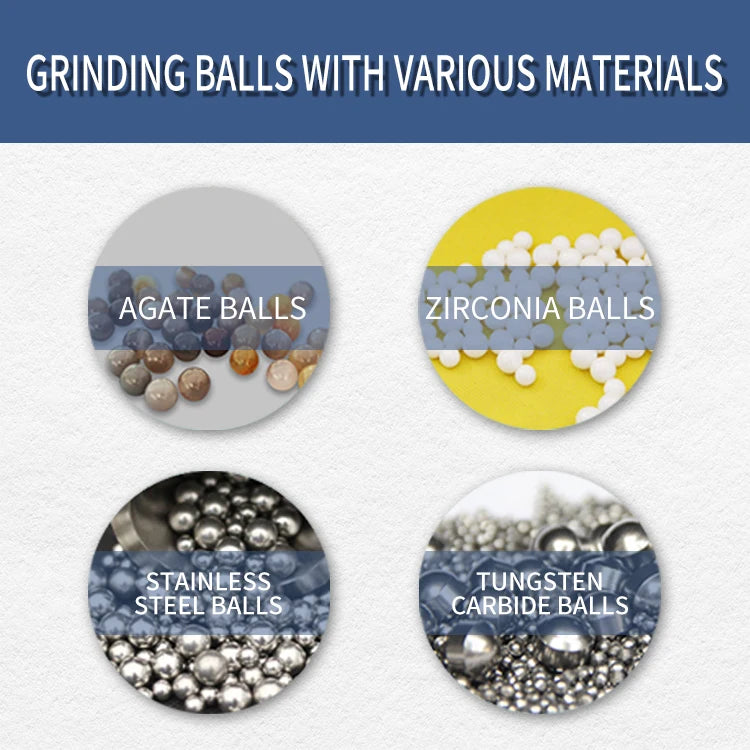

Grinding Media

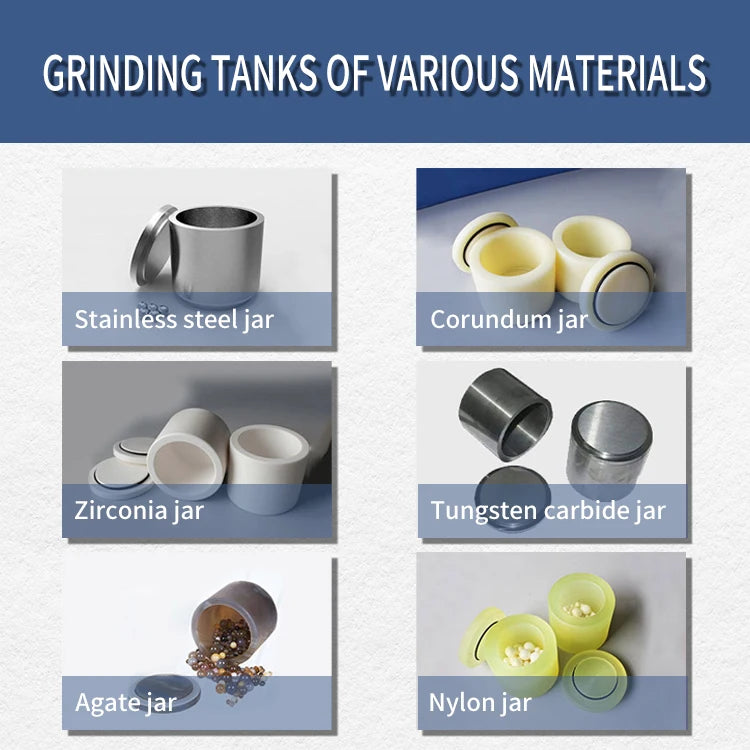

The grinding jars for your optional, we have stainless steel jars, zirconium jars, agate jars, ceramic jars, nylon jars, tungsten carbide jars, PU jars, etc. The SQM-2L planetary ball mill jars suitable for the capacity from 100 ml to 500 ml, so you can select the correct jars capacity before confirm the order.
