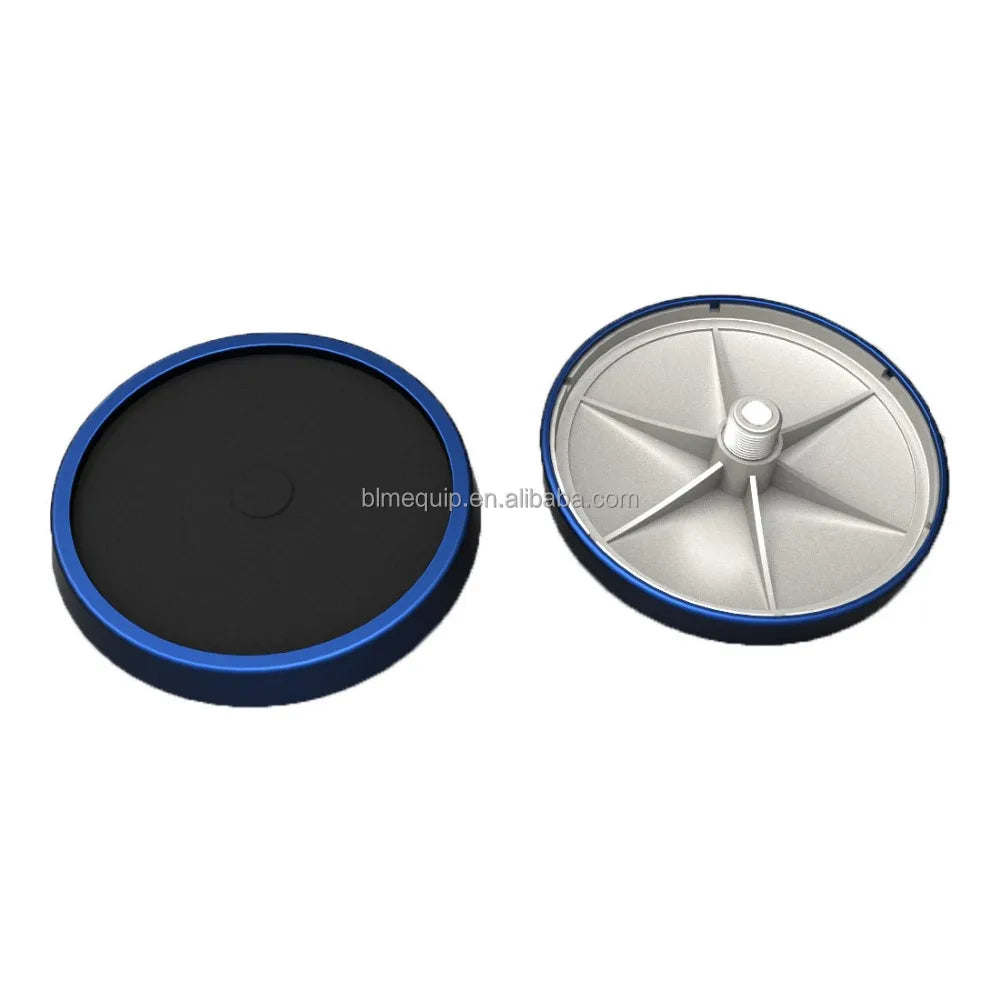

RTS Aliexpress EPDM /silicone D260 fine bubble air disc diffuser/aeration diffuer for fish tank pnd farming/water treatment
Share
Buying notes:
1.shipping:freight is available to regular place,if remote place need to add freight. After you complete the order, we will use the best express way to send the goods to you, maybe different from the express way you choose, we will confirm with you before delivery
2:When you complete the payment, please confirm the detailed delivery address, zip code, consignee number
3.1 Germany customers , if u want to ship by FedEx or TNT , please tell us your EORI number. Without them, we can only by DHL,UPS, Hong Kong post or China Post !
2:Russian customers, please tell us your full name (at least 3 words) , including first name, middle name and last name, otherwise Russian Post will not releases the parcel and return to China !
3:RUssian customers,if you need fast door to door express way ,you can only choose EMS express,also the cargos can only under 30KG,if you need other express way please kindly contact with the seller
4:Brazil customers, if you want to ship by FedEx, DHL, TNT, UPS, please tell me your tax number ( CPF or CNPJ ). Without it, customs will return goods to China
5:For customers from South America (such as Argentina, Peru, Colombia ,etc), if you have the tax number, it will reduce much trouble with customs.also we advise the South America customers Used UPS or FEDEX express way when confirm the order,please kindly check.
Technical Data
| Material | EPDM | Silicone | Tpu | ||||
| Specification | D200 | D260 | D300 | D200 | D260 | D300 | D200 |
| Outer diameter | 215 | 280 | 330 | 215 | 280 | 330 | 215 |
| Membrane Diameter | 192 | 255 | 300 | 192 | 255 | 300 | 192 |
| Memrbrane Thickness | 2±0.1 | 2±0.1 | 2±0.1 | 2±0.1 | 2±0.1 | 2±0.1 | 1.2 |
| Bubble Diameter | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 |
| Air flowRange | 1-2.5 | 1-4 | 1-6 | 1-2.5 | 1-4 | 1-6 | 1-2.5 |
| Normal Air flow | 1.8 | 2.5 | 4 | 1.8 | 2.5 | 4 | 1.8 |
| Maximum working Temperature | 80 | 80 | 80 | 100 | 100 | 100 | 100 |
Production explain

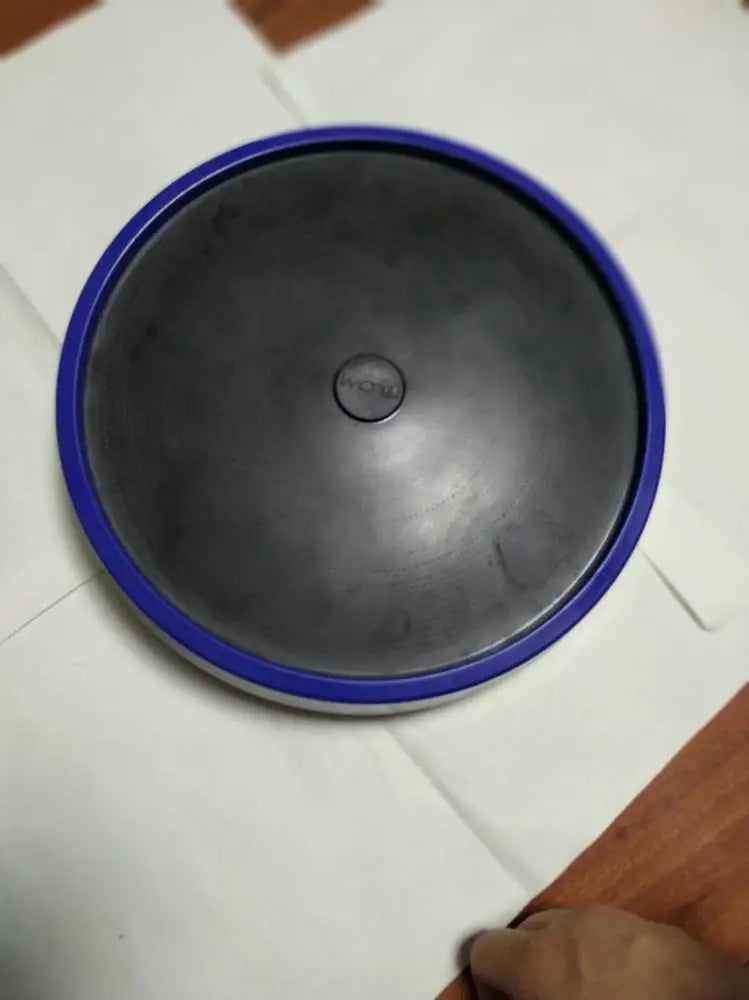

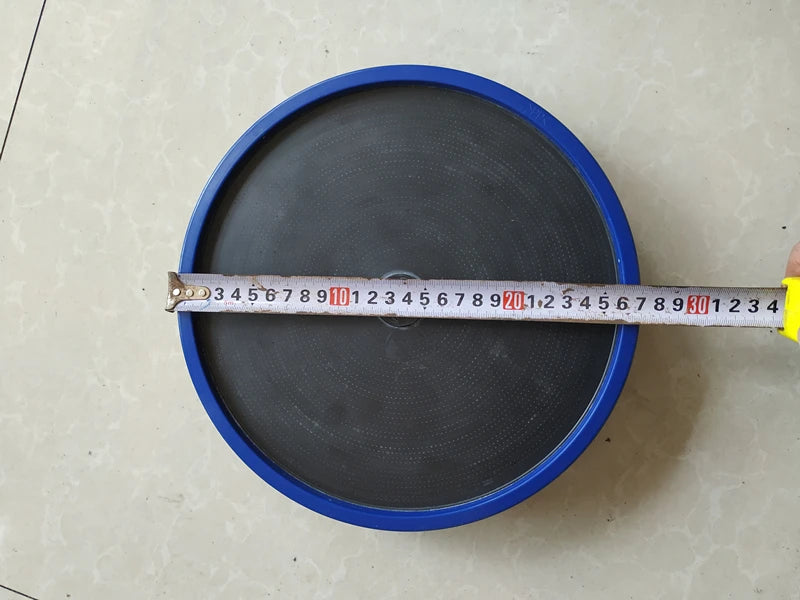

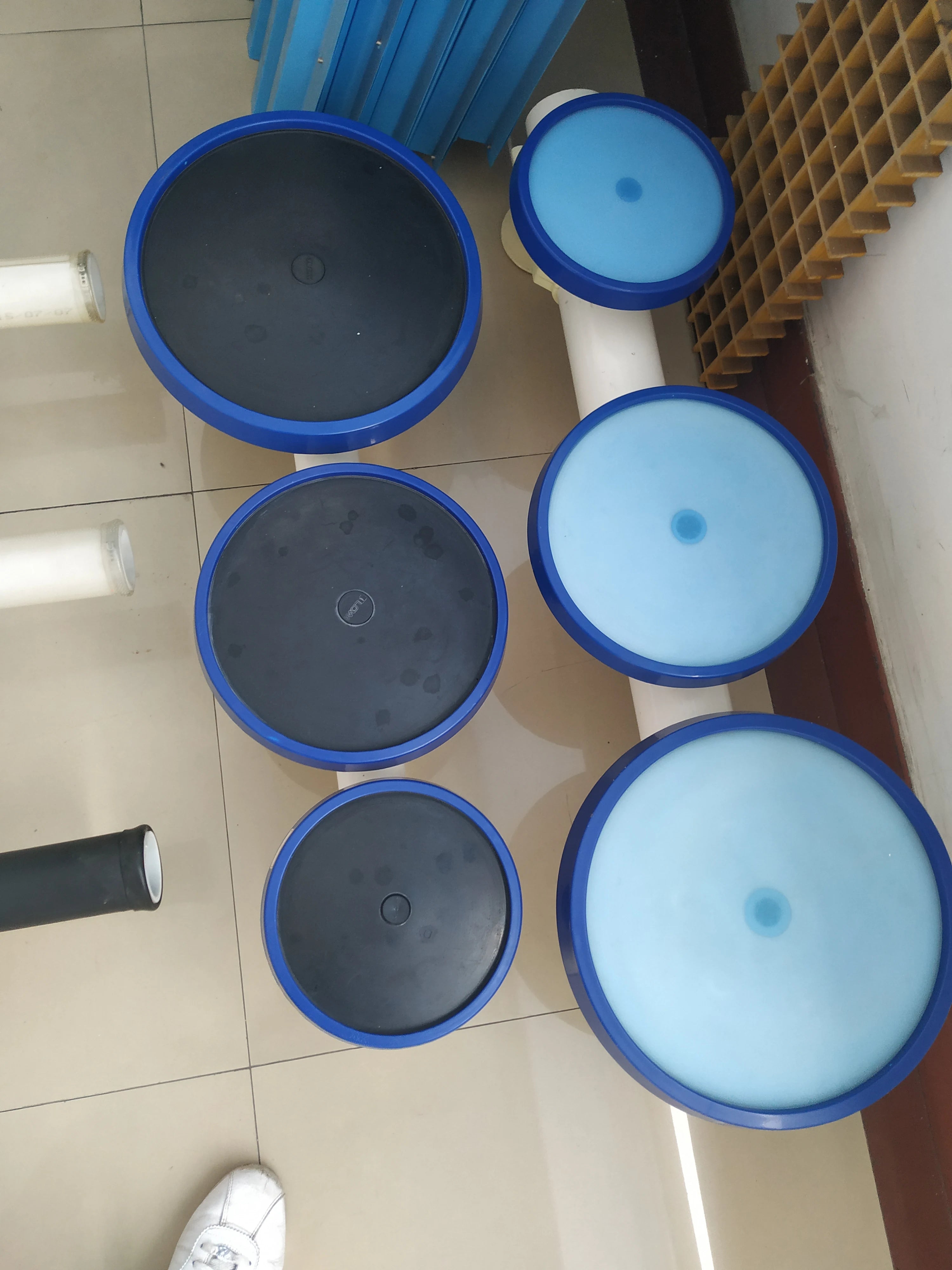

production show

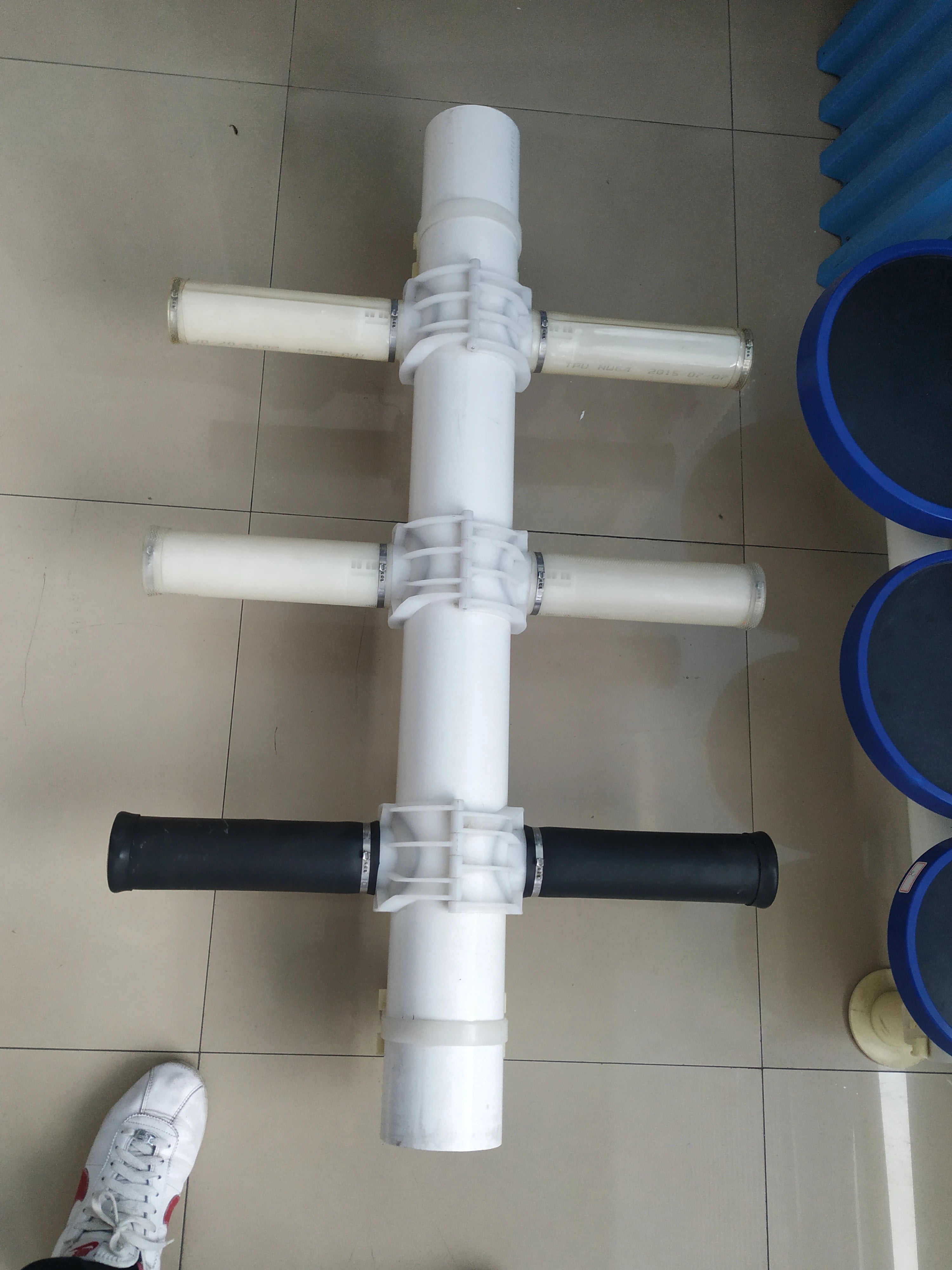

connection
1:stainless steel bolts pipe connection

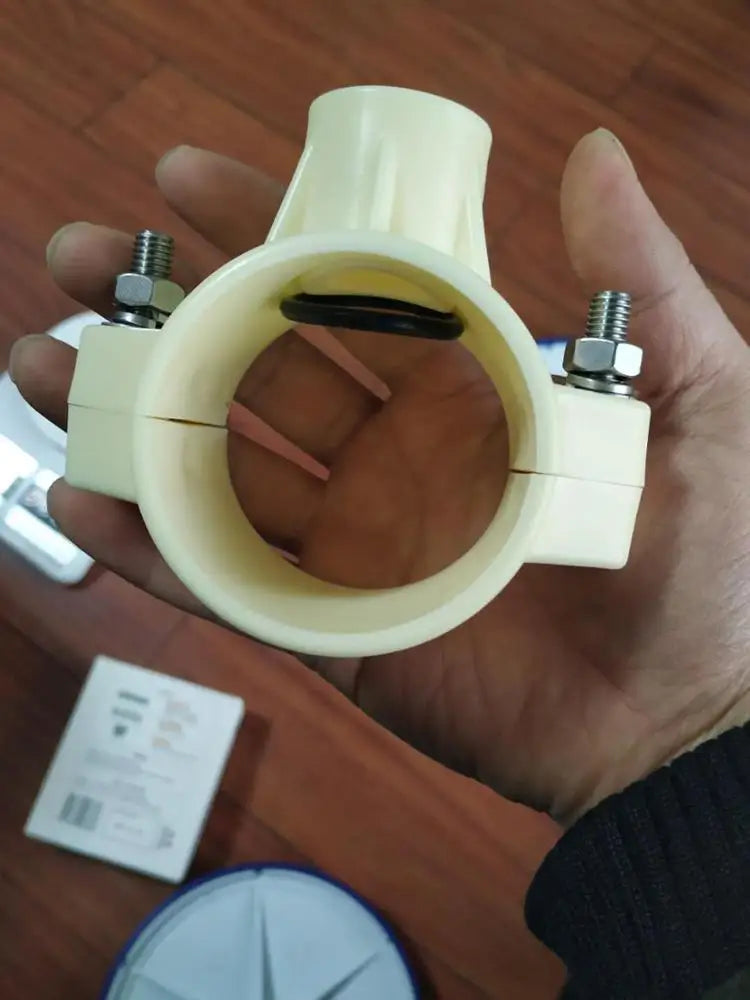

2:Board Locking Pipe clamp connection
