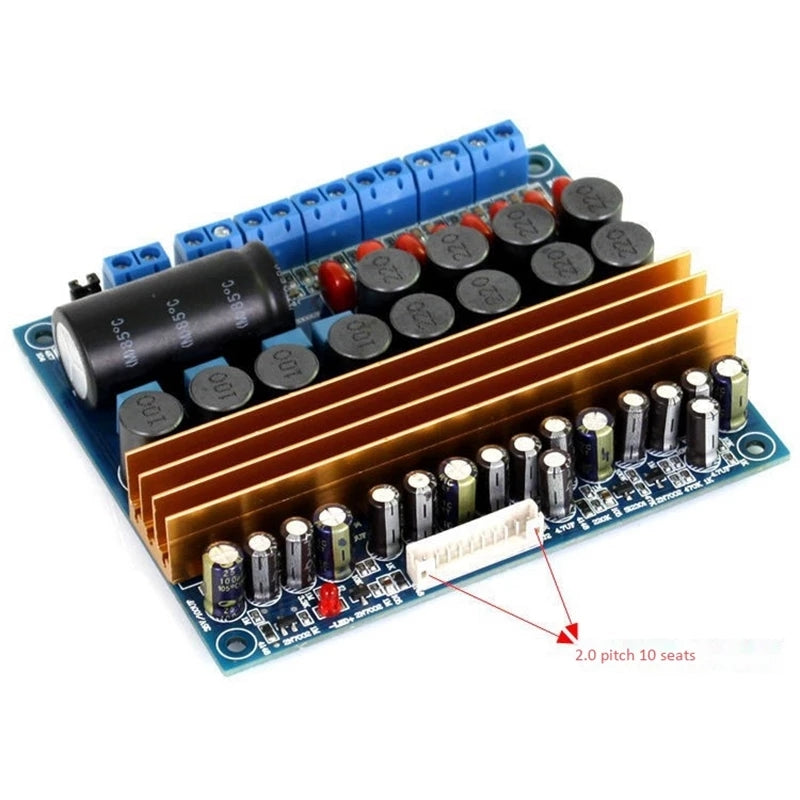

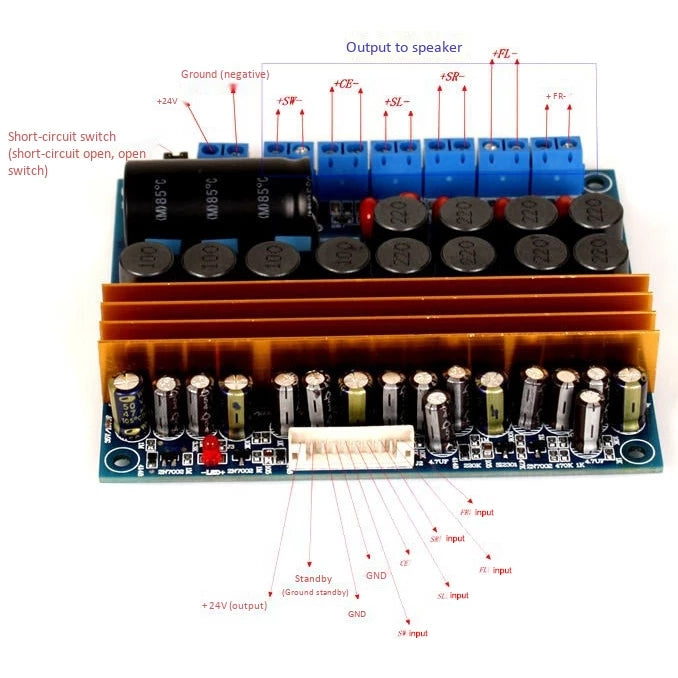

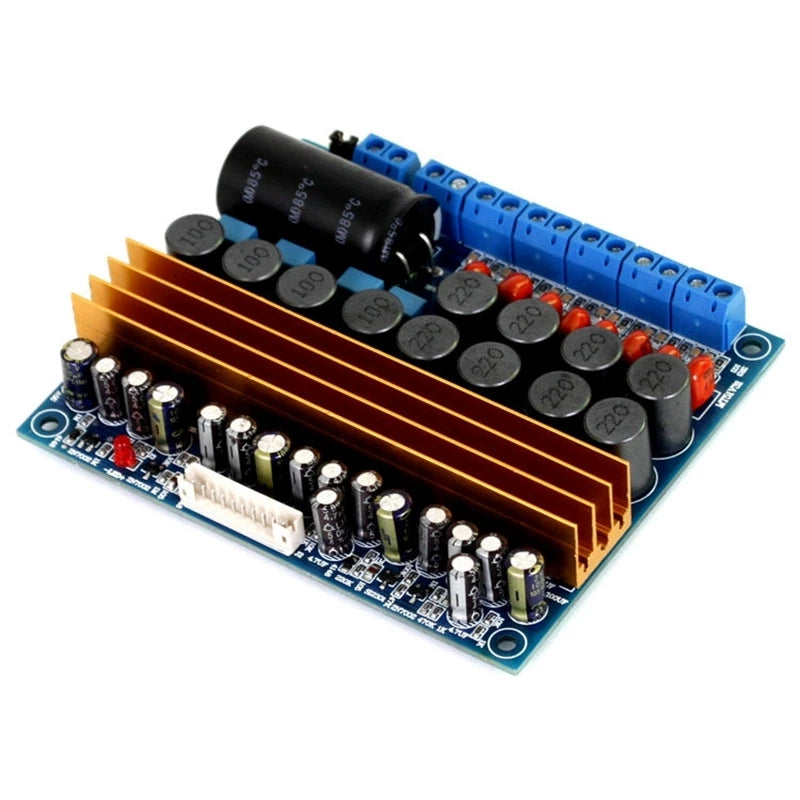

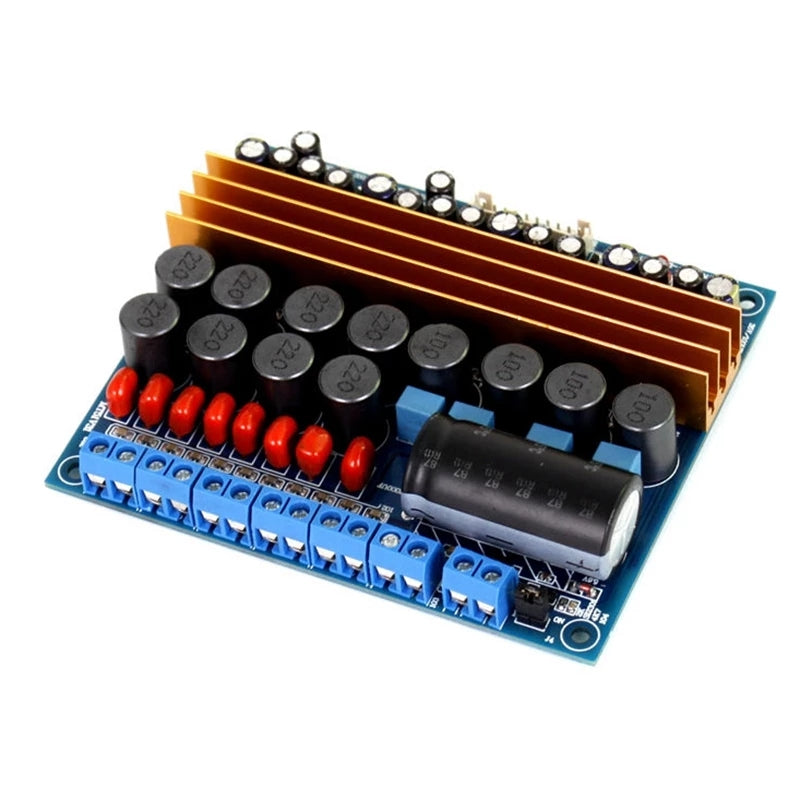

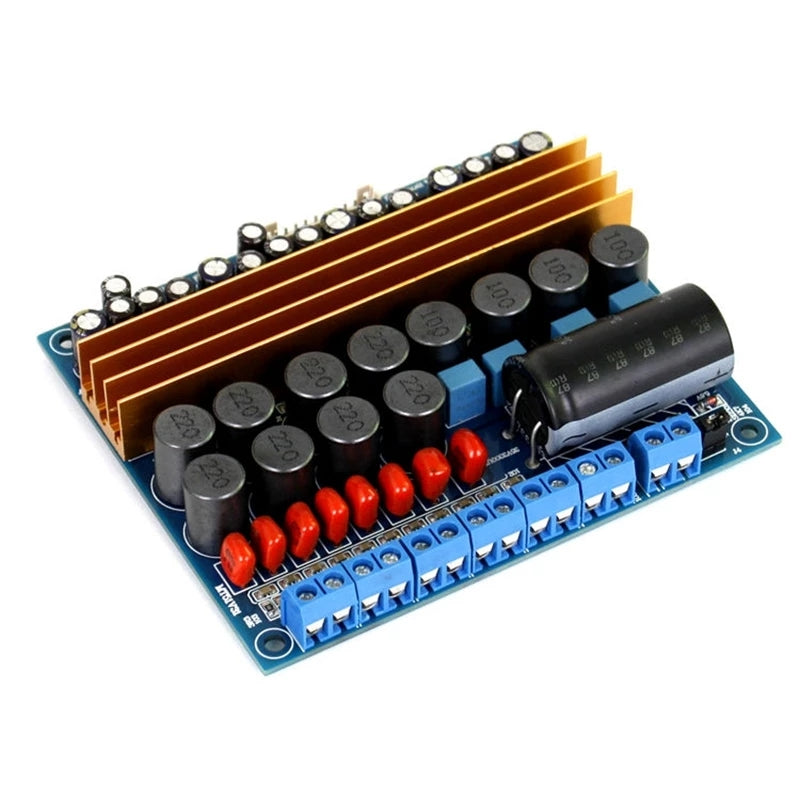

AM05-TPA3116 Power Amplifier o Board 100Wx2+50Wx4 6 Channel Class D Digital Sound Speaker Amplifier Audio for 5.1 Home Theater
Bike | Car | Automobile | Accessories Home&TechAcc Tech Accessories
5399865013089_80067698
9999 In Stock Sold Out 9999
Share
Maximum Power Per Channel: 100W
Model Number: TPA3116 5.1 Home Theater Amplifier
Channels: 6 (5.1)
Product description:TPA3116 5.1-channel Class D digital power amplifier board
Parameter:
Working method: Class D
Quiescent current: 150mA
Working efficiency: 90%
Rated output power: 100W + 100W + 4 * 50W
Frequency response: 20Hz to 20KHz
Working voltage: DC18V to DC24V
1. Using TPA3116D
2. Imported electrolytic capacitor 3300UF / 50V
3. The main circuit of the electrolytic capacitor signal uses Taiwan capacitors, and the main filter capacitor uses Japanese
imported electrolytic capacitors.
4. Resistance The main circuit uses a five-ring metal film resistor with an accuracy of +/- 1% to ensure a good signal-to-noise
ratio.
5. The PCB adopts 1.6mm thick double-sided sheet, 2.0 oz copper thickness, and the whole process of spraying tin to ensure the
good passing performance of the current.
color:blue
Material:Metal + pc
size:PCB size: 100 * 84.5MM
Package Contents:
1* TPA3116 Power Amplifier o Board
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
The measurement allowed error is +/- 1-3cm.
