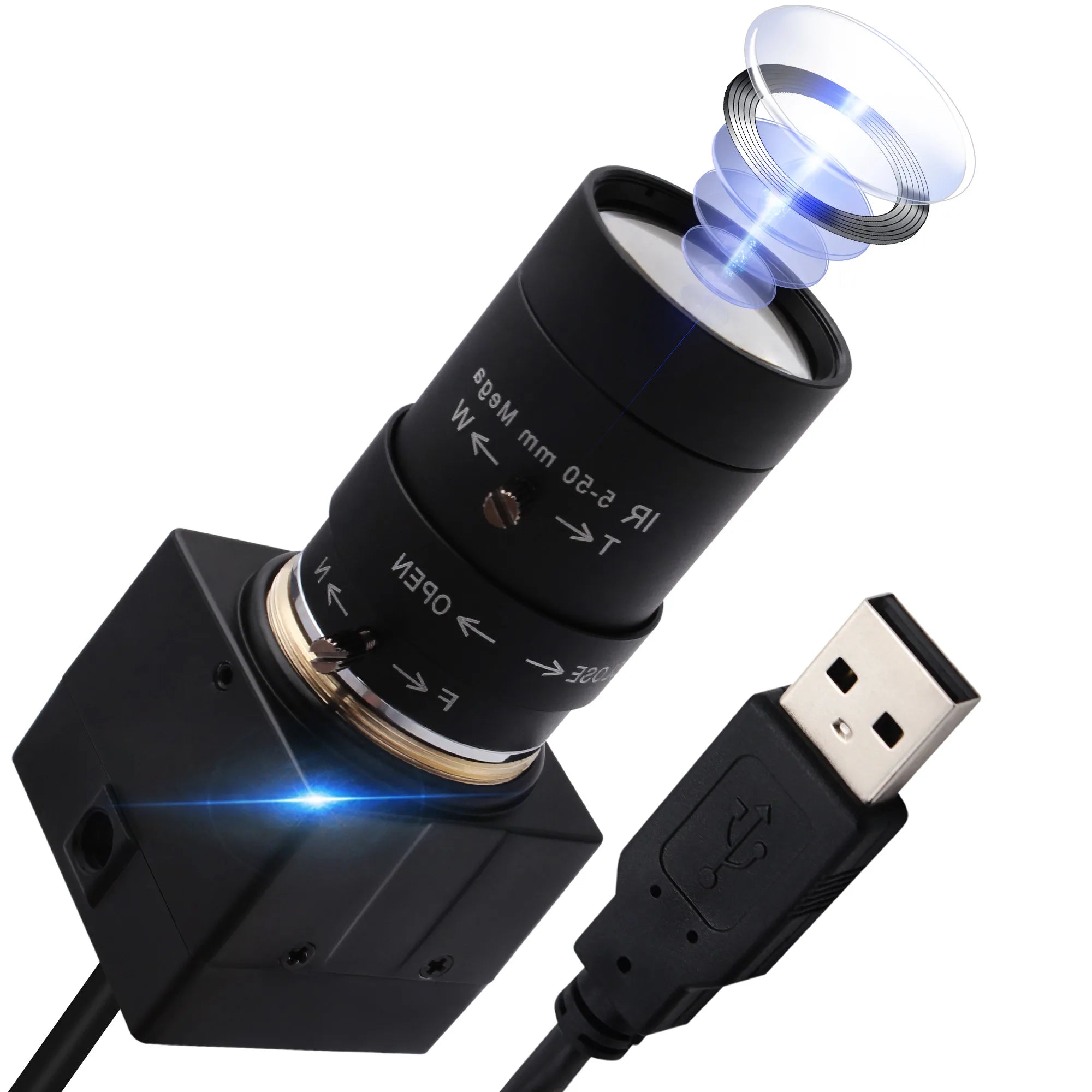

ELP 4K Camera IMX415 sensor 5-50mm varifocal 10X optical zoom webcam, Action & Sports Camera for Windows Linux Android
Share
ELP 4K Camera IMX415 sensor 5-50mm varifocal 10X optical zoom webcam, Action & Sports Camera for Windows Linux Android
Features:
* 4K 3840*2160 High resolution USB Webcam Camera
* 1/2.8” IMX415 sensor for high quality image

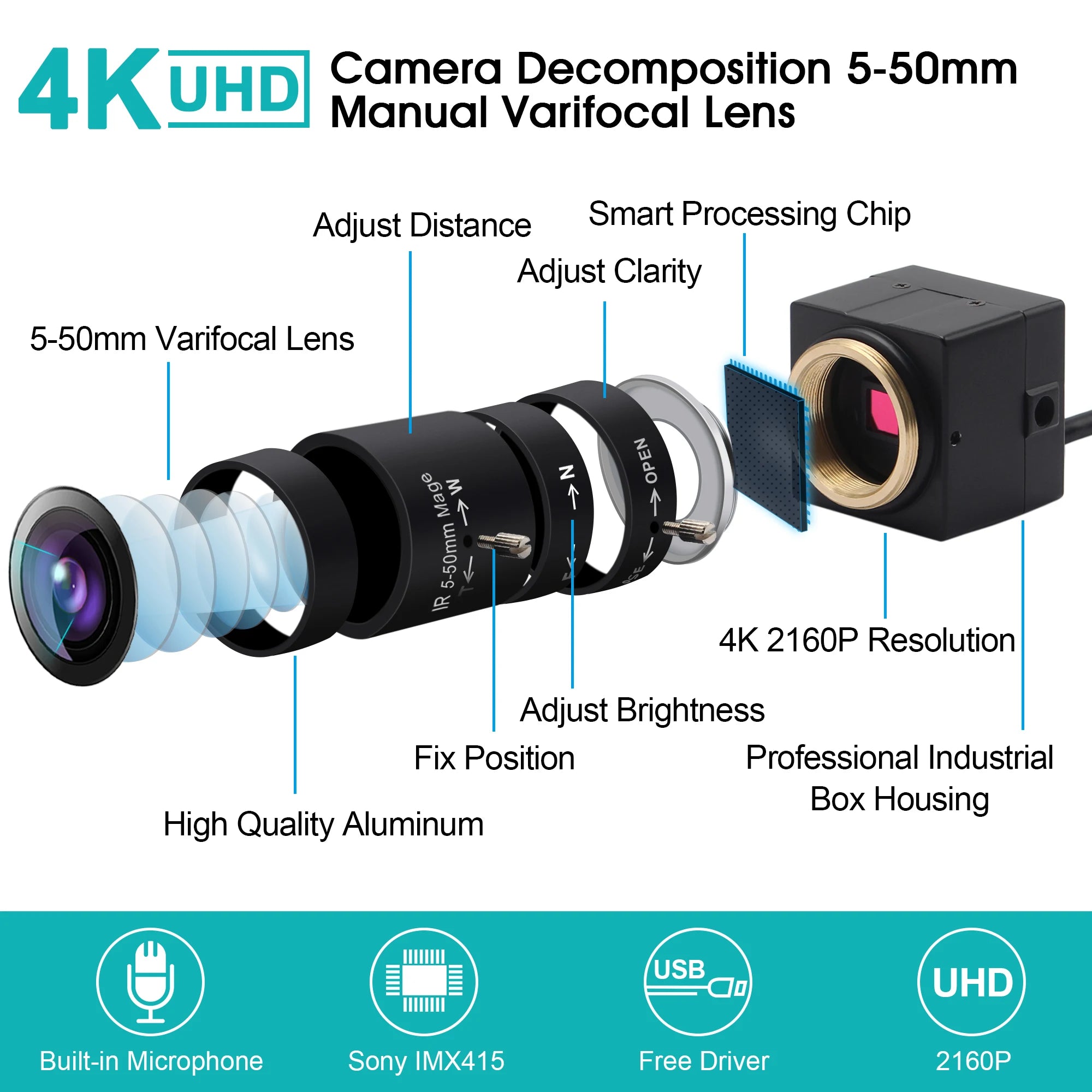

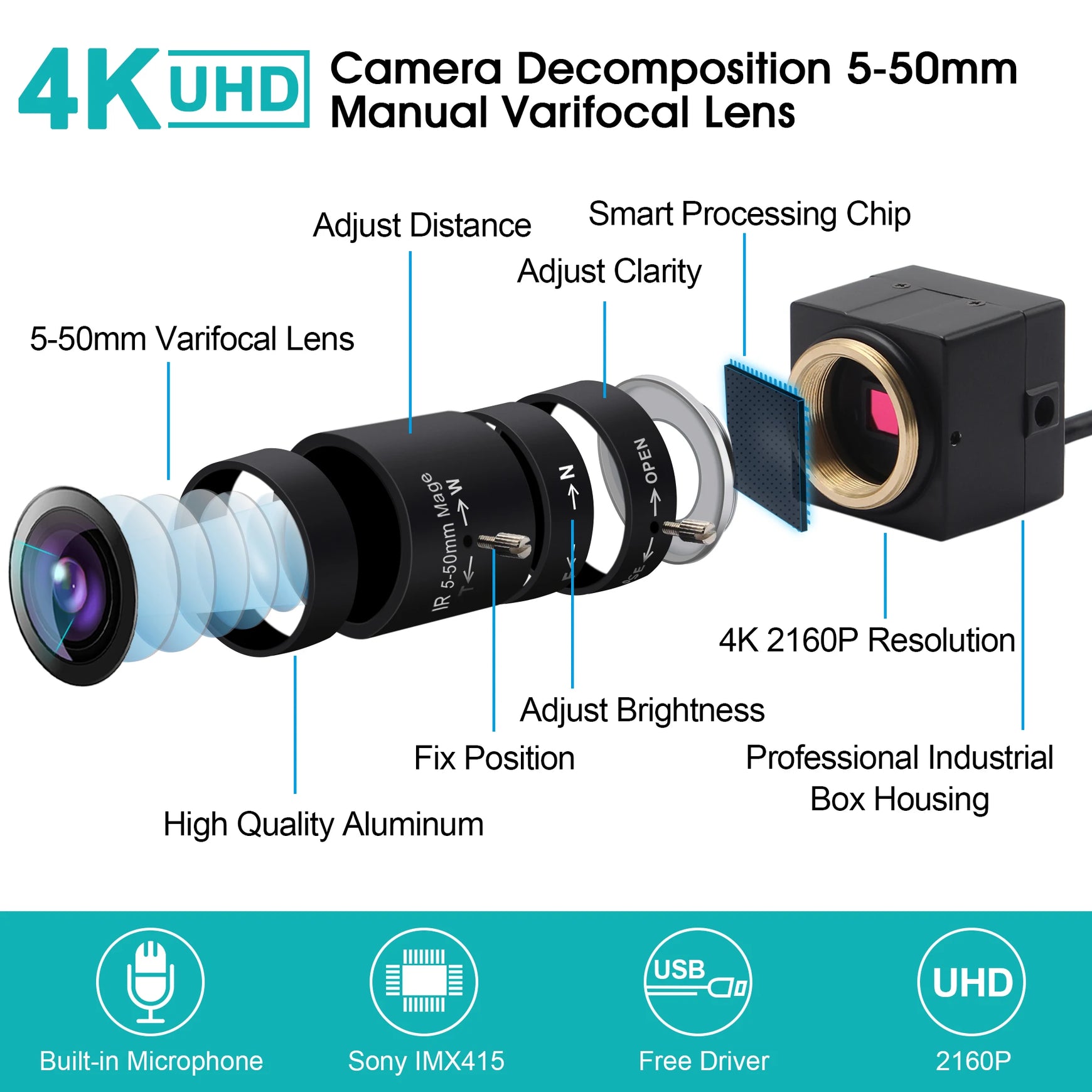

* With HD 5-50mm manuals zoom and focus varifocal CS lens
* High frame rate - MJPEG 3840*2160 30fps
* MJPEG/YUY2 dual outpu format optional
* Mini board size 38x38mm for embedded application
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC
Specification:
Model |
ELP-USB4K03-SFV(5-50) |
Sensor |
Sony IMX415 (1/2.8” ) |
Max. Resolution |
3840(H) *2160 (V) |
Sensitivity |
1000mV/Lux-sec |
Image area |
6100µmx4524µm |
Compression format |
MJPEG / YUY2(YUYV) |
Resolution & |
MJPEG: |
Center Definition |
1000LW/PH (Center) |
S/N (Signal Noise Ratio) |
26dB |
Sensitivity |
0.65V/l@550 |
Mini illumination |
0.2Lux |
Shutter Type |
Electronic rolling shutter / Frame exposure |
Connecting Port type |
USB2.0 High Speed |
AEC |
Support |
AEB |
Support |
AGC |
Support |
Adjustable parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance, Backlight Contrast, Exposure |
Lens Parameter |
5-50MM CS lens |
Power Supply & |
USB BUS POWER 4P-2.0mm socket |
Power Voltage |
DC5V |
Power Current |
200mA |

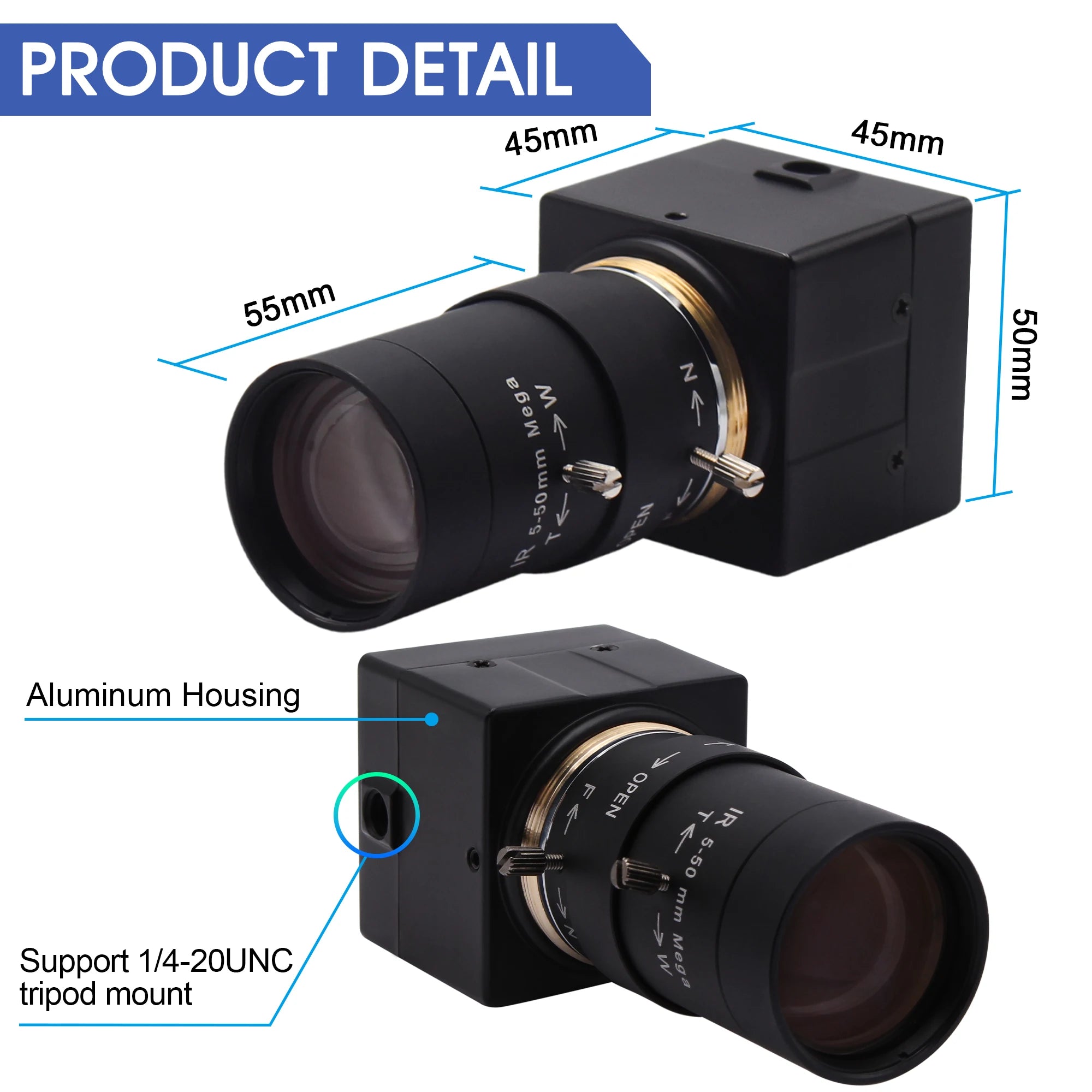

Board Size |
38*38mm |
Storage Temperature |
-20~70℃ |
Working temperature |
0~60℃ |
USB Cable |
Standard 3 M ( 2M/5 M optional) |
Operating system request |
Win XP/Vista/Win7/Win8 /Win10/ Linux with UVC(above linux-2.6.26) |
Products details:
-Plug and Play, Free driver with standard USB connection and 3M cable. Super easy to set up with your PC computer, laptop and desktop.
-Compatible with system Windows XP/Vista/Win7/Win8/Win10, Linux with UVC (above linux -2.6.26) , MAC-OSX 10.4.8 or later, Android 4.0 or above with UVC
-This 4k USB camera can widely use for regular social software like Skype/QuickTime/Zoom/Facetime/OBS/GoToMeeting/ Facebook LIVE/ YouTube.Professional computer video software Amcap/OpenCV/VLC.
Also can support Raspberry Pi, Motion Eye, Yawcam,ContaCam,ISPY with video software to use as a surveillance camera. Special design for professional video production, surveillance system manufacturing, industrial vision
ATM Machine, Kiosk, automatic vending machine,Robot, Sanner, Virtual reality, Medical equipment, machinery equipment, POS equipment, Smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, Tablet external, on-the-spot law enforcement, Recognition algorithm attendance machine, simple security system, teaching system, Interactive system,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
