ELP Sony IMX323 H.264 Low illumination Full HD 1080P wide angle 170 degree Fisheye usb camera with Microphone for Robot Vision
Save -57%
Rs. 14,456.36
Rs. 33,731.52
HURRY ! ONLY
9999 LEFT IN STOCK.
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
![](http://shanvis.store/cdn/shop/files/1_50x50.png?v=1703315377)
FREE SHIPPING
WORLDWIDE
![](http://shanvis.store/cdn/shopifycloud/shopify/assets/no-image-50-3d8cc48bd078edcd544c8d60f929ed2d8800a3fc52e0f602e84b1767e392bfcd_50x50.gif)
BIG SAVING ON
WEEKENDS
![](http://shanvis.store/cdn/shopifycloud/shopify/assets/no-image-50-3d8cc48bd078edcd544c8d60f929ed2d8800a3fc52e0f602e84b1767e392bfcd_50x50.gif)
24H SUPPORT
CONTACT US
Features

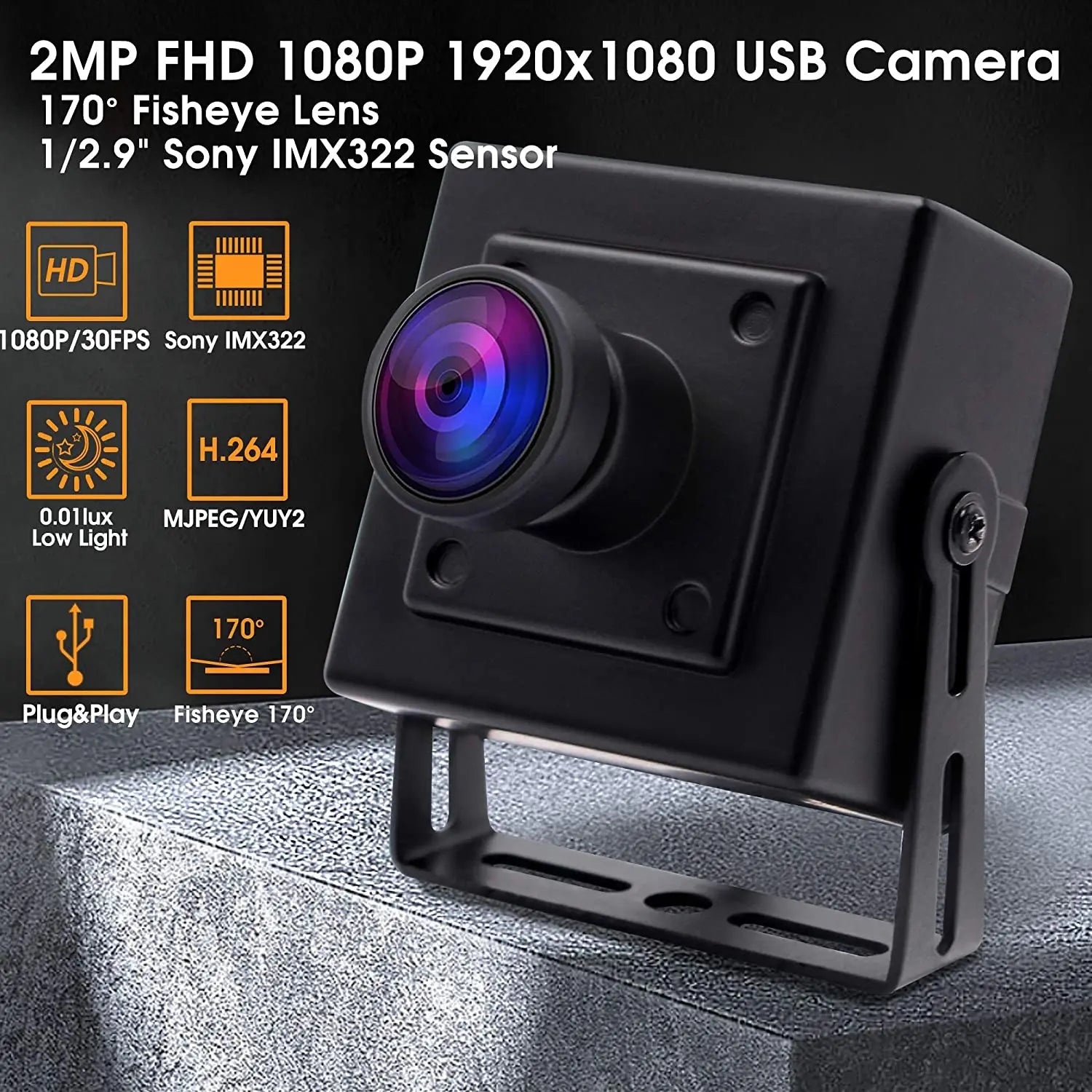

* 2MP 1080P H.264 USB Camera
* 1/2.9” Sony IMX322 sensor for high quality image

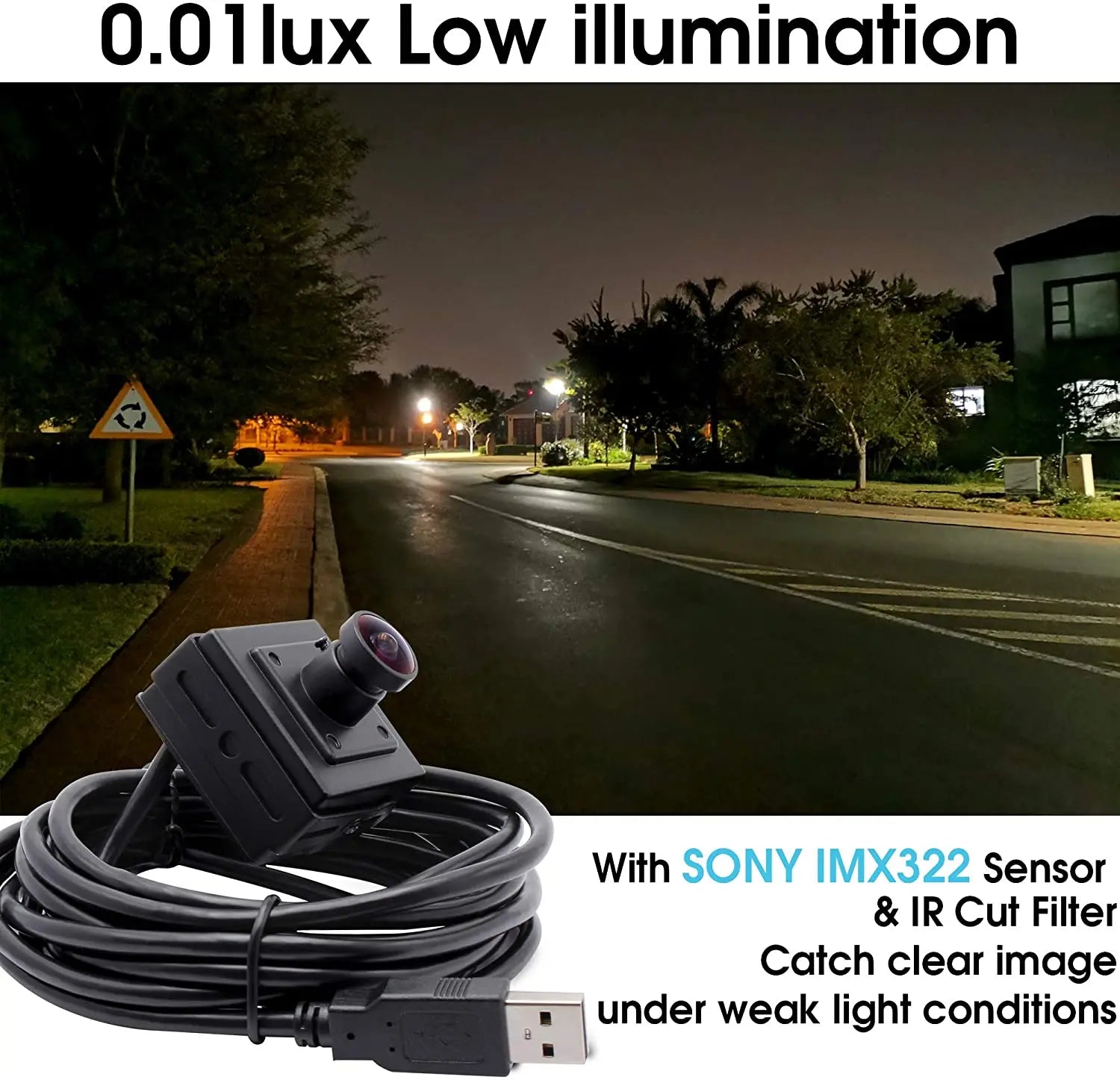

* 0.01 Lux Low illumination - ideal for any lighting condition
* With HD 170 degree fisheye M12 lens
* With microphone for audio recording

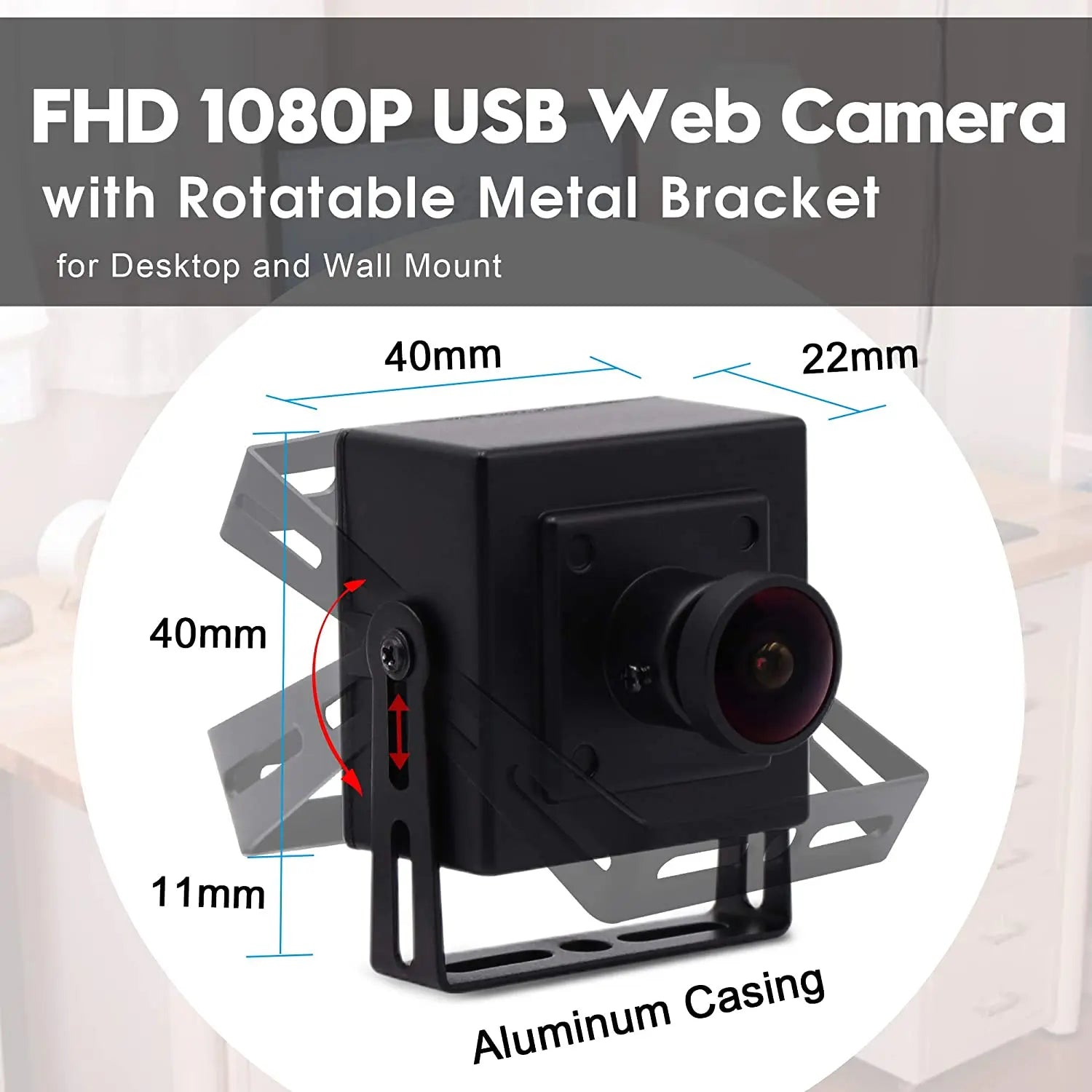

* With 41*41mm mini size metai black housing
* H.264/MJPEG/YUY2 dual video format optional
* Mini size 41*41/36*36mm for embedded application
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC

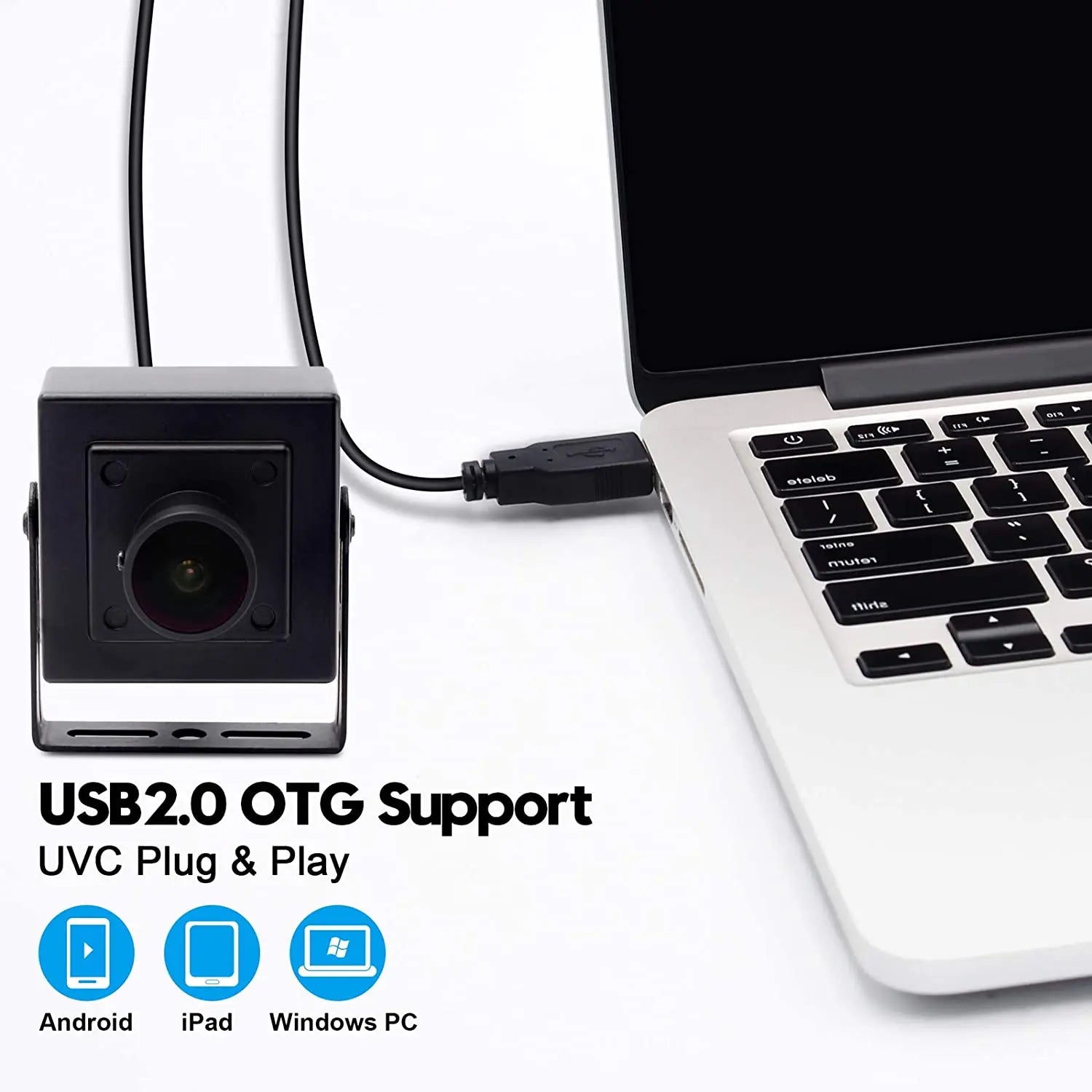

* Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG
* Application: Scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk etc.
Why Choose H.264 camera?
1. Has higher coding efficiency.
2. Can provide high-quality video images at the low bit rate as well as the low bandwidth.
3. H.264 can work in real-time communication application low-latency mode, such as Video Conferencing systems, Online video storage and streaming, video game consoles, mobile video through 3G/4G…
* 1/2.9” Sony IMX322 sensor for high quality image
* 0.01 Lux Low illumination - ideal for any lighting condition
* With HD 170 degree fisheye M12 lens
* With microphone for audio recording
* With 41*41mm mini size metai black housing
* H.264/MJPEG/YUY2 dual video format optional
* Mini size 41*41/36*36mm for embedded application
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC
* Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG
* Application: Scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk etc.
Why Choose H.264 camera?
1. Has higher coding efficiency.
2. Can provide high-quality video images at the low bit rate as well as the low bandwidth.
3. H.264 can work in real-time communication application low-latency mode, such as Video Conferencing systems, Online video storage and streaming, video game consoles, mobile video through 3G/4G…
Specification
Model
|
ELP-USBFHD06H-BL170
|
Sensor
|
Sony IMX323
|
Lens Size
|
1/2.9 inches
|
Pixel Size
|
12.8X11.6 mm
|
image area
|
2000(H)X1121(V) approx. 2.24 M pixels
|
Max. Resolution
|
1080P
|
Compression format
|
H.264 /MJPEG / YUV2(YUYV)
|
Resolution & frame
|
H264:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps/
800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps MJPEG:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps/ 640X480@30fps/800X600@ 30fps/ 1280X720@ 30fps/1920X1080@ 30fps YUV:320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps/ 800X600@ 15 fps |
S/N Ratio
|
42dB
|
Dynamic Range
|
86dB
|
Sensitivity
|
5.0V/lux-sec@550nm
|
Mini illumination
|
0. 01lux
|
Shutter Type
|
Electronic rolling shutter / Frame exposure
|
Connecting Port type
|
USB2.0 High Speed
|
Free Drive Protocol
|
USB Video Class(UVC)
|
Support OTG Protocol
|
USB2.0 OTG
|
AEC
|
Support
|
AEB
|
Support
|
AGC
|
Support
|
Adjustable parameters
|
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance,
Backlight Contrast, Exposure |
Lens Parameter
|
FOV(D)170 Degree, (2.1/2.8/3.6/6/8/12mm FOV(D)180 Degree fisheye lens , No distortion lens optional )
|
Digital audio
|
High quality digital MIC, support single, dual channel
|
LED board power connector
|
Support 2P-2.0mm socket
|
Power supply
|
USB BUS POWER 4P-2.0mm socket
|
Operating Voltage
|
DC5V
|
Working current
|
140mA~190mA
|
Working temperature
|
-10~70℃
|
Storage temperature
|
-20~85℃
|
Board size /Weight
|
38X38mm(Compatible 32X32mm)/ about 30g
|
Cable
|
Standard 1M / 2M,3 M,5M optional
|
Operating system request
|
Win7 Win8 Win10 Win11
Linux 2.6 or above Android 4.0 or above |
Details Images
![](http://sc04.alicdn.com/kf/Hfb93c9f3497c41e0b3cb33c121dc4b52L/220527355/Hfb93c9f3497c41e0b3cb33c121dc4b52L.jpg)
![](http://sc04.alicdn.com/kf/Hb3b953840c934c7b95155f292ef5eb94O/220527355/Hb3b953840c934c7b95155f292ef5eb94O.jpg)
![](http://sc04.alicdn.com/kf/H1d46c72911234675a9c813b0d2cb3267Q/220527355/H1d46c72911234675a9c813b0d2cb3267Q.jpg)
![](http://sc04.alicdn.com/kf/Hbd8f7856de2d469d8a539c03b030d2de5/220527355/Hbd8f7856de2d469d8a539c03b030d2de5.jpg)
![](http://sc04.alicdn.com/kf/H4730b0d9e4fc4dfb994335b2899bdccb2/220527355/H4730b0d9e4fc4dfb994335b2899bdccb2.jpg)
![](http://sc04.alicdn.com/kf/Hbd8f7856de2d469d8a539c03b030d2de5/220527355/Hbd8f7856de2d469d8a539c03b030d2de5.jpg)
![](http://sc04.alicdn.com/kf/H2ecfcee01bbe4f00b88970d59fec79b4a/220527355/H2ecfcee01bbe4f00b88970d59fec79b4a.jpg)
