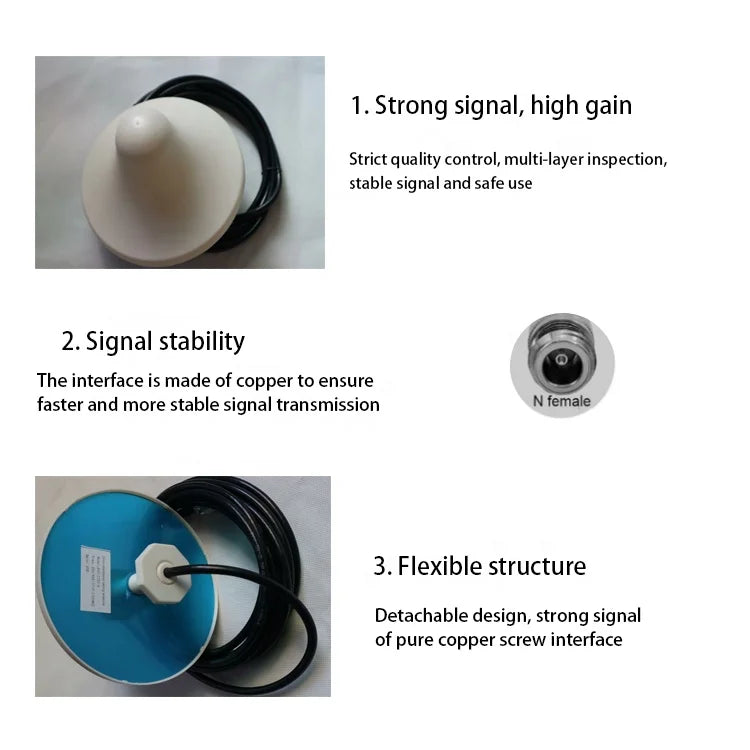

Ayissmoye ceiling antenna N-female mobile phone gsm signal booster indoor lte 3g4g5g communication antenna
6807526013089_113093585
10000 In Stock Sold Out 10000 10000 10000 10000 10000 10000 10000
Share
ELECTRICAL
|
||
Model
|
XD3-H/XD5-H/XD3-B/XD5-B/XD-PT/XD-YT/DXD-B
|
|
Frequency Range
|
800-2700MHz
|
|
Bandwidth
|
790MHz
|
|
Gain
|
12dBi
|
|
Intermodulation IM3
|
≤-95dBc
|
|
VSWR
|
≤1.5
|
|
Polarization
|
Vertical
|
|
Max power
|
100 W
|
|
Nominal Impedance
|
50 Ω
|
|
MECHANICAL
|
||
Connector
|
N male or N-female
|
|
Weight
|
400g
|
|
Color
|
White/Black
|
|
Rated Wind Velocity
|
60m/s
|
|
Working Temperature
|
-40~+70℃
|
|
Mounting
|
Fixed with Nut
|

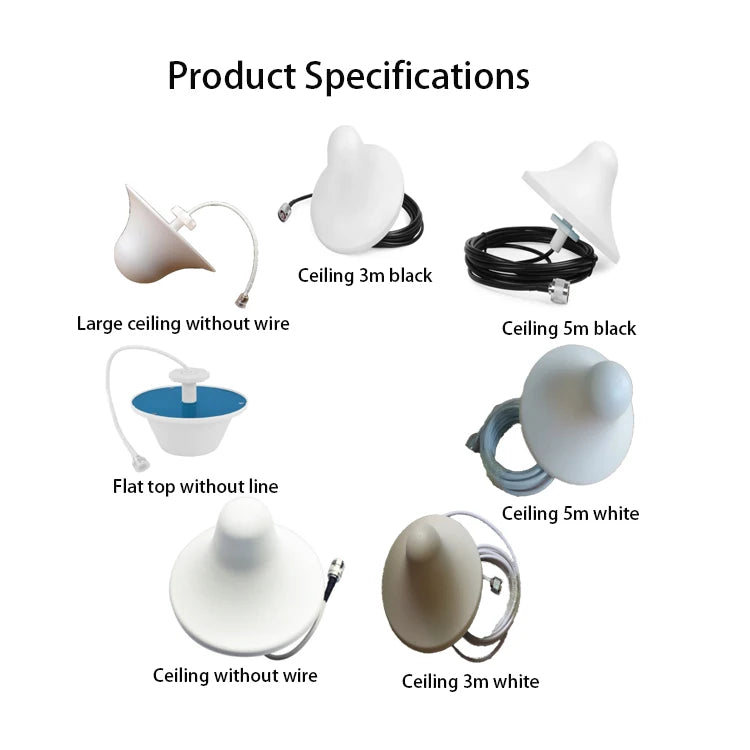

Product specification
|
Product model
|
Product size
|
Ceiling 3m black
|
XD3-H
|
W=165mm±5 H=108mm±5
|
Ceiling 5m black
|
XD5-H
|
W=165mm±5 H=105mm±5
|
Ceiling 3m white
|
XD3-B
|
W=165mm±5 H=100mm±5
|
Ceiling 5m white
|
XD5-B
|
W=165mm±5 H=100mm±5
|

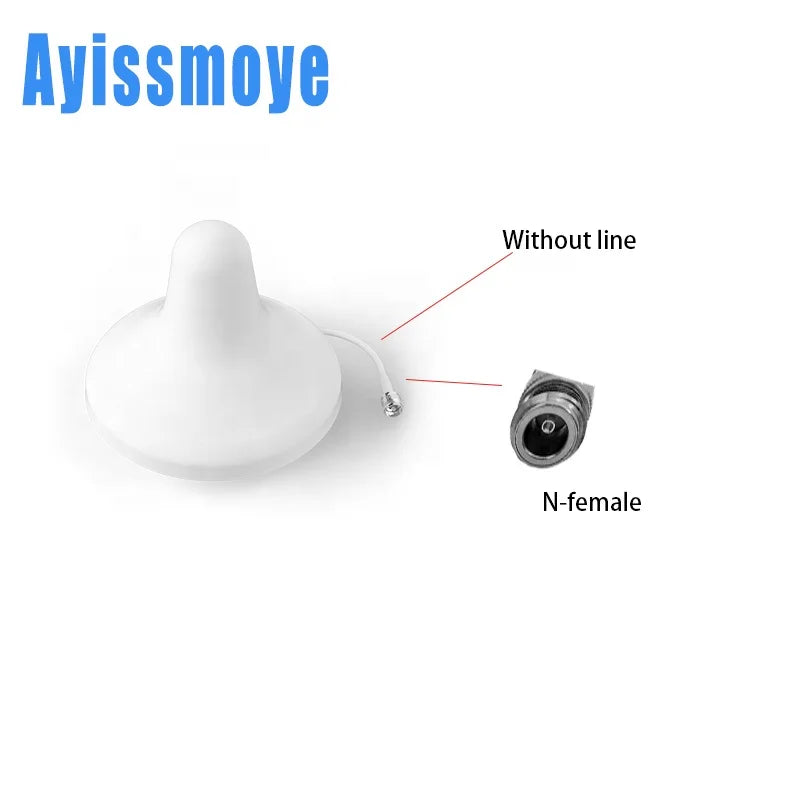

Ceiling without wire
|
XD-YT
|
W=180mm±5 H=110mm±5
|
Large ceiling without wire
|
DXD-B
|
W=210mm±5 H=115mm±5
|
Flat top without line
|
XD-PT
|
W=182mm±5 H=88mm±5
|
A regular cell phone repeater consists of: (full kit)
2 - Indoor Omni ceiling antenna( panel antenna)
3 – Power adapter
4 - User manual
5 - Cell phone repeater
Cell phone becomes especially helpful when people get into critical situations. In case of emergency a timely call can save
somebody’s life.
Unfortunately, there are still some places where they can find themselves “out of coverage” ,no signal at all... Usually those
places are either too far from the cell phone base station or located inside underground constructions, for example:
1.Parking lots
2.Big stores, office buildings
3.Cars, boats etc.
4.House in remote areas
How should you install repeater (very easy and simple):
Step 5: Power up signal repeater device to check the signal inside, moving outdoor antenna until you get satisfied signal.
Note : Connect outdoor (BTS) port with outdoor antenna, connect indoor ANT(MS) port with indoor antenna, outdoor antenna is mounted
at a higher position. Both antennas should be 10 meters far away from each other at least.
Indoor and outdoor antenna must be separated by wall.
