Features:
Adopt with imported integrated device, this dual channel power amplifier has high stability, and provide low distortion, high precision signal amplification.
DC12V DC single power supply, convenience for outdoor using.
Sine wave full power bandwidth range: DC-100KHz.
High precision, low distortion signal amplification.
Up to 140 Vpp(±70V) high voltage output, ≥10V/us slew rate and 10KΩ input impedance.
Isolation between power supply ground and signal ground.
Dual channel, small size, easy to carry.
Compatible with arbitrary waveform and function signal generators from various manufacturers.

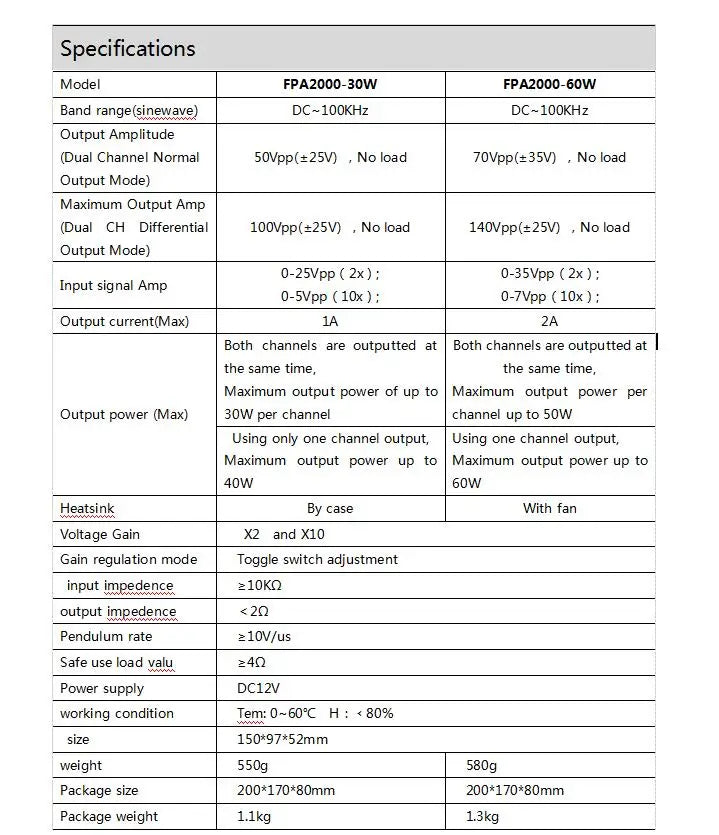

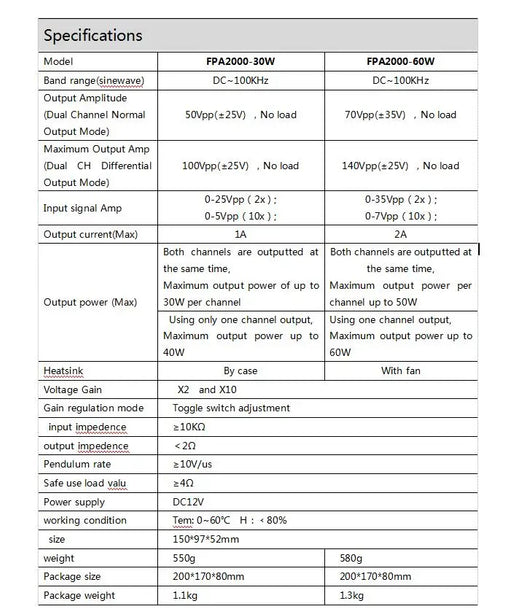

Specifications:
Plug Type: AU / EU / UK / US (Optional)
Material: Aluminum alloy
Full Power Bandwidth Range (Sine): DC~100KHz
Max. Output Amplitude(Dual Channel Output Mode): 50Vpp(±25V), no load
Max. Output Amplitude(Dual Channel Differential Output Mode): 100Vpp(±50V), no load
Amplitude Range of Input Signal:
0-25Vpp (2 times gain)
0-5Vpp (10 times gain)
Max. Output Current: 1A
Max. Output Power:
both channels are output simultaneously, and each channel has a maximum output power of 30W
use only one channel output, the maximum output power can reach 40W
Heat Dissipation Method: Natural heat dissipation of shell
Voltage Gain: 2X and 10X, 2 gears optional
Gain Adjustment Method: Toggle switch adjustment
Input Impedance: ≥10KΩ
Output Impedance: <2Ω
Slew Rate: ≥10V/us
Safe Use Load Value: ≥4Ω
Power: DC12V power Input
Working Condition: Temp.: 0~60℃, humidity: <80%RH
Item Size: 150 * 97 * 52mm / 5.91 * 3.82 * 2.05in
Item Weight: 823g / 29.03oz
Package Weight: 1100g / 38.80oz
Package Size: 20 * 17 * 8cm / 7.87 * 6.69 * 3.15in
| Material | Input Impedance | Output Impedance |
| Aluminum alloy | ≥10KΩ | <2Ω |

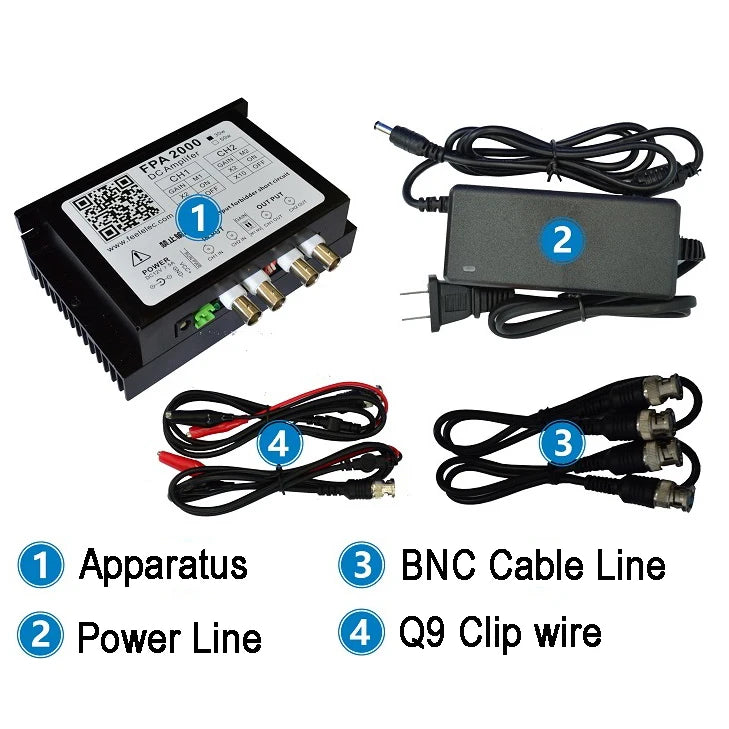

Package List:
1 * DC Amplifier
1 * Plug
2 * BNC-Clip Cable
2 * BNC-BNC Cable
