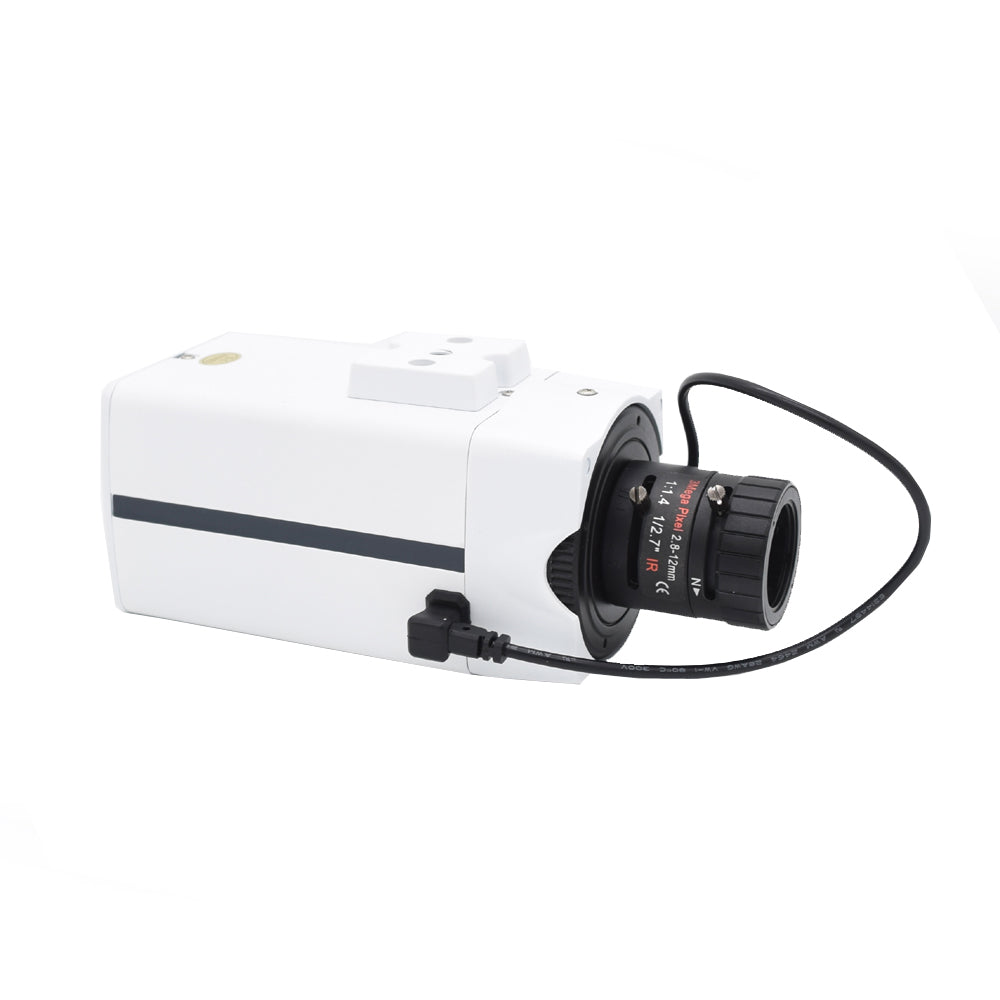

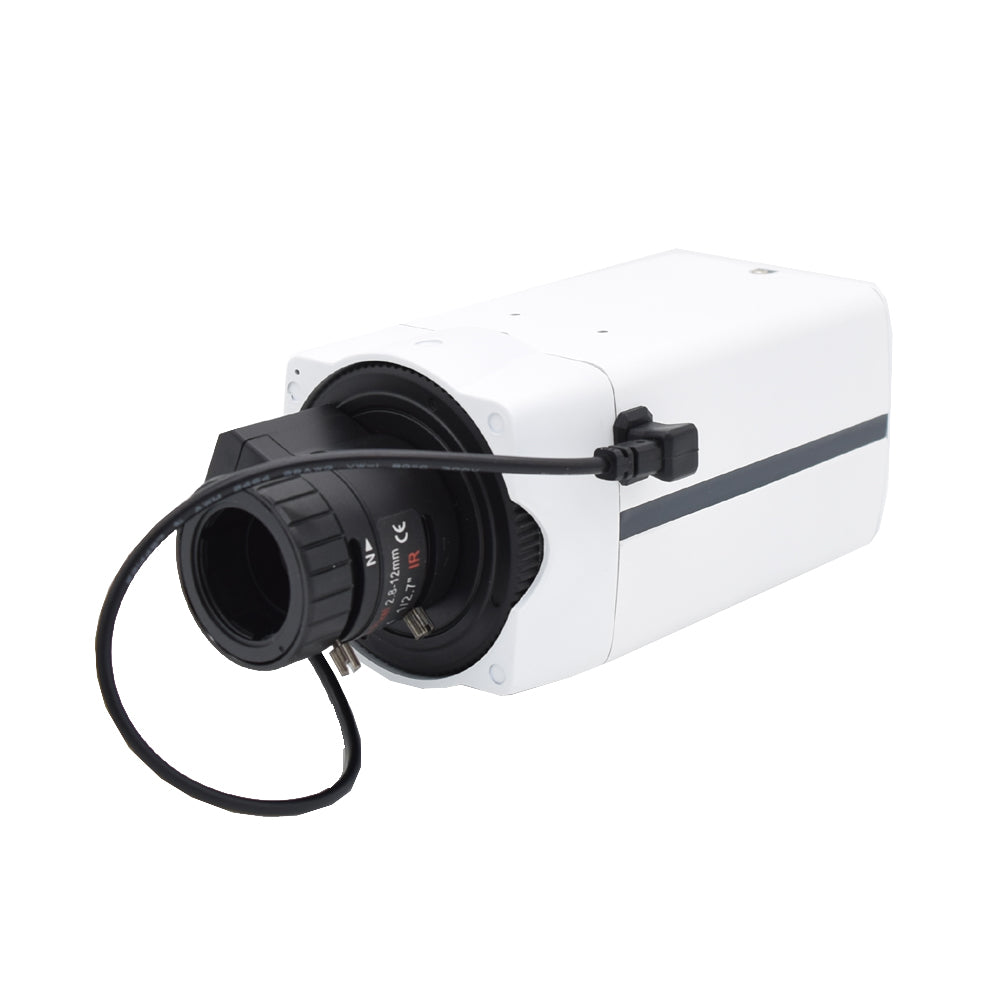

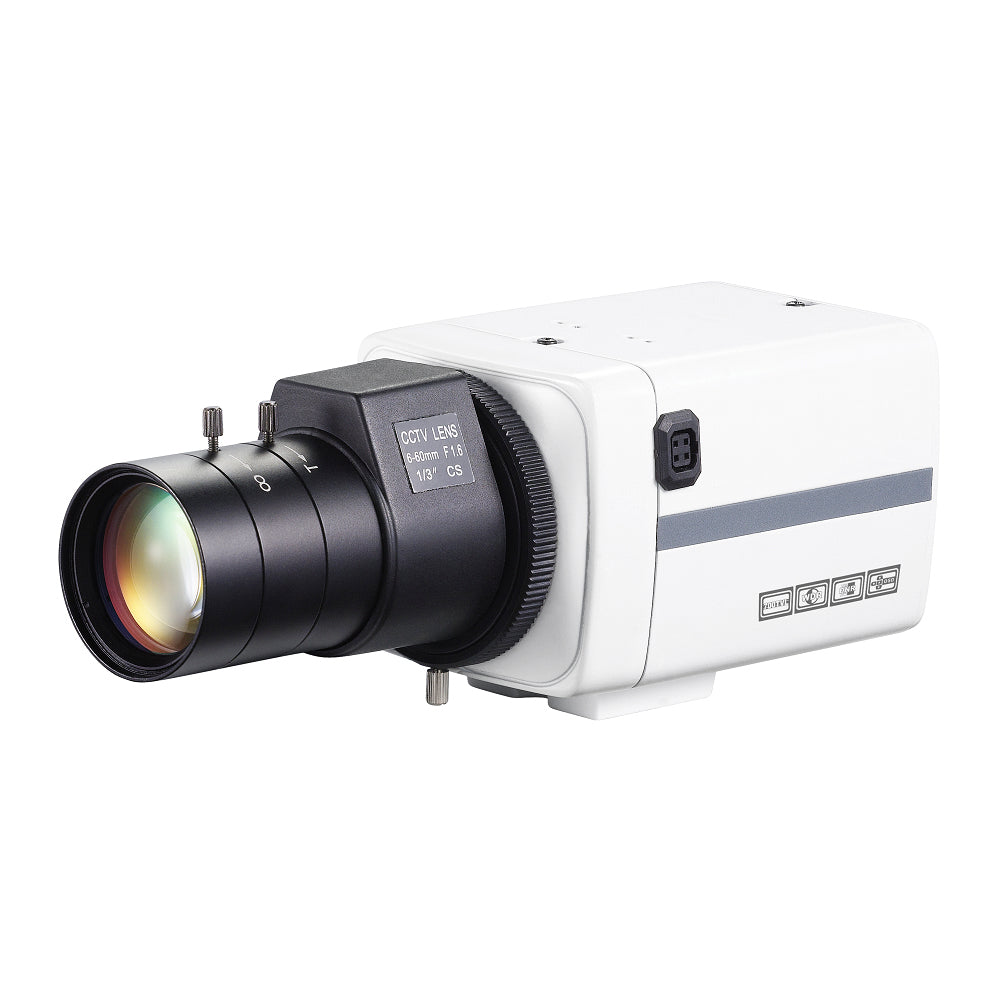

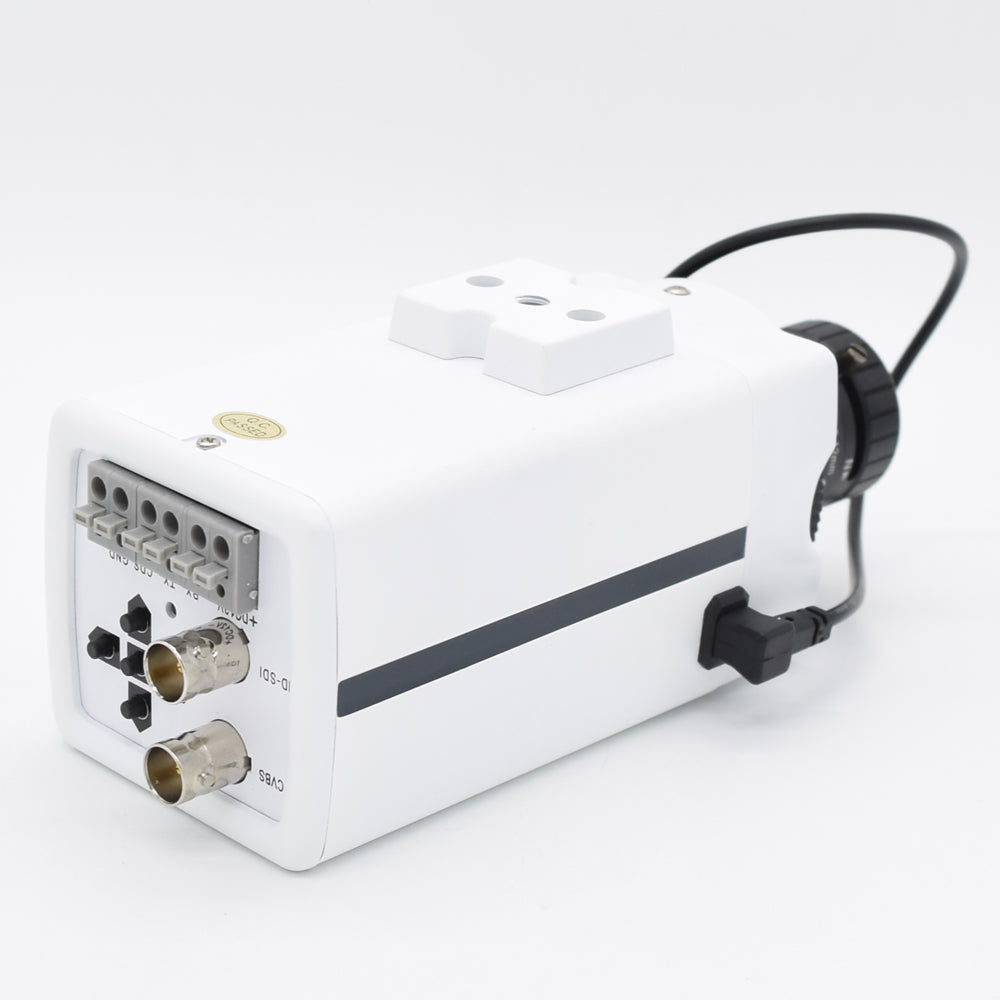

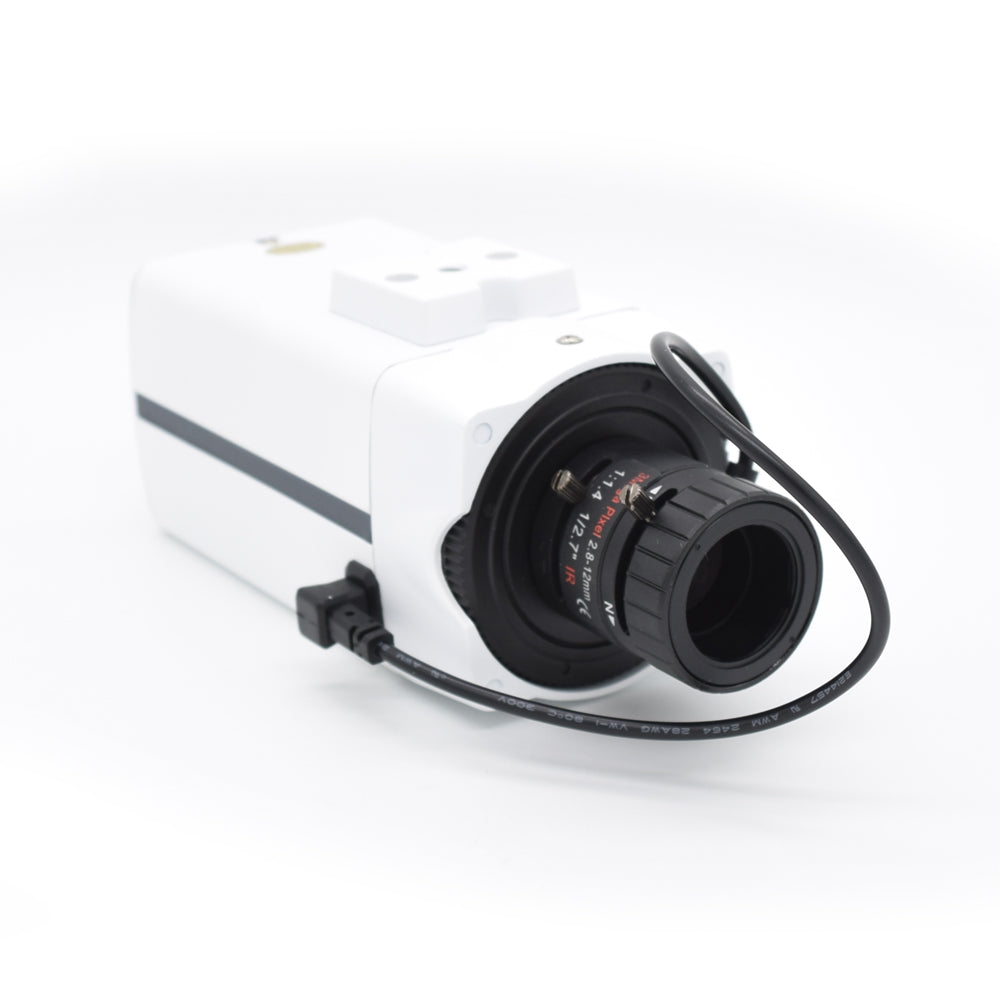

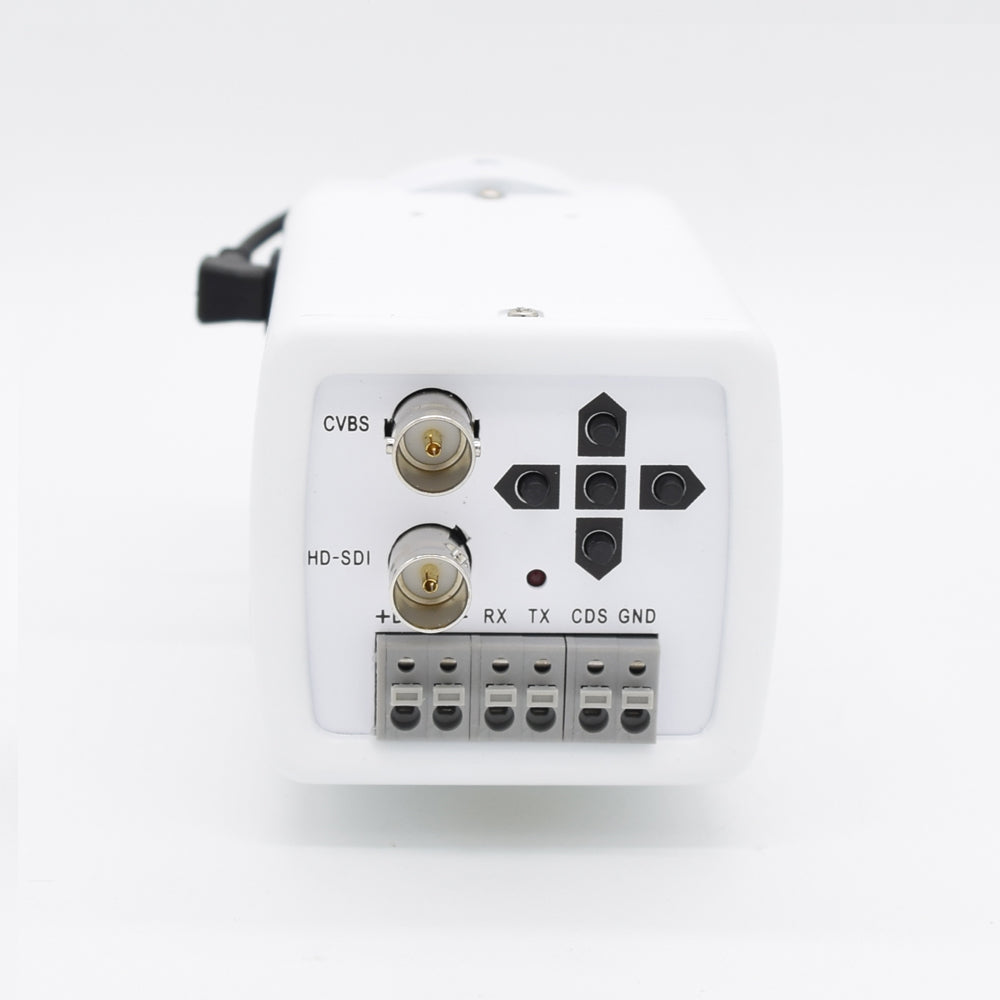

HQCAM SDI 60fps 1080P Full HD Box SDI Bullet Camera With CS Mount 1080i 50fps 60p With Osd Menu,Used For Traffic Cashier CCTV

Technical Specifications

this models is 1080P HD-SDI ature Camera, using 2 mega pixel panasonic progressive scan CMOS chip which have 1080P clear picture, good real-time,lower illumination, with 3D noise reduction and WDR functions, can use in bank, army, prison and so on.

Specification:

Digital: 1080(30P)  Max: 1200TV lines(1080P)

Maximum illumination:0.0003Lux

WDR Max 160 Dynamic Range

Built-in Next Generation DNR Adapted 3D Filter

Built-in Single Scan Wide Dynamic Range

OSD Menu,DC 12V Less than 2.5Watts

1. Full HD Mega Pixel(1080P)High Definition is at least a million pixels per frame. So it can provide  more clear and greater image. Besides resolution ability is over 1,100 TV Lines.

2. WDR(Wide Dynamic Range)This is the ability to expand the dynamic range. This function uses alternative exposure time control method.

3. 3D Digital Noise ReductionThis feature removes noise in images(spatial, temporal domain)Temporal noise is reduced by 3D filter using frame memory and  spatial noise is reduced by 2D filter. Especially, the ghost effect is reduced by motion adaptive filter.

4. D-WDR(Digital Wide Dynamic Range)This function is a local adaptive contrast enhancement. It uses a histogram analysis and tone mapping method in pixel domain.

5. Motion Object DetectionThis function detects the Motioned object in the image -. Detection Resolution: 8x8 pixels -. Detection Object Size: Variable -. Detection quantity: 16 ea

6 Lens Shading CompensationThis function compensates shading effect caused by Lens. It uses 2D shading table for compensation.

7 D-Zoom The control resolution is 256 sub pixel units. Also, the center of zoom can be varied in the image.

 Live Defect Detection & Correction This function corrects the defect of image at run-time. It supports two modes. Those are “Manual” and “Auto” mode.2. Precautions

8 Avoid aiming the camera directly towards extremely bright objects such as sun,as this may damage the CMOS image sensor.

9 Do not use the camera in the extreme environments.- Extremely hot or cold place such as radiators, heat registers(Operating condition -10℃ ~ +50℃, under 90% humidity)- Close to generators of powerful electromagnetic radiation.- The place which is subject to light reflections, unstable lighting conditions,strong vibration.

10. Remove dust or dirt on the surface of the CMOS with a blower.

11.Do not apply excessive voltage. (Operating Power Input : DC 8V ~24V)

12 The following phenomena that may appear in images are specific to CMOS.They do not indicate malfunctions.- White Flecks : The fleck especially tend to be seen when operation at a highenvironmental temp. or when you have raised the master gain anduse in sense-up function.
