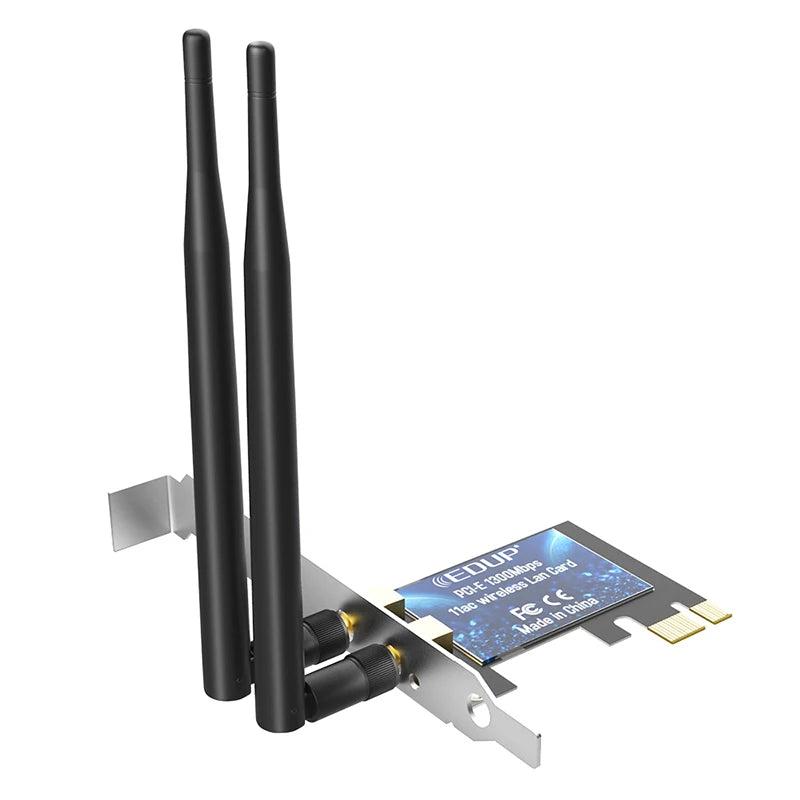

EDUP 1300Mbps PCI Express wireless Adapter Network Interface card
- pci express wifi adapter
-
pci express wireless adapter
-
pci express network card
Features
Standard: 802.11b/g/n/ac
Transmission Rate: 867Mbps + 300Mbps
2.4GHz/ 5.8GHz Dual Band
Encryption: WPA-PSK, WPA2-PSK, WPA/WPA2-PSK, WEP
Maximum Transmit Power: 20dBm
Support System: Windows XP, 7, 8, 8.1, 10
Specifications
| Model No. |
EP-9607 |
| Realtek |
RTL8812AE |
| Standard |
IEEE802.11ac,IEEE802.11n,IEEE802.11b,IEEE802.11g,IEEE802.11a |
| PCI |
PCI EXPRESS X1 |
| Sensitivity @PER |
5G 11ac VHT80M MCS9:-55dBm @10% PER HT40M MCS7: -65dBm @10% PER HT20M MCS7: -68dBm @10% PER 2.4G 11n HT40M MCS7: -65dBm @10% PER HT20M MCS7: -68dBm @10% PER OFDM 54M:-70dBm@10% PER 11b 11M:-81dBm@8% PER |
| RF Power | 20dBm(Maximum) |
| Antenna |
External 2*6dBi dual band antenna |
| Transmitting rate |
2.4G Max 300Mbps 5G Max 867Mbps |
| Support systems |
Microsoft Windows 7 32/64,Windows 10 32/64 |
| LED |
Link/Act |
| Environment |
working temperature:0℃~40℃ Storage temperature:-40℃~70℃ Operating Humidity:10%~90% RH (Non Condensing) Storage Humidity:5%~90% RH (Non Condensing) |
