JMKE GB37R-520 12V 24V dc generator motor for led light dc motor gearbox
Share

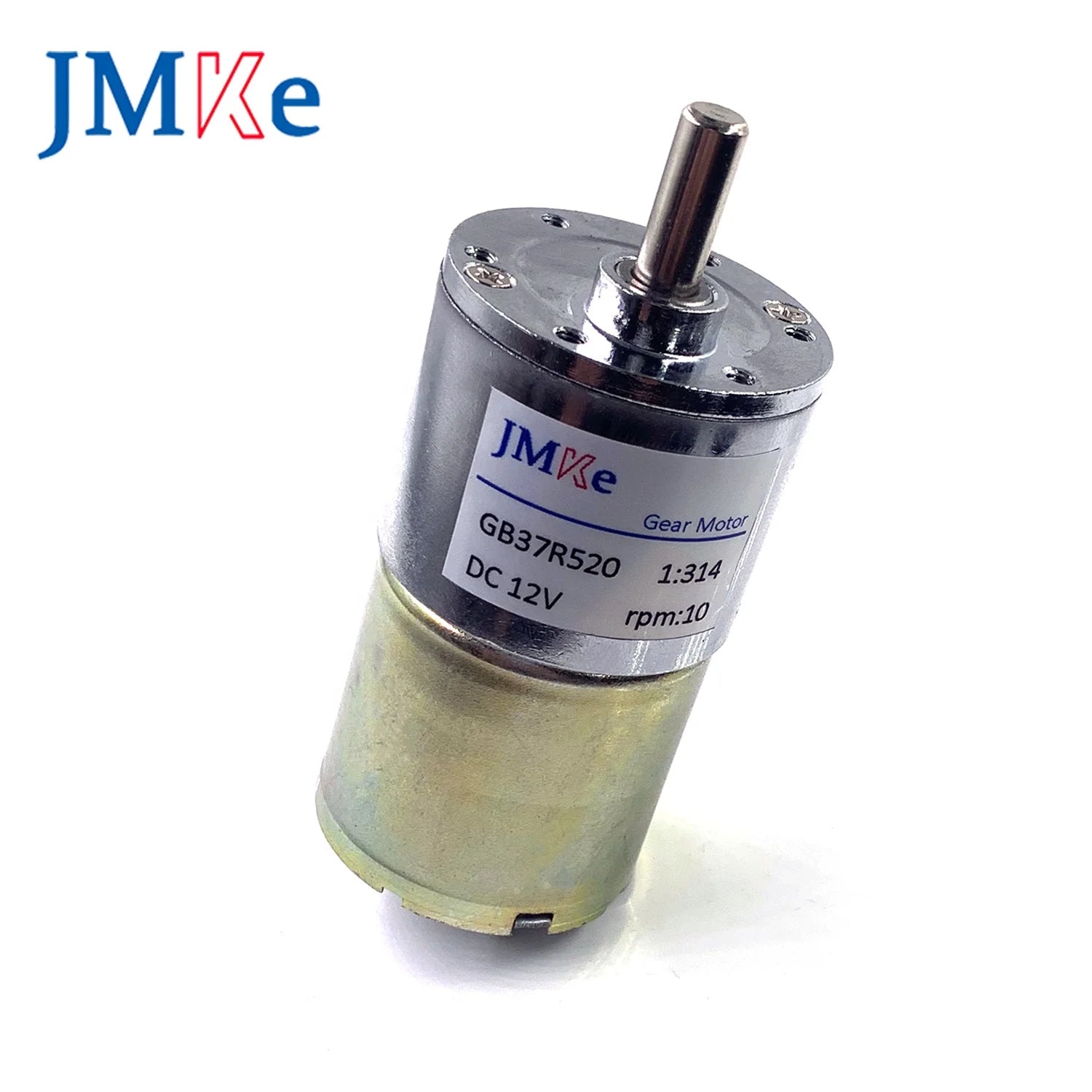

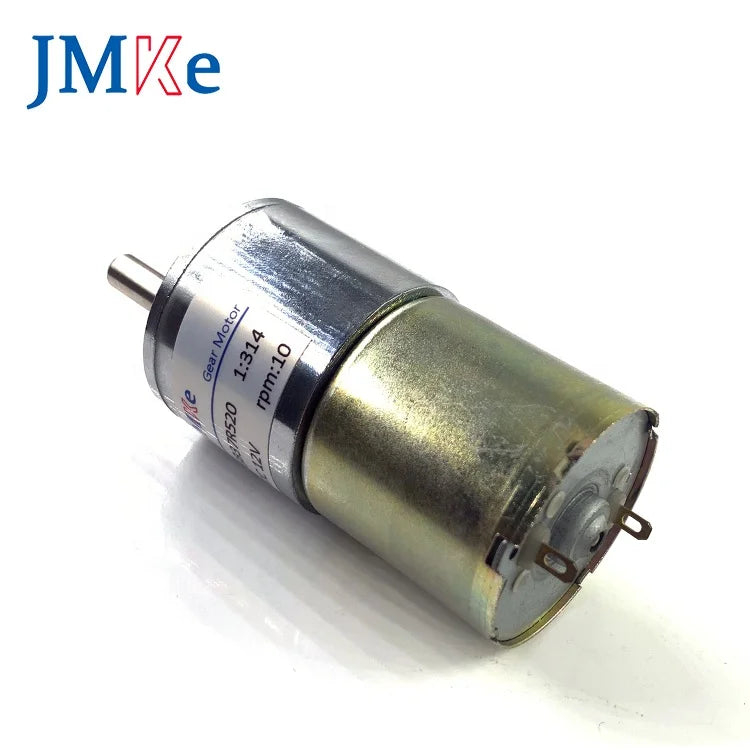

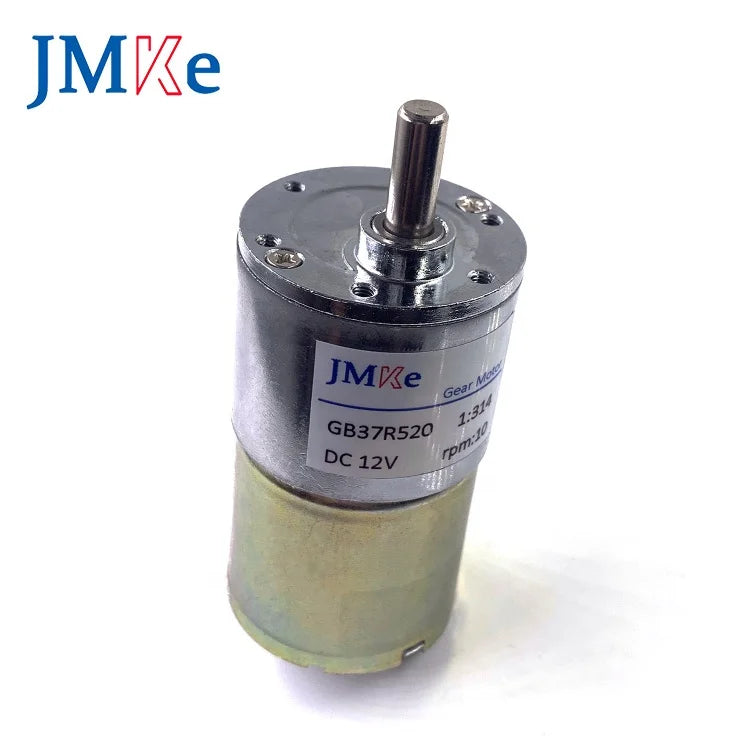

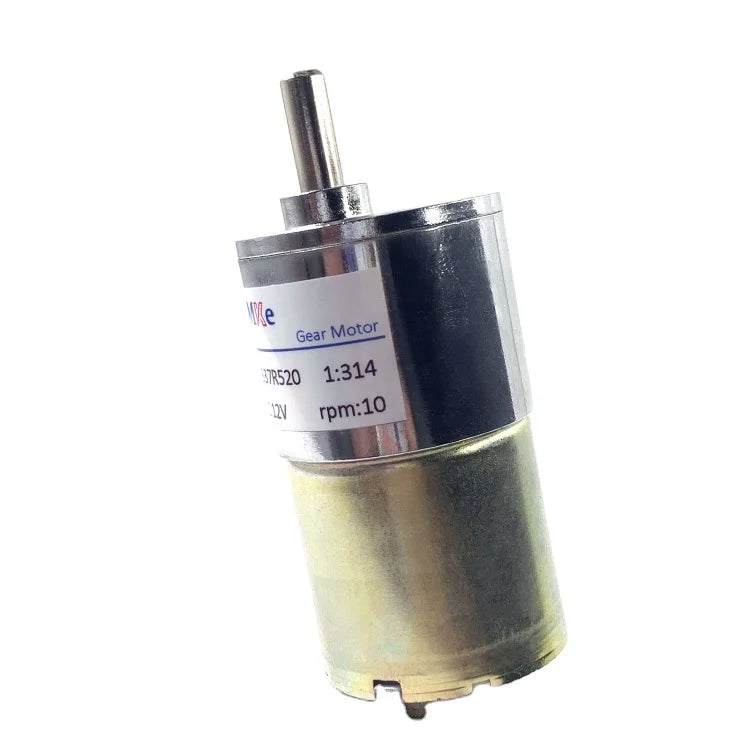

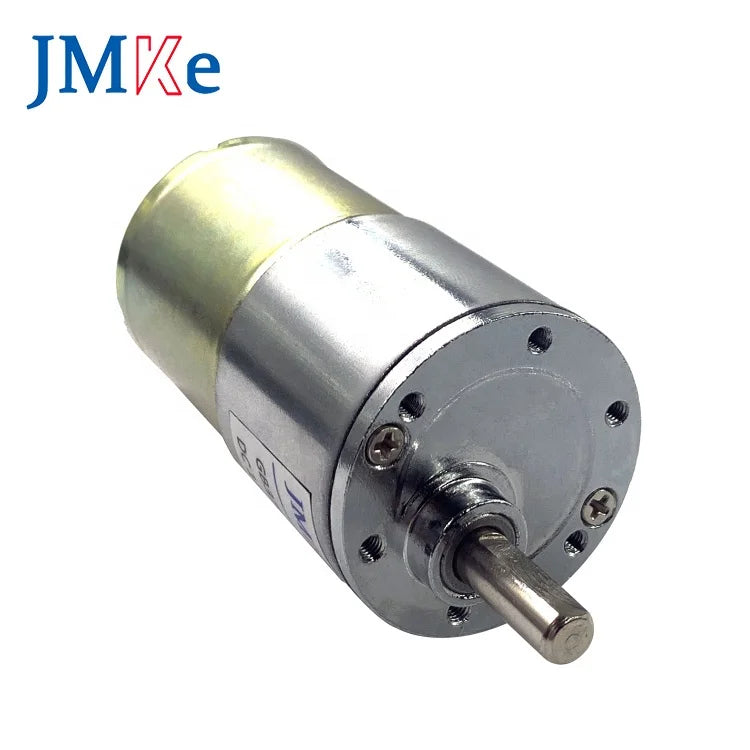

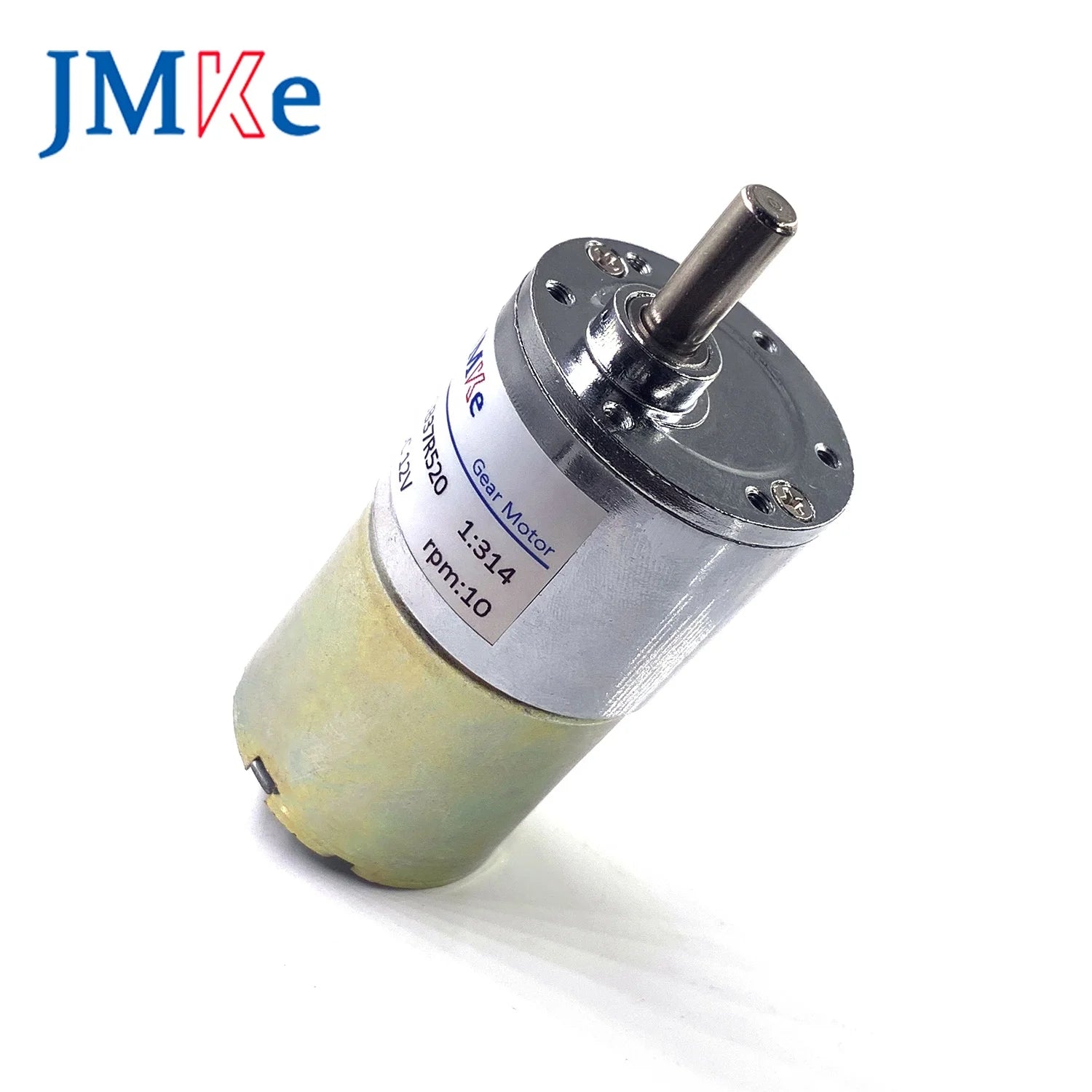

JMKE GB37R-520 12V 24V Brushed DC Motor for Toys 37mm dia DC MOTOR
Micro gear motor with low noise and high torque
Solidly constructed and ready to install in numerous applications.
| Motor |
Speed ratio |
1/7.5 |
1/13.5 |
1/31 |
1/64 |
1/111 |
1/171 |
1/314 |
1/981 |
| PMDC-520 |
No Load (r/min) |
460 |
255 |
110 |
54 |
31 |
20 |
11 |
4 |
| Load (r/min) |
375 |
210 |
90 |
44 |
25 |
17 |
9 |
3 |
|
| Rated Torque(kgf.cm) |
0.35 |
0.55 |
1.1 |
2.1 |
3.7 |
5.1 |
8 |
10 |
|
| PMDC-520 |
No Load (r/min) |
665 |
370 |
160 |
78 |
45 |
29 |
16 |
5 |
| Load (r/min) |
555 |
310 |
135 |
65 |
38 |
24 |
14 |
5 |
|
| Rated Torque(kgf.cm) |
0.37 |
0.5 |
1.15 |
2.2 |
3.9 |
5.4 |
8 |
10 |
Application:
Typical applications include factory automation machinery, labeling machinery, machine tools, material handling machinery, packaging machinery, printing machinery, robotics, x-y tables, textile machinery, applications which require smooth operation or applications which have medium to high reflected load inertias.
Φ= 37mm
Installation Dimension:M4, Φ31mm
Central Output Shaft, Length=15mm
| Speed ratio |
L |
Deceleration level |
Rated torque |
|
| mm |
mN.m |
kgf.cm |
||
| 1/7.5 |
23 |
3 |
147 |
1.5 |
| 1/13.5~1/20 |
23 |
4 |
245 |
2.5 |
| 1/31~1/57.7 |
25 |
5 |
392 |
4 |
| 1/64~1/148 |
27 |
6 |
588 |
6 |
| 1/171~1/382 |
30 |
7 |
784 |
8 |
| 1/516~1/981 |
31 |
8 |
980 |
10 |
SPEED ADJUSTABLE - The speed can be adjusted by dc motor speed controller.
If you need a lower or higher speed motor, please choose the right rpm to meet your needs. This motor is reversible so that you can switch positive and negative.
Please offer below information
| Voltage |
Current |
Diameter of motor |
Brushed/Brushless |
Torque |
Output Speed |
| (V) |
(Am) |
(mm) |
|
(N.m) |
(r/min) |
 |
 |
 |
 |
| GB102F-555 | GA25R-370 | PMDC80SF | PMDC 38S |
