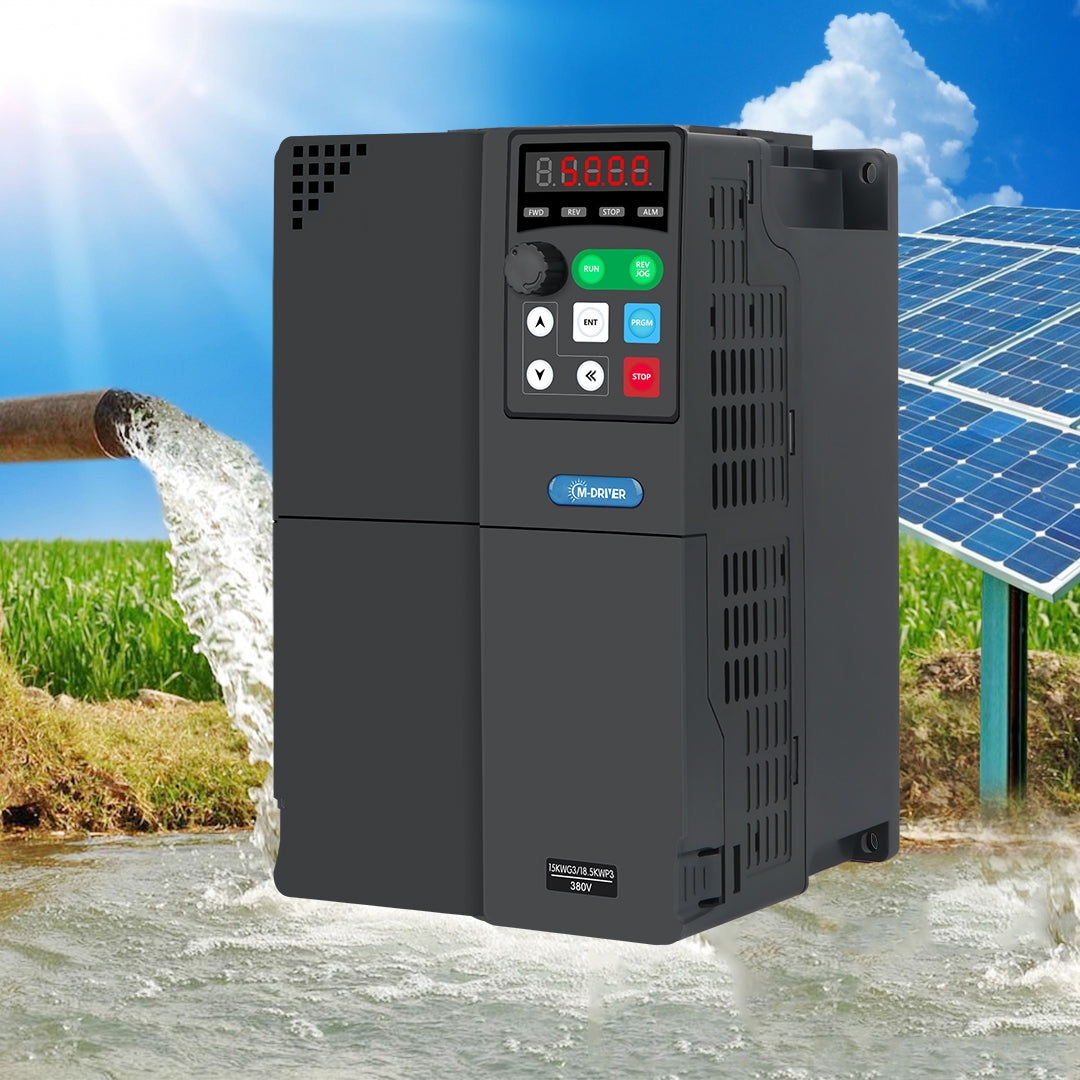

Hybrid solar water pump inverter 15hp vfd drives with MPPT control
Save -54%
Rs. 70,625.80
Rs. 155,000.04
HURRY ! ONLY
9999 LEFT IN STOCK.
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Product Description
|
Model
|
PV500-0110G2
|
|
|
11kw/15hp/45A
|
|
|
150V-400V DC
|
|
Recommended MPPT voltage
|
250V-350V DC
|
|
Grid or backup generator input
|
three phase 220V(-15%~30%)
|
|
Rated ouput Power
|
0-11kw
|
|
|
3PH 220V AC
|
|
Output Frequency
|
0-500.00Hz(default 0-50Hz)
|
Solar Pumping System Introduction
M-driver Power solar pumping system consists of solar pumping inverter, pump and PV array. Consider that storing water is more efficient than storing electricity, the system is designed to directly drive the pump without battery which can reduce the construction and operating cost and routine maintenance effectively.
Solar pumping inverter can implement the control of the whole system operation, which drives the pump by converting DC power produced by the PV array to AC power. This inverter can adjust the output frequency according to the solar irradiation intensity in real time to implement the MPPT (maximum power point tracking).
Solar pumping inverter can implement the control of the whole system operation, which drives the pump by converting DC power produced by the PV array to AC power. This inverter can adjust the output frequency according to the solar irradiation intensity in real time to implement the MPPT (maximum power point tracking).
M-driver solar pump inverter features
1. Support broad voltage and power range
single phase 220V and 3 phase 220V/380V pumps, the power from 0.4kw to 315kw.
single phase 220V and 3 phase 220V/380V pumps, the power from 0.4kw to 315kw.
2. Easy to use.
The solar pump inverter automatically start or sleep after being connected to solar panel without any parameter setting.
The solar pump inverter automatically start or sleep after being connected to solar panel without any parameter setting.
3. Mutiple protective measures
PV over-voltage protection, PV polarity reverse warning, auto derating against over-temperature.
PV over-voltage protection, PV polarity reverse warning, auto derating against over-temperature.
4. Advanced MPPT algorithms
With high accuracy MPPT algorithms, tracking the PV array output by the maximum power point, driving the pump motor to meet various pump applications in agriculture, irrigation etc.
With high accuracy MPPT algorithms, tracking the PV array output by the maximum power point, driving the pump motor to meet various pump applications in agriculture, irrigation etc.
5. Supports AC&DC input
The system is powered by the solar panels regularly. When the sunlight is not good, the system can also be powered by AC grid.
6.Dry protection
If there's no water in the ground, the water pump will stop working automatically and when the water comes, the system starts to
work automatically.
7. Auto sleep&Wake:
The pump will slow down automatically when the sunlight is weak , and it will sleep and wake automatically as the sunlight .
8. Smart water level control
The water level in the tank can also be controlled . The inverter will sleep when the water level is above maximum water level and it will wake up automatically when it's under the minimum water level. The maximum and minimum water level can be set by the user.
The system is powered by the solar panels regularly. When the sunlight is not good, the system can also be powered by AC grid.
6.Dry protection
If there's no water in the ground, the water pump will stop working automatically and when the water comes, the system starts to
work automatically.
7. Auto sleep&Wake:
The pump will slow down automatically when the sunlight is weak , and it will sleep and wake automatically as the sunlight .
8. Smart water level control
The water level in the tank can also be controlled . The inverter will sleep when the water level is above maximum water level and it will wake up automatically when it's under the minimum water level. The maximum and minimum water level can be set by the user.
Specification
|
PV500 Series Model NO.
|
Drive Motor
|
Power Capacity
|
Input Current
|
Output Current
|
Size
|
|||||
|
KW
|
KVA
|
A
|
A
|
mm
|
||||||
|
Single phase power supply: 220V, 50/60A
|
||||||||||
|
PV500-0007G1
|
0.75
|
1
|
4.2
|
4
|
170*86*131.5
|
|||||
|
PV500-0015G1
|
1.5
|
2
|
14
|
7
|
170*86*131.5
|
|||||
|
PV500-0022G1
|
2.2
|
3
|
23
|
10
|
170*86*131.5
|
|||||
|
Three phase power supply; 220V ,50/60hz
|
||||||||||
|
PV500-0040G2
|
4
|
5
|
18.1
|
16
|
221.6*113*166.5
|
|||||
|
PV500-0055G2
|
5.5
|
7.5
|
28
|
25
|
265*160*171.5
|
|||||
|
PV500-0075G2
|
7.5
|
10
|
37.1
|
32
|
265*160*171.5
|
|||||
|
PV500-0110G2
|
11
|
15
|
49.8
|
45
|
303*192*171.5
|
|||||
|
PV500-0150G2
|
15
|
20
|
65.4
|
60
|
349*227*171.5
|
|||||
|
PV500-0185G2
|
18.5
|
25
|
81.6
|
75
|
349*227*171.5
|
|||||
|
PV500-0220G2
|
22
|
30
|
97.7
|
90
|
303*192*171.5
|
|||||
|
PV500-0300G2
|
30
|
40
|
122.1
|
110
|
349*227*171.5
|
|||||
|
PV500-0370G2
|
37
|
50
|
157
|
150
|
349*227*171.5
|
|||||
|
PV500-0450G2
|
45
|
60
|
185
|
170
|
490*330*217
|
|||||
|
PV500-0550G2
|
55
|
70
|
215
|
210
|
690*370*350
|
|||||
|
PV500-0750G2
|
75
|
100
|
320
|
300
|
849*480*389
|
|||||
|
Three phase power supply: 380V ,50/60hz
|
||||||||||
|
PV500-0007G3
|
0.75
|
1
|
3.4
|
2.1
|
170*86*131.5
|
|||||
|
PV500-0015G3
|
1.5
|
2
|
5
|
3.8
|
170*86*131.5
|
|||||
|
PV500-0022G3
|
2.2
|
3
|
5.8
|
5
|
180*96*151
|
|||||
|
PV500-0040G3
|
4
|
5
|
10.5
|
9
|
180*96*151
|
|||||
|
PV500-0055G3
|
5.5
|
7.5
|
14.6
|
13
|
221.6*113*166.5
|
|||||
|
PV500-0075G3
|
7.5
|
10
|
20.5
|
17
|
221.6*113*166.5
|
|||||
|
PV500-0110G3
|
11
|
15
|
26
|
25
|
265*160*171.5
|
|||||
|
PV500-0150G3
|
15
|
20
|
35
|
32
|
265*160*171.5
|
|||||
|
PV500-0185G3
|
18.5
|
25
|
38.5
|
38
|
303*192*171.5
|
|||||
|
PV500-0220G3
|
22
|
30
|
46.5
|
45
|
303*192*171.5
|
|||||
|
PV500-0300G3
|
30
|
40
|
62
|
60
|
349*227*171.5
|
|||||
|
PV500-0370G3
|
37
|
50
|
76
|
75
|
349*227*171.5
|
|||||
|
PV500-0450G3
|
45
|
60
|
92
|
90
|
490*330*217
|
|||||
|
PV500-0550G3
|
55
|
70
|
113
|
110
|
490*330*217
|
|||||
|
PV500-0750G3
|
75
|
100
|
157
|
150
|
600*387*280
|
|||||
|
PV500-0930G3
|
93
|
125
|
180
|
170
|
600*387*280
|
|||||
|
PV500-1100G3
|
110
|
150
|
214
|
210
|
690*370*350
|
|||||
|
PV500-1320G3
|
132
|
175
|
256
|
250
|
690*370*350
|
|||||
|
PV500-1600G3
|
160
|
210
|
307
|
300
|
849*480*389
|
|||||
|
PV500-1850G3
|
185
|
250
|
385
|
340
|
849*480*389
|
|||||
|
PV500-2000G3
|
200
|
260
|
385
|
380
|
849*480*389
|
|||||
|
PV500-2200G3
|
220
|
300
|
430
|
415
|
849*480*389
|
|||||
|
PV500-2500G3
|
250
|
350
|
468
|
470
|
1060*650*392.5
|
|||||
|
PV500-2800G3
|
280
|
370
|
525
|
520
|
1060*650*392.5
|
|||||
|
PV500-3150G3
|
315
|
400
|
590
|
585
|
1362*818*404.5
|
|||||

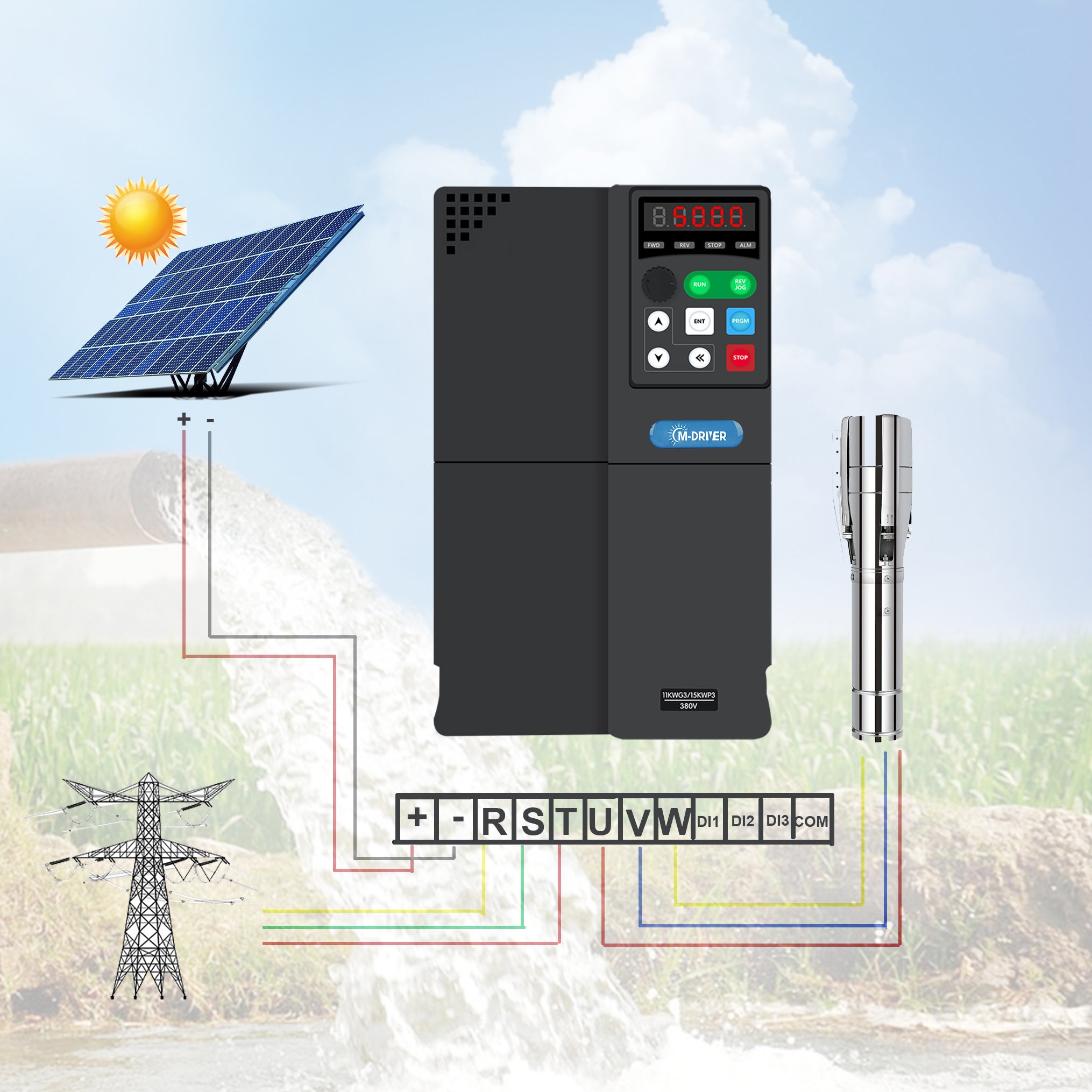

Connection diagram
