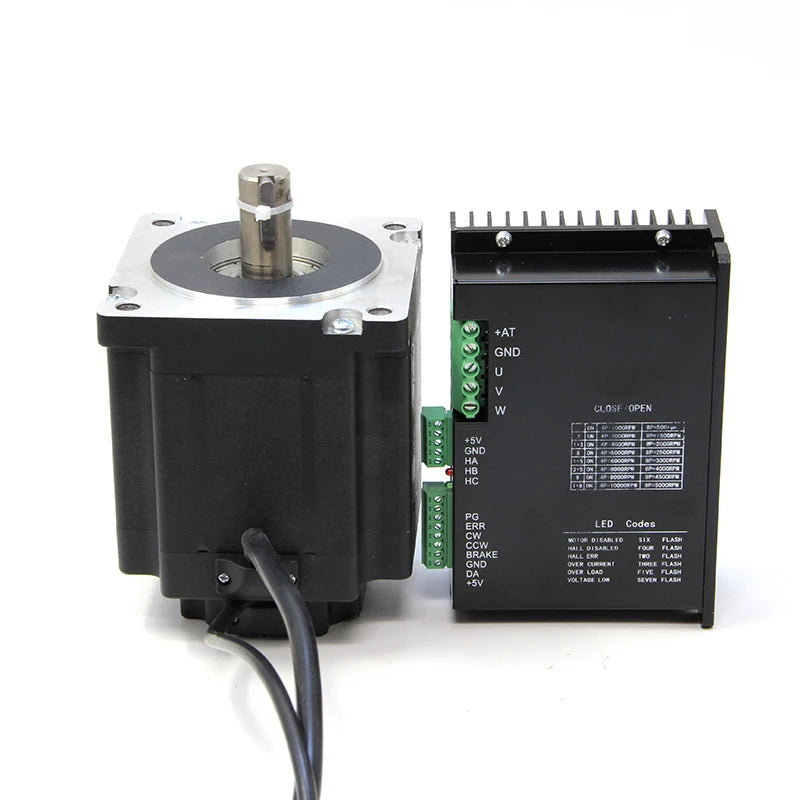

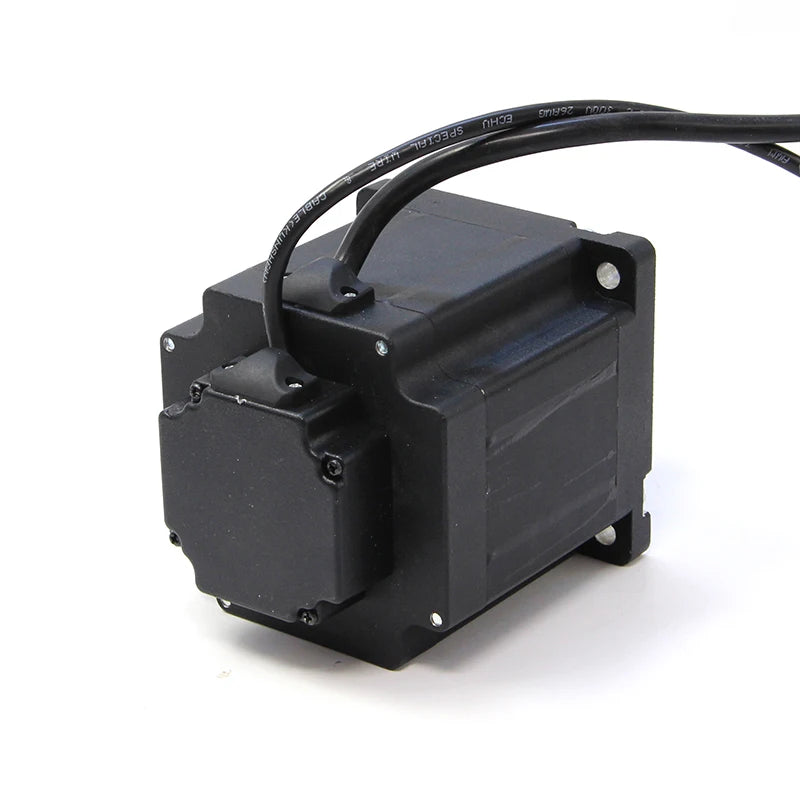

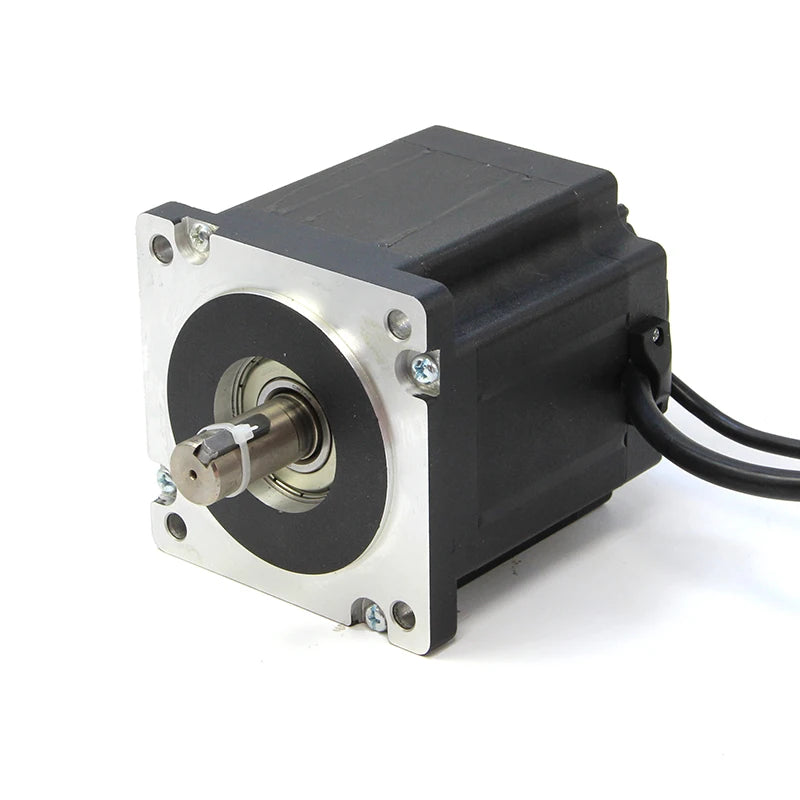

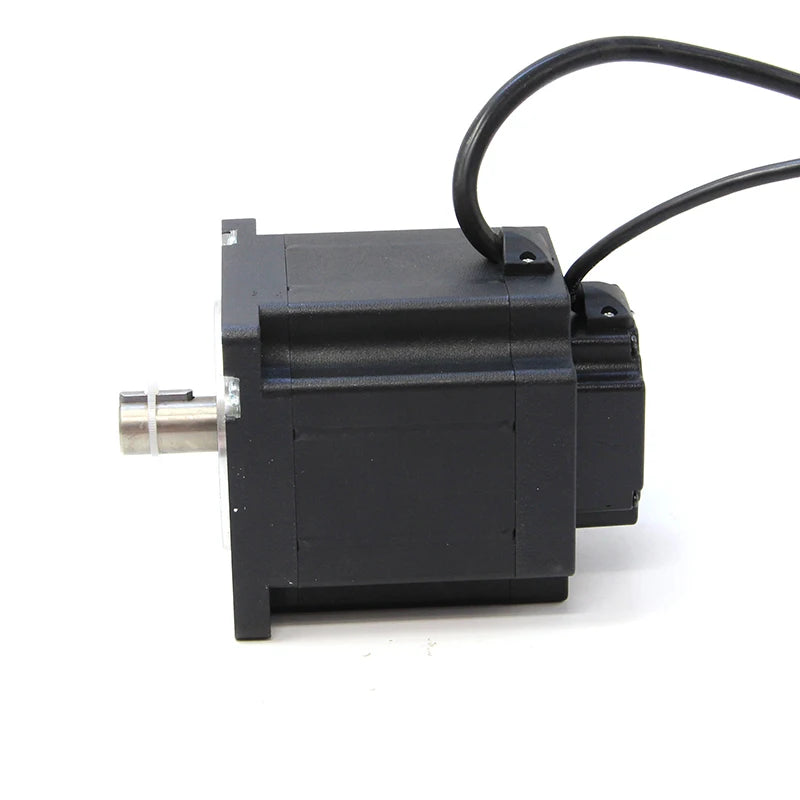

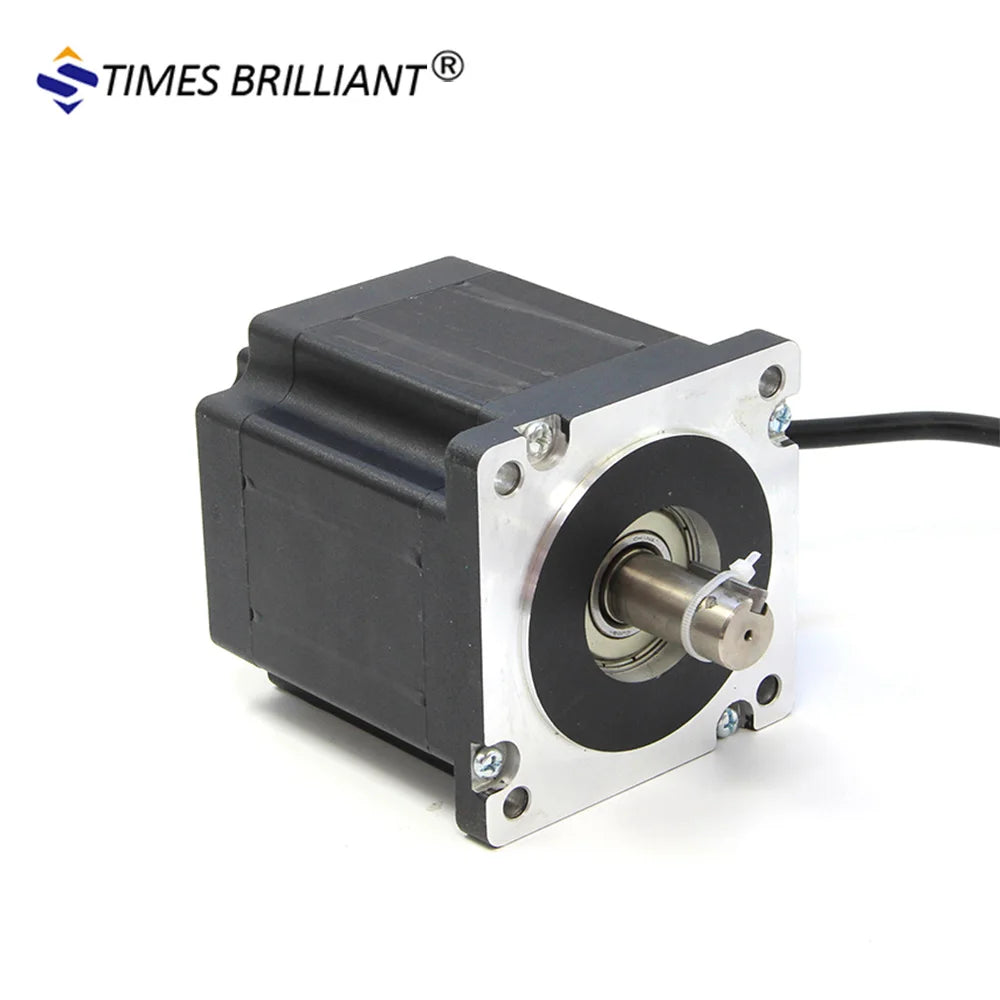

China motor supplier 3000RPM Permanent Magnet BLDC 48v 1KW 1000w long lifetime brushless dc motor kit



Save -56% Rs. 46,494.81 Rs. 104,613.32

Shanvis

6015848013089_94179936

100 In Stock Sold Out 100 100 99 100


HURRY ! ONLY 100 LEFT IN STOCK.

Voltage(V)
Output Power
Notify Me


Payment & Security
Payment methods
  • PayPal
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US



Our advantage:

1.  3-5days delivery time.

2.  48 hours testing before shipment.

3.  1 year quality assurance.



Your inquiry will be the first step for cooperation







Product Description







KeyWords Brushless DC Motor
Number of poles  8
Rated Voltage  48V
No Load Speed  4000±10%
No load current (Max)  2.5A
Rated Speed 3000±10%
Rated Torque 3.2NM
Rated power 1KW
Rated Current (Max) 28A
Peak Torque 9.6NM
Torque constant 0.12NM/A
Back EMF 8.4V/krpm
Rotor inertia 730kg.mm2
Body length 110mm
Mass 13.5Kg



Size







Wiring

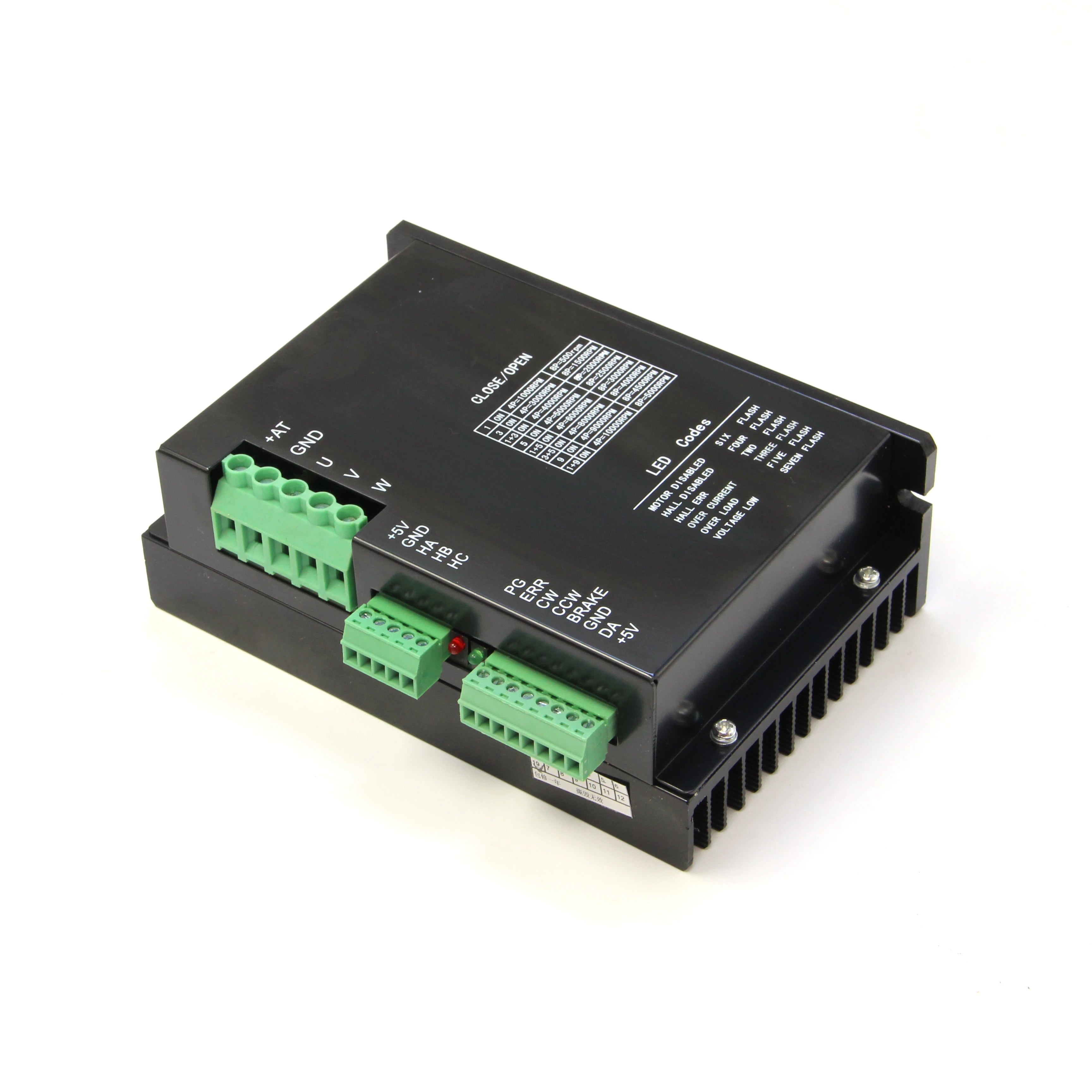

 Wiring of motor controller



the motor need the below controller to drive
