36V 48V 72V 1000W-3000W Brushless Electric Permanent Magnet bldc Motor Electric Scooter Brushless Motor Kit go Karts
Share
| Rated Speed(R/M) | Rated Current(A) | Rated Torque(N.M) | |
| 36V 1000W | 3100 | 27.7A | 5.7 |
| 48V 1000W | 3500 | 20.8A | 5.1 |
| 48V 1500W | 3750 | 30A | 5.1 |
| 48V 1600W | 3900 | 33A | 5.1 |
| 48V 20000W | 4300 | 33A | 6.9 |
| 60V 2000W | 4600 | 33A | 5.1 |
| 60V 2500W | 4600 | 33A | 5.1 |
| 72V 3000W | 490027.7 | 50A | 5.4 |
| Used | Electric scooters, electric bicycles, | electric motorcycles | karts |
1.A:Frame dropout?
B:rear hub motor is 135mm,front hub motor is 100mm
2.A:How much wheel size you need?
B:PLese tell us wheel size you need,because differernt wheel size,differernt freight cost.
We use 1.75-2.125 rim.If snow hub motor and big power hub motor for fat bike,use 4.0 rim.
You can choose single rim or doube rim.

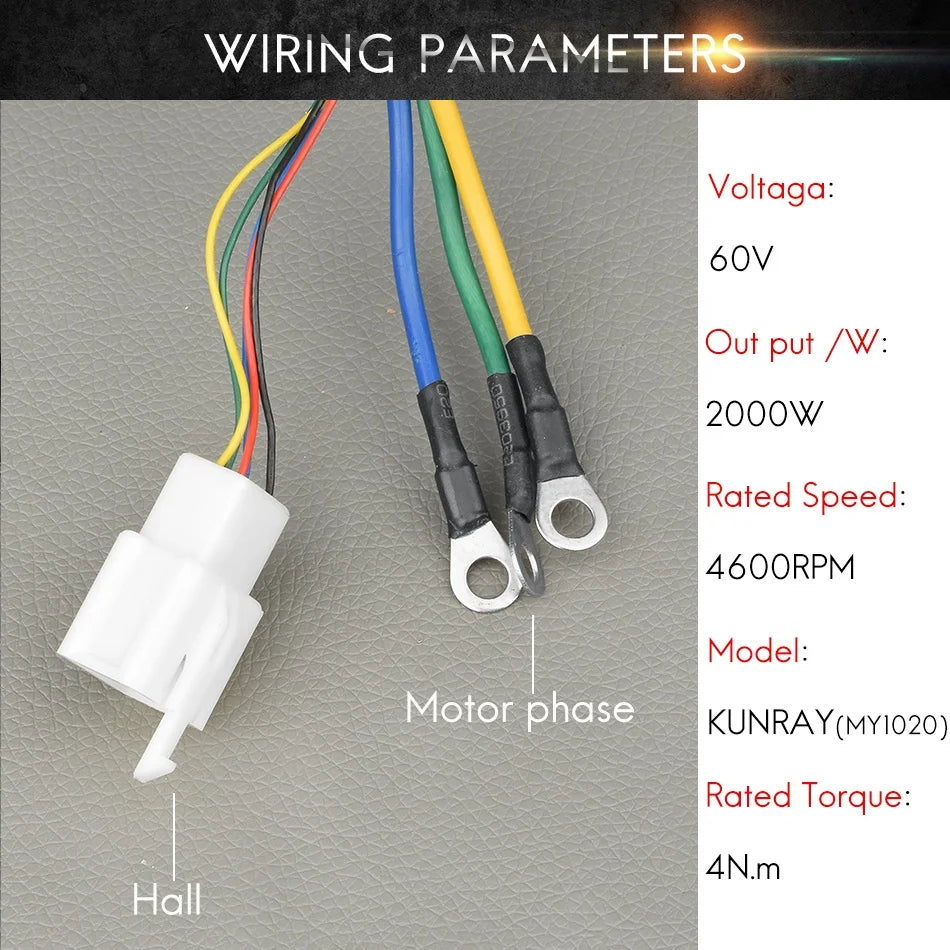

3.A:connected cables?
B:You can choose normal or waterproof cables,waterproof cables need to pay addtional charges.
4.A:Battery connector?
B:If you buy battery from other suppliers,please note battery conntector to connected with controller.
5.A:speed?
B: 25km/h,if you want to other speed,if possible for hub motor,it is ok according your requirements.
6.A:sample?
B:One sample is possible,you can try to test quality.100% payment before sample production.
7.A:choose motor specifications?
B:please tell us voltage/power/speed/wheel size/colour for hub motor,spoke,rim/front or rear;
We will recommend suitable hub motors for you.
8.A:ODM,OEM?
B:it is possible.
