EEL V3 Box Stackable Case Solar ESS DIY Box 280 304 306 314Ah 4A Active Balance Battery Box lifepo4 48V 280ah
New Arrivals !!! Really Wow DIY
6805930013089_113241552
6565 In Stock Sold Out 6565 6565 6565 6565 6565 6565 6565 6565 6565 6565
Share
|
Item
|
value
|
|
Place of Origin
|
China
|
|
Guangdong
|
|
|
Brand Name
|
EEL
|
|
Model
|

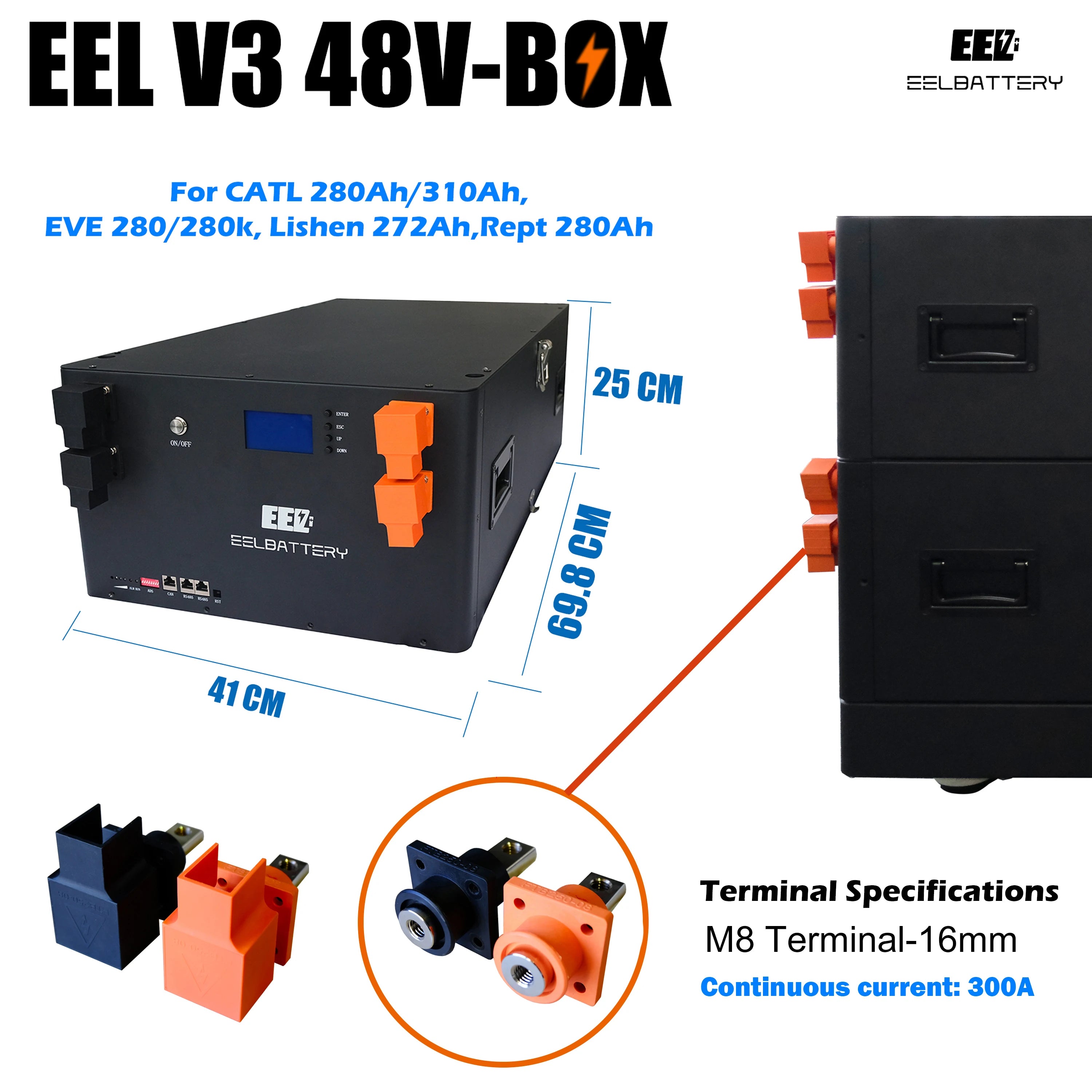

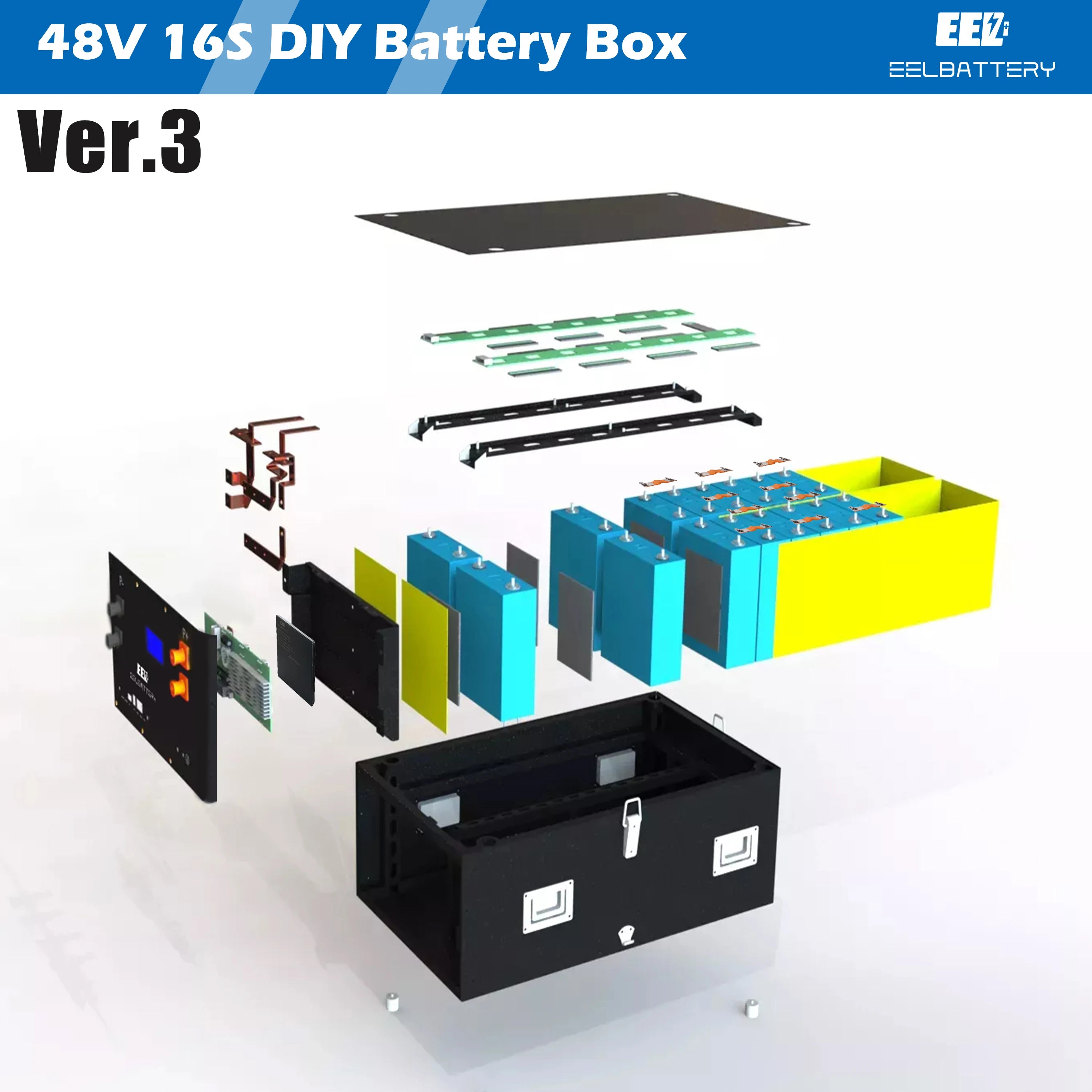

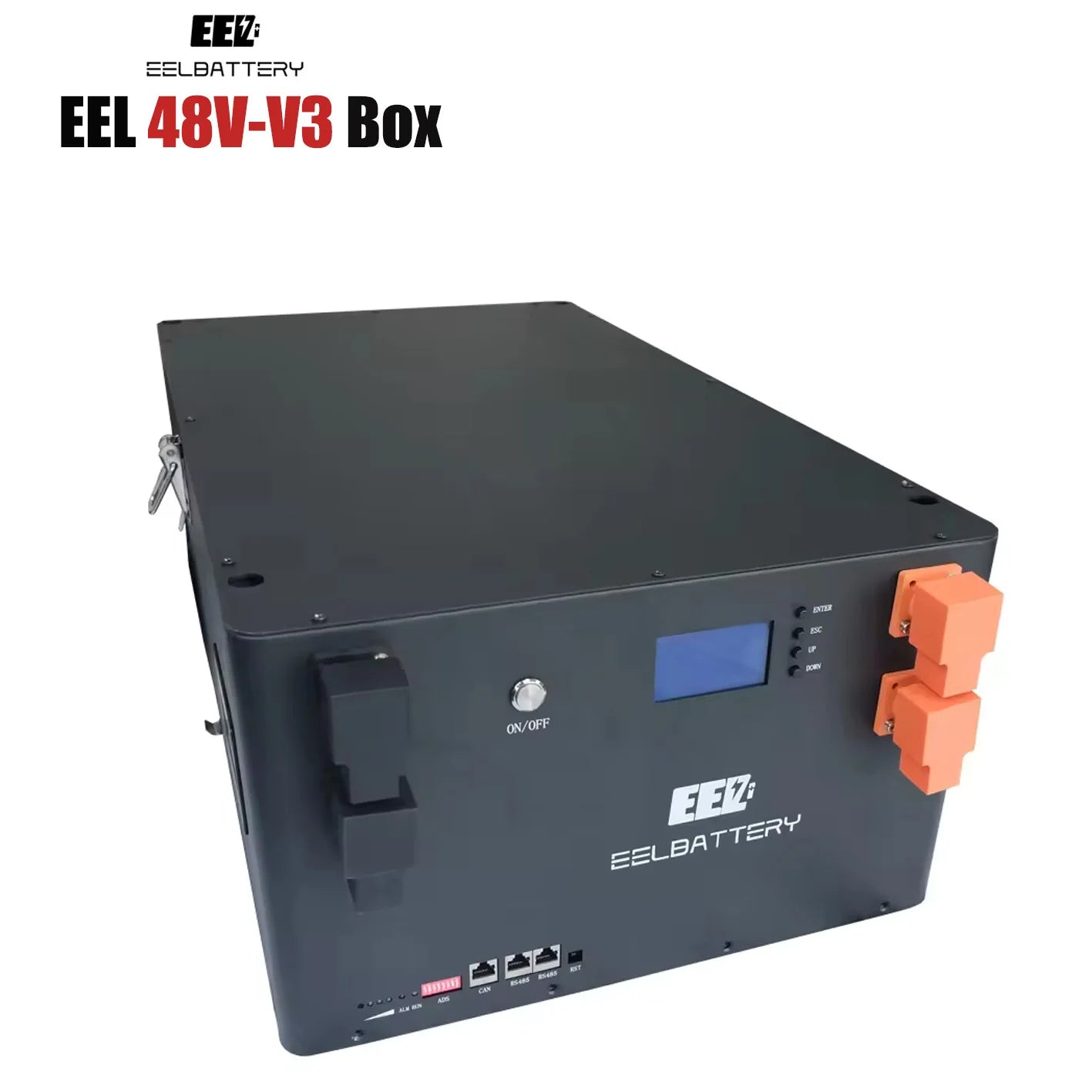

LFP 48V 16S DIY Rack Battery Box(V3 Model)
|
|
Battery Type
|
UPS RV Electric Boat Household Solar energy storage system
|
|
BMS
|

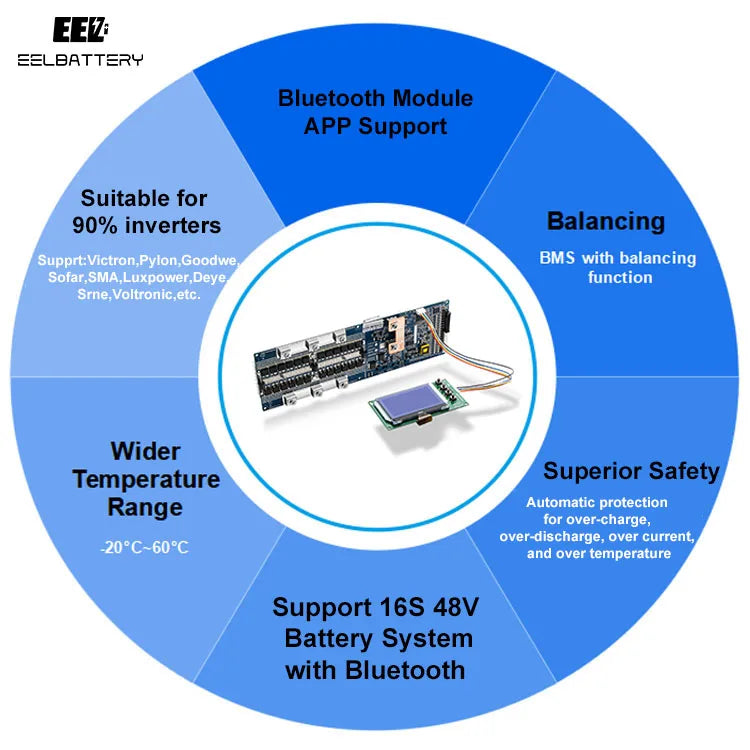

48V 16S 100A 150A 200A BMS(same as seplos 10E)
|
|
Fuse
|
100A bms-125A fuse,150A bms-180A fuse,200A bms-250A fuse
|
|
Active Balance Equalizer
|
LFP 4A 16-24S
|
|
200/230ah case weight
|
25kgs
|
|
280/302ah case weight
|
29kgs
|
|
200/230ah case Size
|
410*550*260mm
|
|
280/302ah case Size
|
410*680*260mm
|
|
Material
|
iron
|
|
Nominal Voltage
|
48V/51.2V
|
|
Continuously charging/discharging current of bms
|
100A 150A 200A
|
|
Communication protocol
|
CANBUS（default）or RS485
|
|
Custom function
|
Heating function、External switch
|
|
Compatible inverter brand
|
Growatt Victron Deye PYLON SMA and others （＞95%)
|
|
Working temperature
|
-20℃-70℃
|
|
Battery Pack Type
|
Stackable
|
|
Application
|
UPS RV Electric Boat Household Solar energy storage system
|
|
OEM/ODM
|
Support customization
|
|
Warranty
|
5 years
|
Super compatible application
|
Model
|
pallet with four wheels for LFP 48V 16S DIY Rack Battery Box
|
|
Application
|
load battery kit
|
|
Load Capacity
|
1000kgs
|
|
Pallet Size for 48V 16S 200/230ah baterry case
|
41*55*8cm
|
|
Pallet Size for 48V 16S 200/230ah baterry case
|
41*68*8cm
|
|
Pallet Weight for 48V 16S 200/230ah baterry case
|
12kgs
|
|
Pallet Weight for 48V 16S 280/302ah baterry case
|
13kgs
|
|
Material
|
iron
|
|
Sample OEM/ODM
|
Acceptable
|
Parts List(does not come with the battery cells)

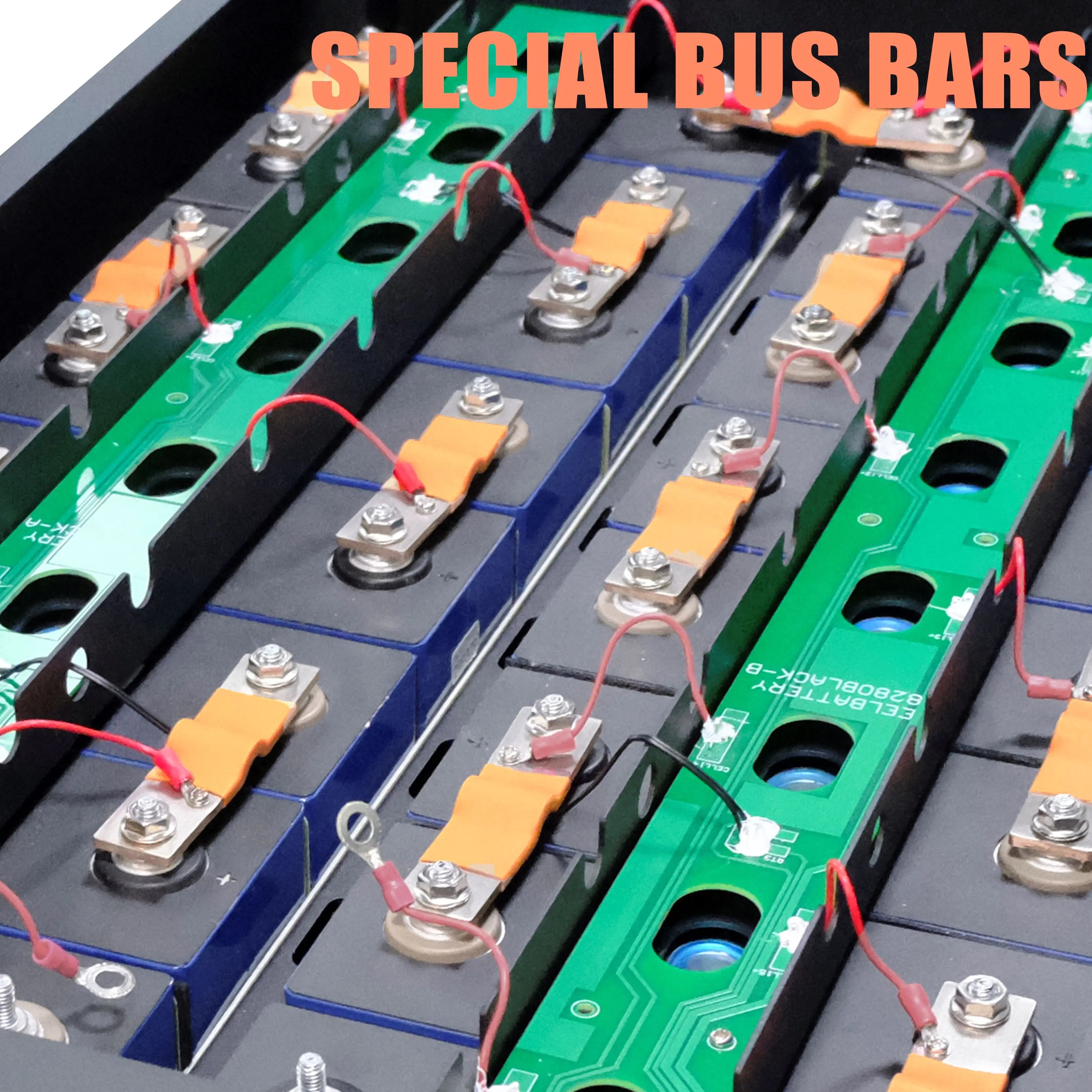

15 * Flexible bus bars (Cell connection)
