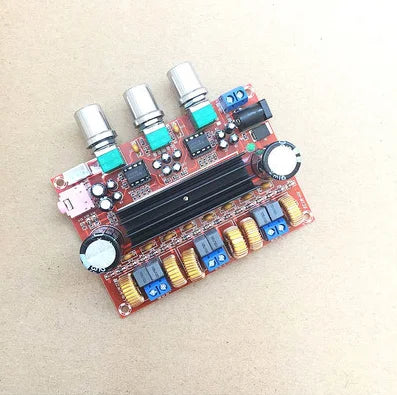

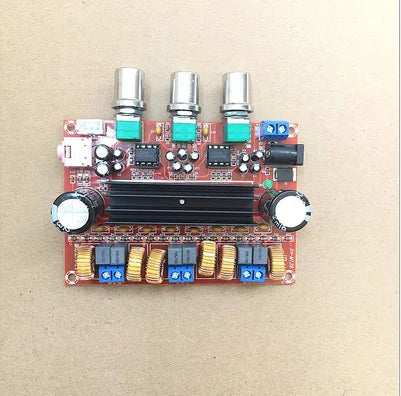

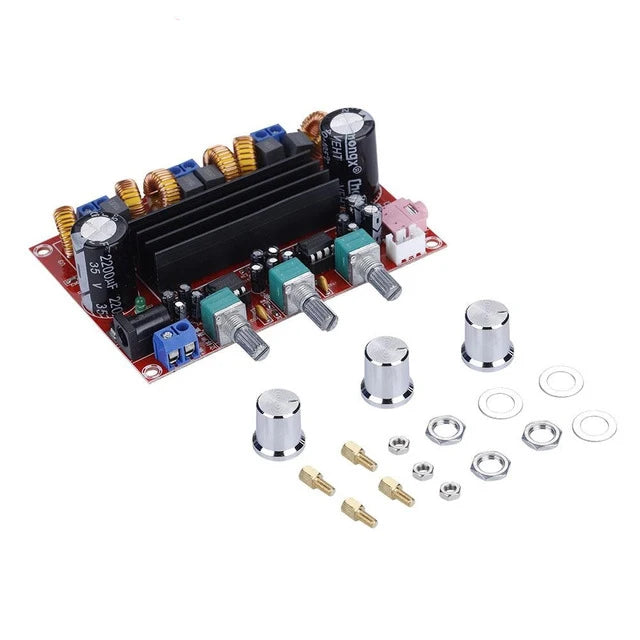

XH-M139 TPA3116D2 2x 80W +100W 2.1 Channel Digital Subwoofer Power Amplifier Board
Save -50%
Rs. 4,342.65
Rs. 8,607.74
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Features:
Adopts two high quality TPA3116D2 digital amplifier chips.
Sound quality is very good, high efficiency and amplifying power.
50W*2+100W 2.1 channels(left/right channel and subwoofer channel), high efficiency and low-heat.
Powered by DC 12-24V, wide input voltage.
User can adjust the volume by themselves easily.
Applicable speaker impedance: 4-8 ohm.
Just connect the power supply and loudspeaker box, enjoy the pure digital music!
Notice:
This amplifier board must be powered by DC power(DC12-24V), it's better to use high-performance switch power. Don't use transformer!
Specifications:
Supply Voltage: DC 12-24V
Chip: TPA3116*2

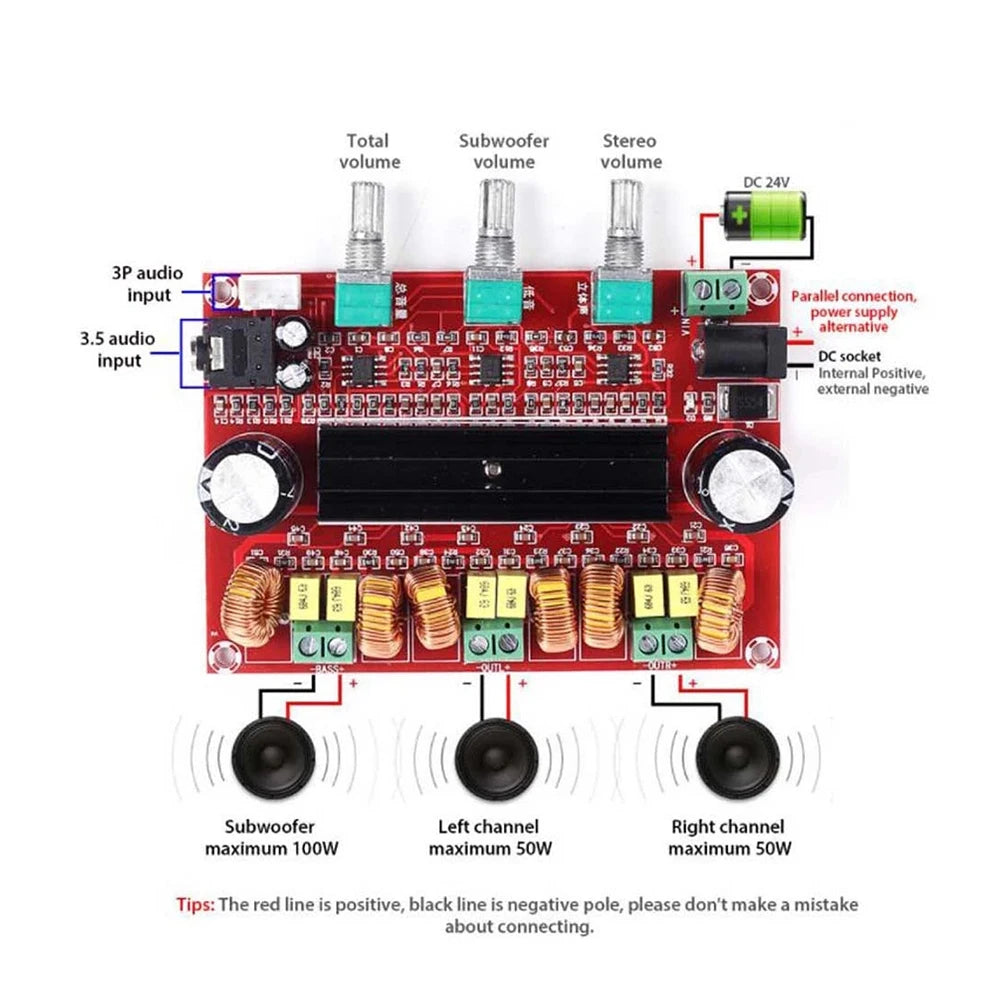

Channel Type: 3 Channels(Left Channel, Right Channel, Subwoofer)
Output Power: 50W*2 + 100W
Output Match: 4-8 ohm
Audio Output: Terminals
Frequency Response Range: 14-100KHz
SNR: 100dB
Switching Frequency: 1.2MHz
PCB Board Size: 100 * 70 * 30mm / 3.94 * 2.75 * 1.18in (L * W * H)
Weight: 113g / 3.98oz
Package Size: 13.5 * 11 * 5cm / 5.31 * 4.33 * 1.97in (L * W * H)
Package Weight: 178g / 6.3oz
Adopts two high quality TPA3116D2 digital amplifier chips.
Sound quality is very good, high efficiency and amplifying power.
50W*2+100W 2.1 channels(left/right channel and subwoofer channel), high efficiency and low-heat.
Powered by DC 12-24V, wide input voltage.
User can adjust the volume by themselves easily.
Applicable speaker impedance: 4-8 ohm.
Just connect the power supply and loudspeaker box, enjoy the pure digital music!
Notice:
This amplifier board must be powered by DC power(DC12-24V), it's better to use high-performance switch power. Don't use transformer!
Specifications:
Supply Voltage: DC 12-24V
Chip: TPA3116*2
Channel Type: 3 Channels(Left Channel, Right Channel, Subwoofer)
Output Power: 50W*2 + 100W
Output Match: 4-8 ohm
Audio Output: Terminals
Frequency Response Range: 14-100KHz
SNR: 100dB
Switching Frequency: 1.2MHz
PCB Board Size: 100 * 70 * 30mm / 3.94 * 2.75 * 1.18in (L * W * H)
Weight: 113g / 3.98oz
Package Size: 13.5 * 11 * 5cm / 5.31 * 4.33 * 1.97in (L * W * H)
Package Weight: 178g / 6.3oz
Specification
|
Product Name
|
XH-M139
|
|
Supply Voltage
|
DC 12-24V
|
|
Chip
|
TPA3116*2
|
|
Channel Type
|
3 Channels(Left Channel, Right Channel, Subwoofer)
|
|
Output Power
|
50W*2 + 100W
|
|
Output Match
|
4-8 ohm
|
|
Audio Output
|
Terminals
|
|
Frequency Response Range
|
14-100KHz
|
|
SNR
|
100dB
|
|
Switching Frequency
|
1.2MHz
|
