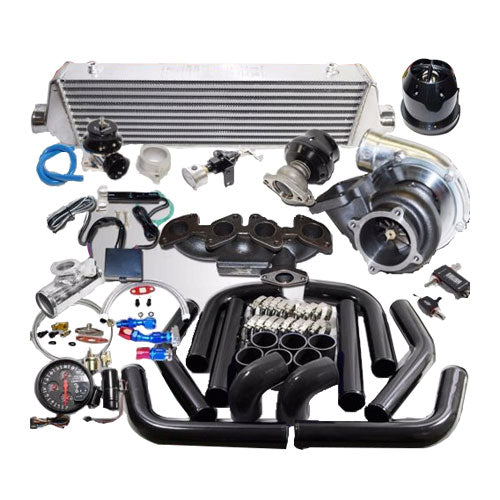

Wholesale Complete GT35 Turbo Kit for 87-92 VW Jetta/ Golf GLI 16-Valve 2.0L 1984CC T3 universal turbo kit
Share
Wholesale Complete GT35 Turbo Kit for 87-92 VW Jetta/ Golf GLI 16-Valve 2.0L 1984CC T3 universal turbo kit
- Application for :
-
1987-1992 VW Golf GTI 16-Valve Hatchback 2-Door 1.8L 1780CC l4 GAS DOHC Naturally Aspirated
1987-1992 VW Jetta GLI 16-Valve Sedan 4-Door 2.0L 1984CC 121Cu. In. l4 GAS DOHC Naturally Aspirated
1990-1992 VW Passat GL Wagon 4-D 2.0L 1984CC 121Cu
1990-1992 VW Passat GL Sedan 4-D 2.0L 1984CC 121Cu
1992 VW Passat CL Sedan 4-D 2.0L 1984CC 121Cu
1993 VW Passat GL Sedan 4-D 2.0L 1984CC 121Cu
Overall Length 27"
Core Length 21"
Overall Height 7"
Overall Width 2.5"
Both Inlet/Outlet ports are 2.5"
Compress Air Flow Rate <350Cubic Feet/Min, Rated up to500 Max HP
Working Pressure 5~50PSI
Pressure Drop 2~5psi@35psi; 0.2~0.5psi@15psi
Design Delta Fin
Construction Machine Cut and Stamped, Hand Welded

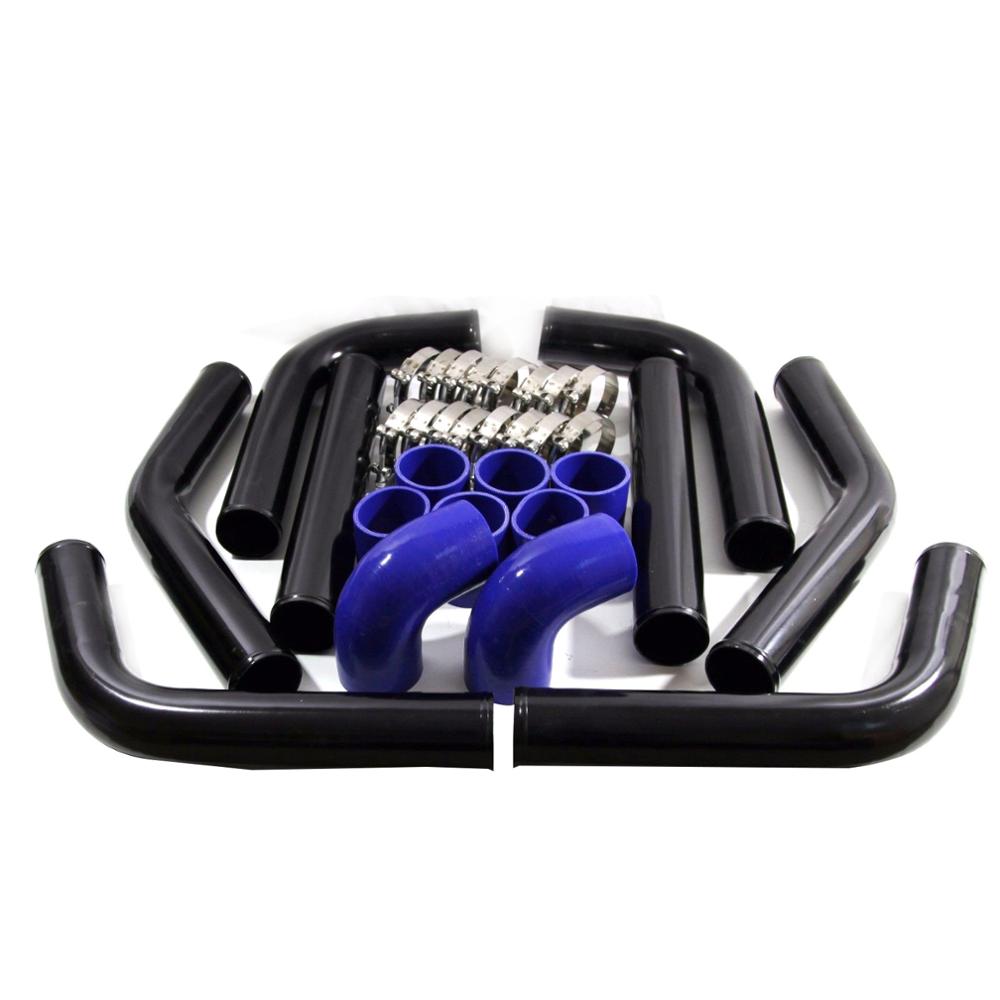

Intercooler Piping Kits
Universal Aluminum Piping kits, NOT BOLT ON
Made of High Quality T6061 Aluminum.
2.5" ID, increase more airflow, support up to 600 HP
Comes with silicones and SS T-bolt clamps
38MM Adjustable Wastegate
Adjustable,4/6/8/10 PSI
High Polish Finish
CNC Machined
Proven Accuracy

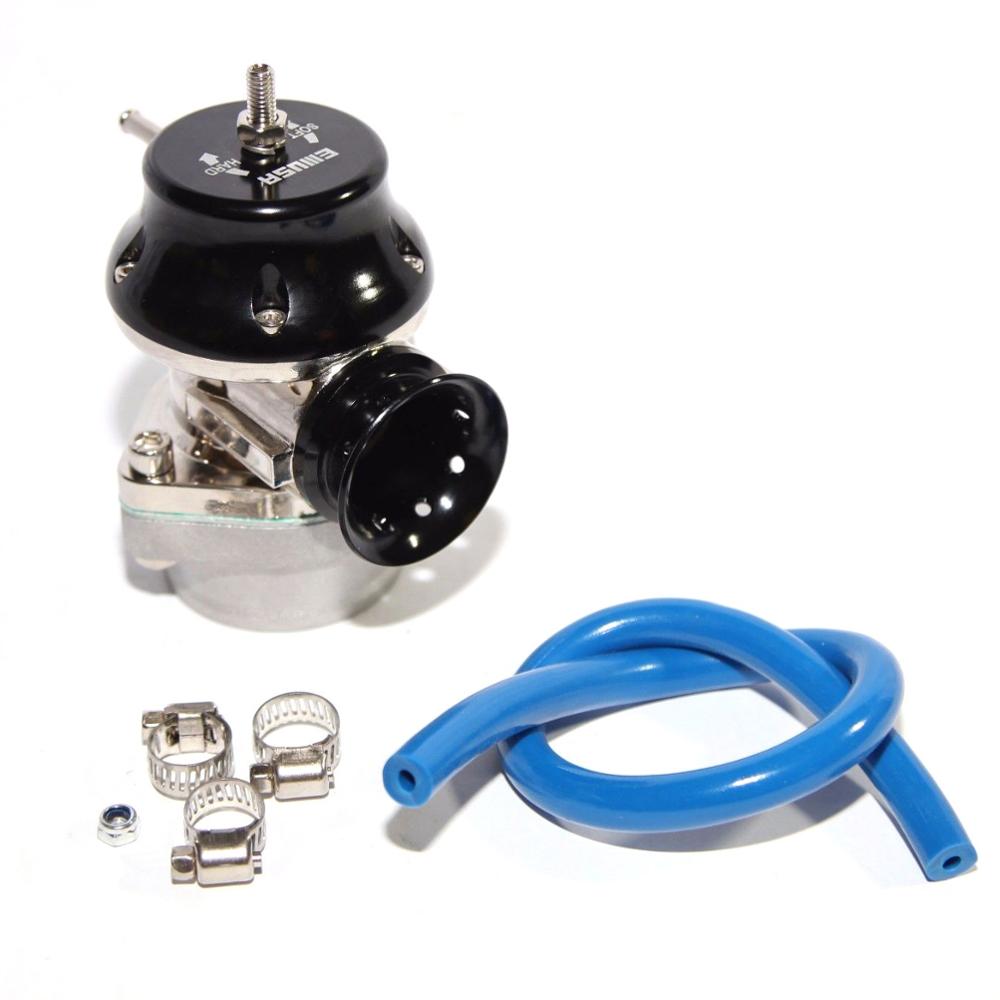

EM RS Blow off Valve
Made of High Quality CNS Billet Aluminum
2.5" Blow off Valve Adapter
Cast Iron Turbo Manifold
T3/T4 Turbocharger Compatible Flange
Flanged for .35/.38 MM wastegate
4" Inlet and 2.5" Outlet

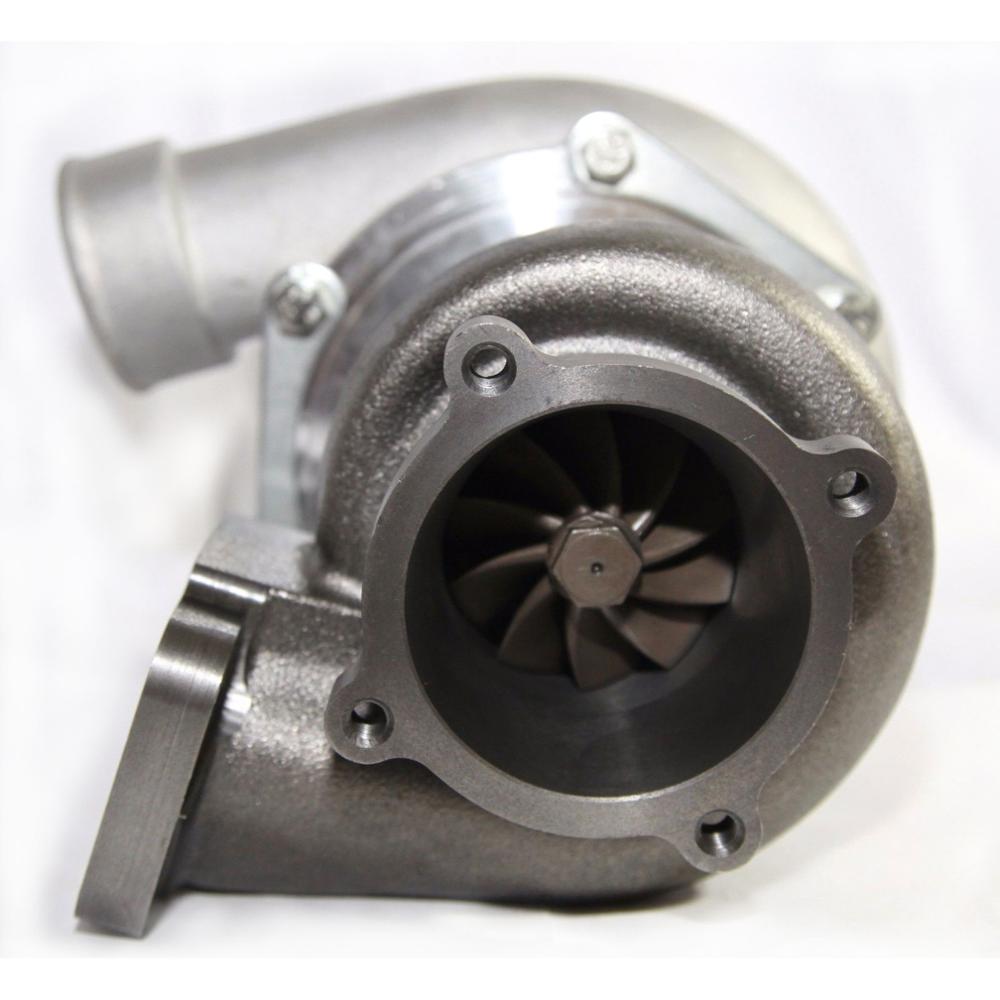

Wet Float Bearing
T3 Flange
Compressor
EXD: 3.23"
IND 2.42"
Trim: 56
A/R: 0.70
Blades: 6 short, 6 long
Turbine
EXD:2.45"
IND:2.68"
Whl DIA: 68.00mm
Trim: 84
A/R: 0.63
Blades: 10
4 Bolt Standard Hot Side
