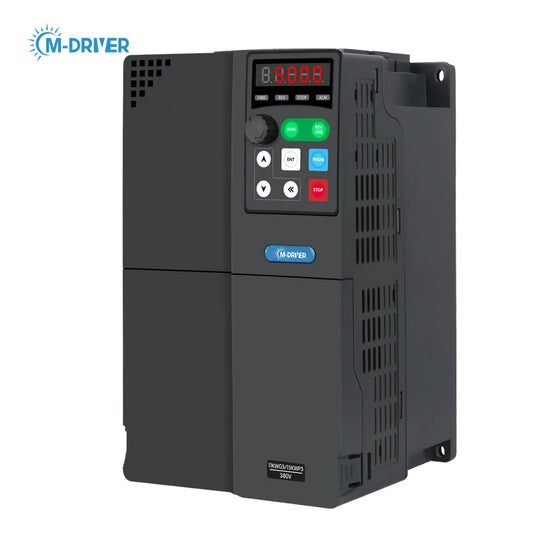

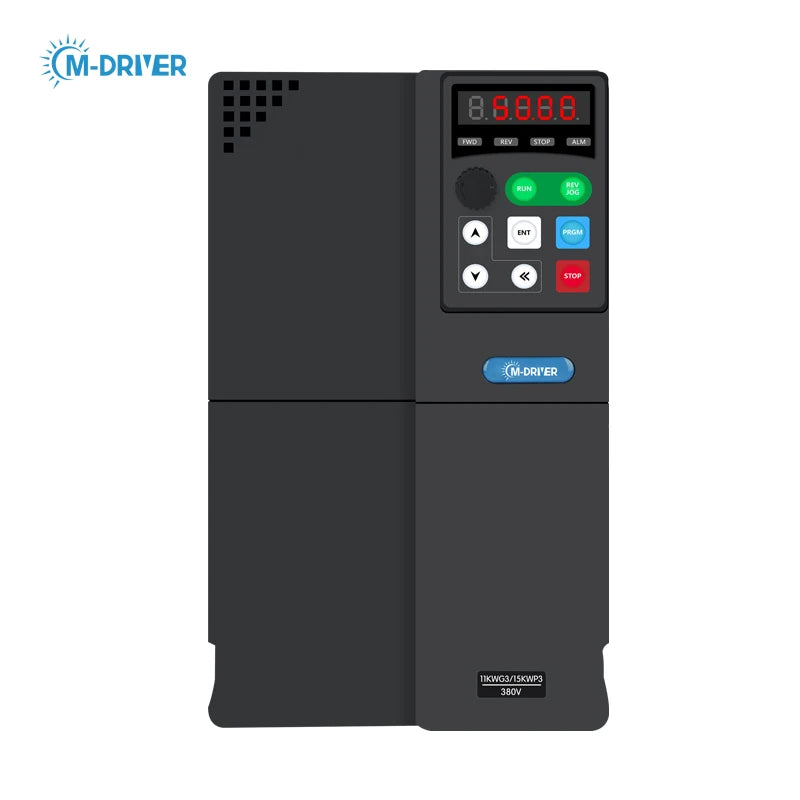

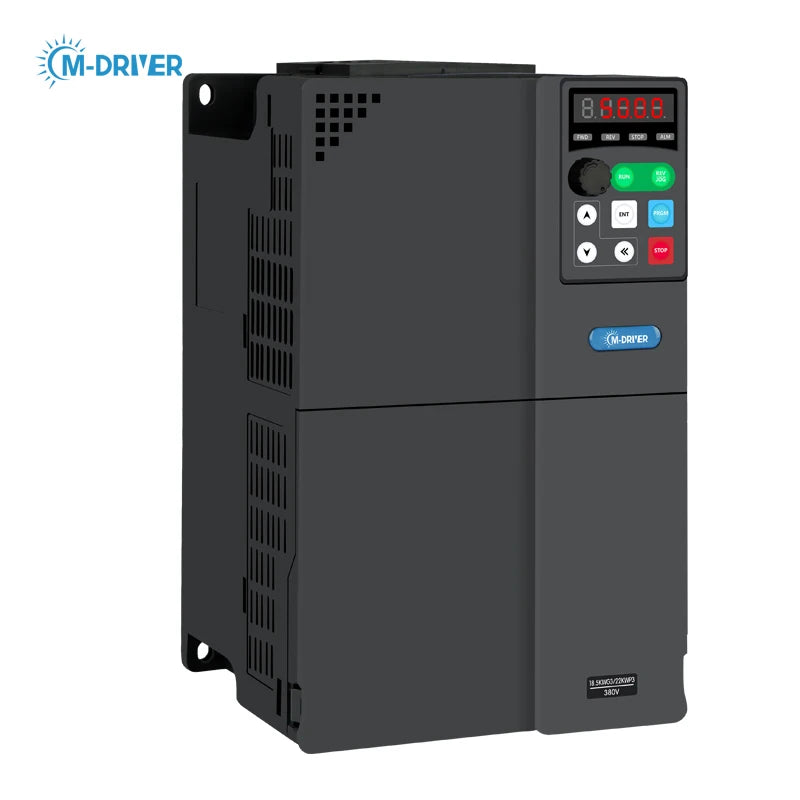

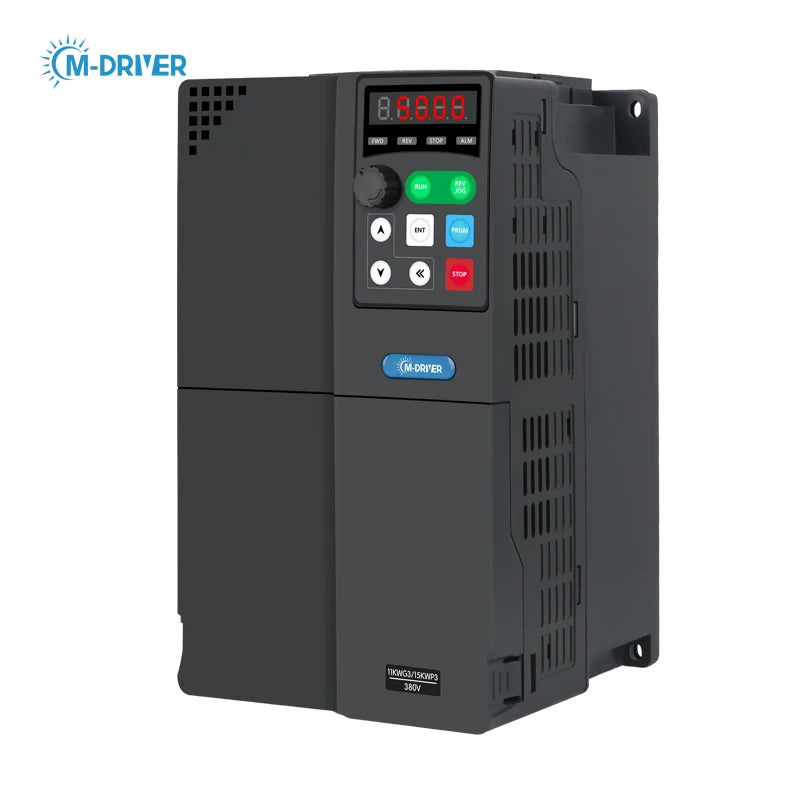

M-driver Water Pump Pressure Inverter Magnetic Pump Drive Variateur De Frequency 380v
| Model | 900-0185G3 |
| Rated Voltage | 380V/440v |
| Output Frequency Range | 0-500hz |
| Control Mode | V/F Control,vector control,torque control |
| Communication port | RS485 modbus |
| Vibration | Less than 5.9m/s |
| IP Level | IP20 |
| Protection function | short circuit,phase loss,overcurrent,over voltage,under voltage,overheating,overload,etc |
| Item | Specifications | |
| Basic function | Over load capability | G type:150% rated current 60s;180% rated current 3s |
| P type:120% rated current 60s;150% rated current 3s | ||
| Torque boost | Auto torque boost function; Manual torque boost 0.1%~30.0% | |
| V/F curve | Linear V/F, multi-point V/F and square V/F curve(power of 1.2,1.4,1.6,1.8,2) | |
| V/F separation | 2 ways: separation and semi-separation | |
| Acc./dec curve | Straight line or S curve acceleration and deceleration mode,time range between 0.0 to 500.0s | |
| DC braking | DC braking frequency:0.00Hz to maximum frequency. Braking time:0.0s to 36.0s | |
| Brake current value:0%-100% | ||
| Jog control | Jog frequency range:0.00Hz~50.00Hz; | |
| Jog acceleration/deceleration:0.0s~6500.0s. | ||
| Basic function | Multiple segment speed running | It can realize at maximum of 4 segments speed running via the control terminal. |
| Built-in PID | It is easy to realize process-controlled closed loop control system. | |
| Over-voltage/current stall control | It can limit the running voltage/current automatically and prevent frequent over-voltage/current tripping during the running process. | |
| Personalized function | Instantaneous stop non-stop | When instantaneous power off, voltage reduction is compensated through load feedback energy, which could make AC Drive keep running in a short period of time. |
| Rapid current limit | To avoid AC Drive frequent over-current fault. | |
| Timing control | Timing control function:set time range 0Min~6500.0Min. | |
| Running | Command source | Operation panel reference, control terminal reference and serial communication port reference. |
| Frequency source | Digital reference, analog signal reference , Multi-Segment speed reference, PID and communication reference. | |

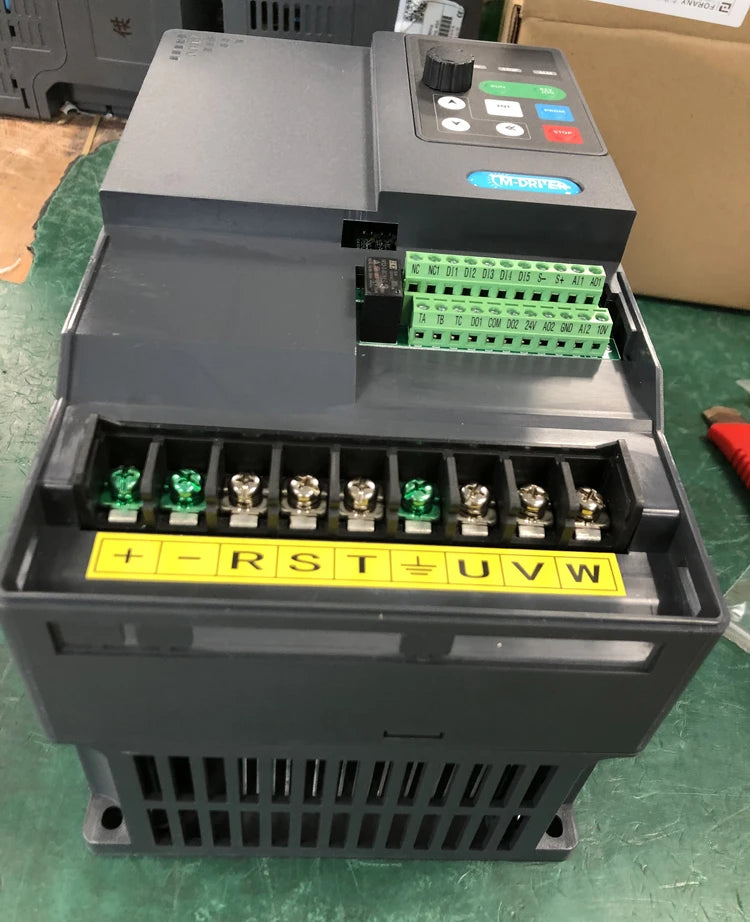

| Input terminal | 5 digital input terminals. | |
| 2 analog input terminals. | ||
| 1 supporting 0-10V voltage input or 0~20mA current input terminal. | ||
| Output terminal | 2 relay output terminals. | |
| 1 analog output terminals, supporting 0~10V voltage output or 0~20mA current output. | ||
| Environment | Ambient Temperature | -10 ℃ to +40 ℃ (Derating use when under ambient temperature of 40 ℃ to 50 ℃) |
Features:
1. New hardware design with double CPU for faster protection of the inverter and motor
2. 220V kilowatts vfd can meet both for single phase 220v motor and 3 phase 220v motor.
3. V/F control, vector control and torque control.
4. Suitable for Asynchronous motor,synchronous motor.Also built-in professional parameters for constant pressure water supply.Support autotune of motor parameters.All in one VFD.

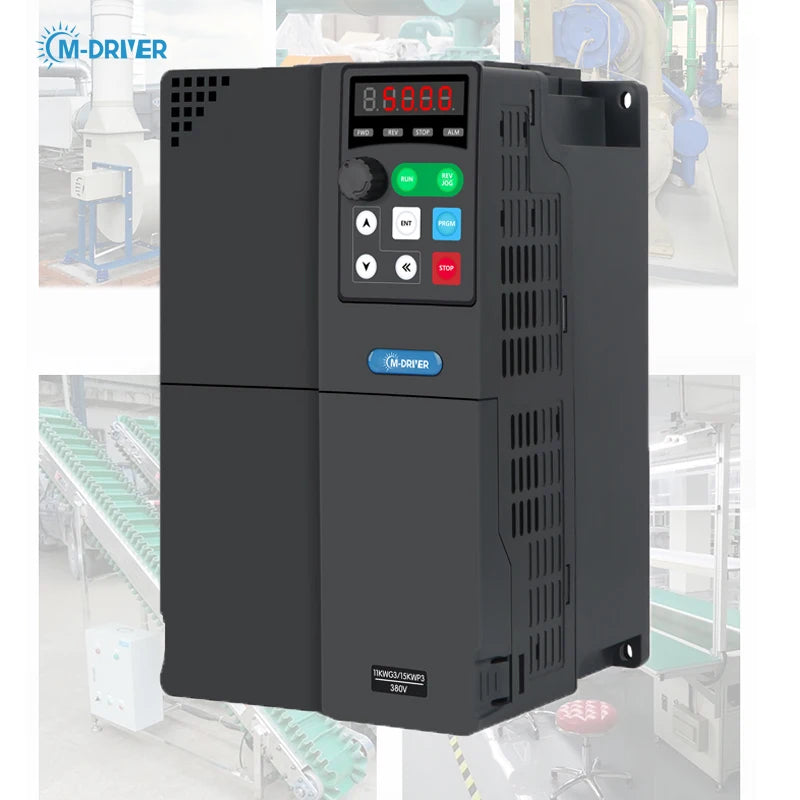

5. Profound terminals for various applications such as fans, pumps, injection machine, extruder, crusher, compressor, etc.
6. Dismountable keypad,the keypad can be connected to inverter by extension cable

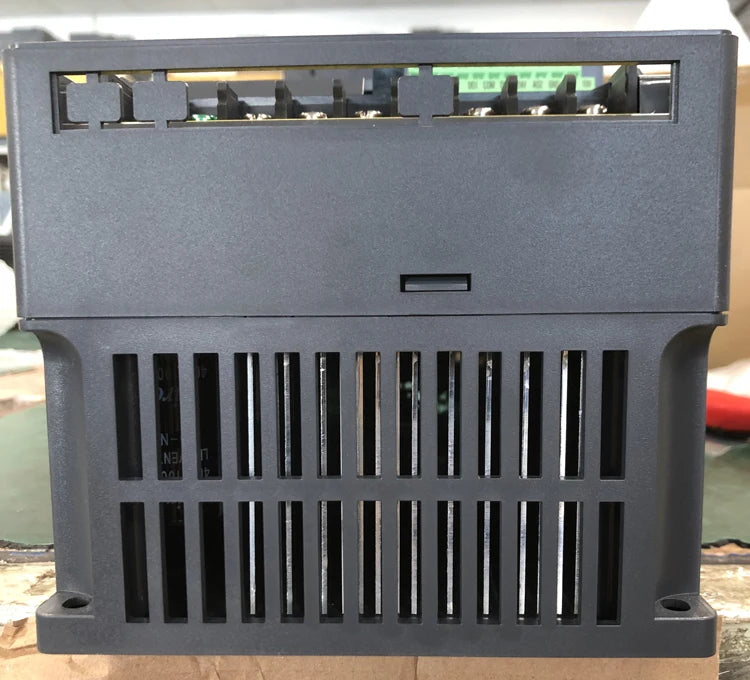

7. Unique heat sink design can ensure a outstanding heat dissipation.
8. Better protection function,such as over heat protection,over current protection,phase loss protection,short circuit protection,undervoltage,etc
