JP similar to Webasto 9kw 12v 24v diesel water car engine heater for camper truck van
Share
JP 9kw 12v 24v diesel water heater for camper truck van similar to Webasto
| Product name |
Belief 9kw 24v diesel water heater for camper truck van similar to Webasto |
| Brand |
Belief |
| Fuel |
Diesel |
| Heat Power |
9000(W) |
| Rated voltage |
12V/24V |
| Rated Power Consumption |
37~83(W) |
| Fuel Consu |
0.19~0.91(l/h) |
| Working temperature |
-40℃~+85℃ |
| Mobile phone control (Optional) |
No limitation |
| Remote control (Optional) |
Without obstacles≤800m |

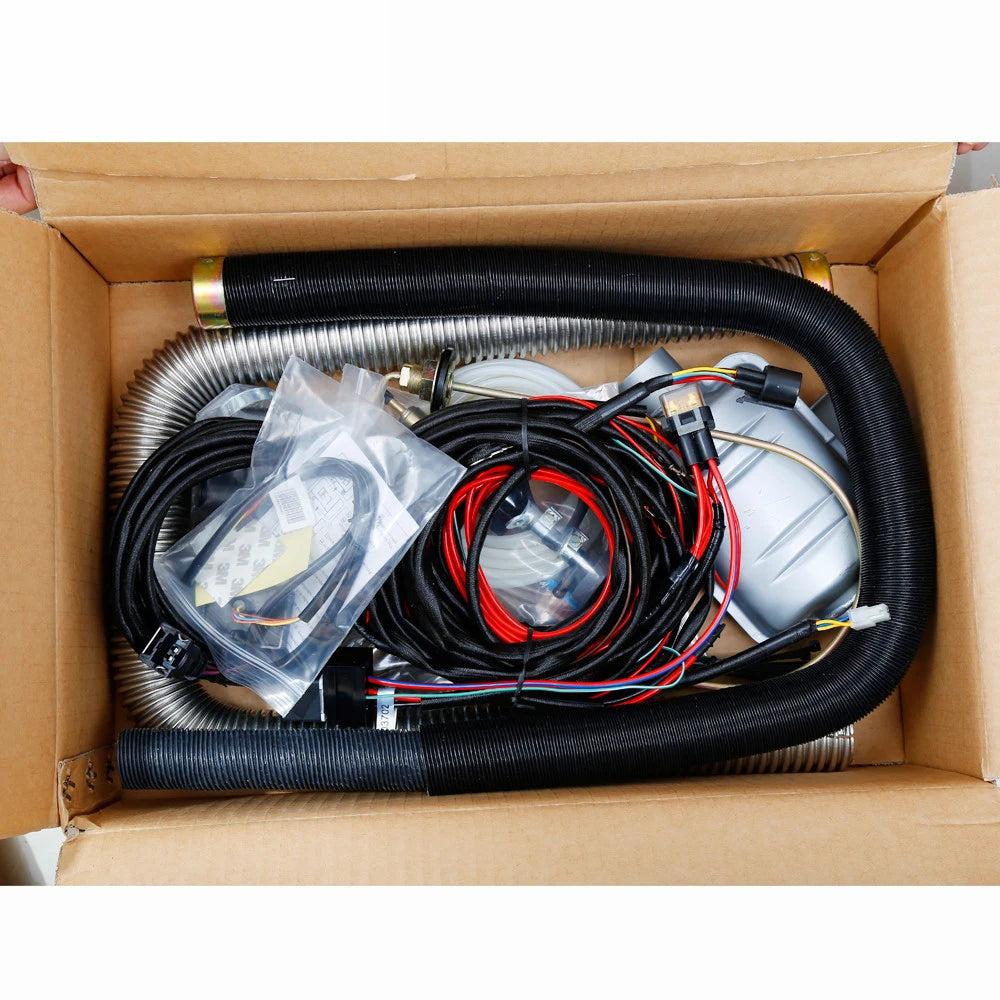

| No. |
Name |
Specifications |
Amount |
| 1 |
Parking heater |
9KW |
1 |
| 2 |
Bolt |
M8*16 |
3 |
| 3 |
Spring washer |
Φ8 |
3 |
| 4 |
Bracket for the main equipment |
|
1 |
| 5 |
Muffler |
XYQ-II |
1 |
| 6 |
Fuel suction pipe |
XYG-II Φ5*600 |
1 |
| 7 |
Fuel oil pipe |
Φ2* XYG-II ΦII5*8000 |
1 |
| 8 |
Inlet air pipe |
Φ38*/Φ33 L=900 |
1 |
| 9 |
Exhaust pipe tube |
Φ38/46 L=1000 |
1 |
| 10 |
Water pipe tube |
Φ19/ Φ28 L=2600 |
1 |
| 11 |
Main wiring bundle |
1 |
|
| 12 |
Fuel filter |
RYL-I |
1 |
| 13 |
Fuel pipe joint tube |
Φ4.1/Φ10.5 |
6 |
| 14 |
Fuel pipe clip |
9-11 |
1 |
| 15 |
Fuel pipe clip |
12-14 |
2 |
| 16 |
Reducing tee |
Φ5-Φ8/Φ8 |
1 |
| 17 |
Fuel pump |
YB-I-24V |
1 |
| 18 |
Fuel pump clip |
Φ32 |
1 |
| 19 |
Drilling screw |
ST5.5*25 |
1 |
| 20 |
Inlet air pipe clip |
2 |
|
| 21 |
Drilling screw |
ST5.5*25 |
2 |
| 22 |
Inlet air pipe clip |
25-40 |
1 |
| 23 |
Drilling screw |
ST5.5*30 |
6 |
| 24 |
Exhaust pipe fixing clip |
2 |
|
| 25 |
Drilling screw |
ST5.5*25 |
2 |
| 26 |
Exhaust pipe clip |
Φ37-42 |
3 |
| 27 |
Positive wire of power supply |
|
1 |
| 28 |
Fuse base |
|
1 |
| 29 |
Fuse |
QY169-5A |
1 |
| 30 |
Fuse |
QY169-20A |
2 |
| 31 |
Self-tapping screw |
ST4*16 |
2 |
| 32 | Fan relay wire |
1 | |
| 33 | Fan relay |
4141(24V) |
1 |
| 34 | Self-tapping screw |
ST4*16 |
1 |
| 35 | Washer |
Φ4.5/Φ9 |
1 |
| 36 | Timer |
MNB-III-24V |
1 |
| 37 | Plug |
DJ7041A-2.8-21 |
1 |
| 38 | Self-tapping screw |
ST3*20 |
1 |
| 39 | Fuel pump connection wire |
|
1 |
| 40 | Fuel pump connector |
DJ7023-3.5-21 |
1 |
| 41 | Special water pipe joint |
Φ20/Φ18 L=60 |
2 |
| 42 | Water pipe joint | Φ20 L=55 |
2 |
| 43 | Water pipe clip |
16-25 | 2 |
| 44 | Water pipe clip |
20-32 |
6 |
| 45 | Strapping tapes |
4*200 |
1 |
| 46 | Operation manual |
1 |
