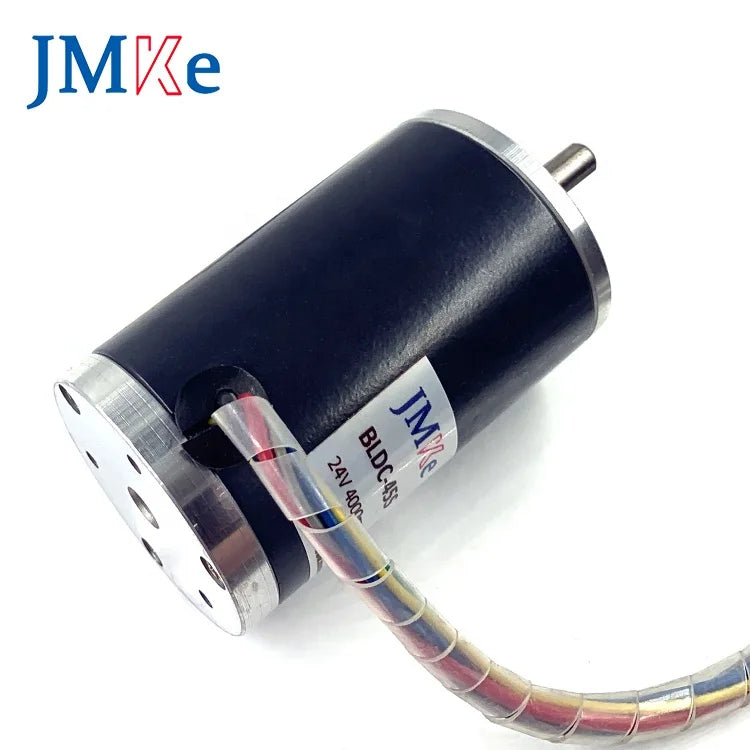

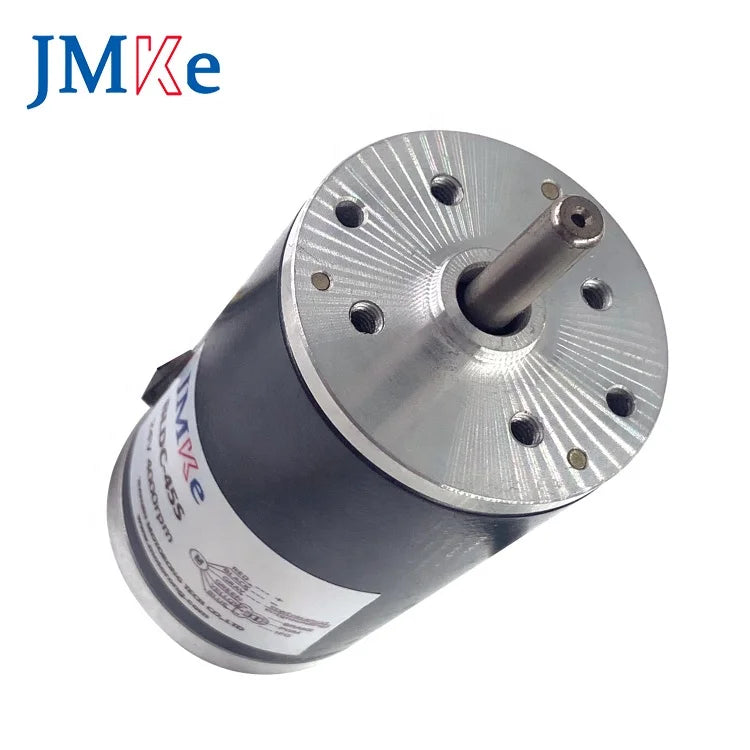

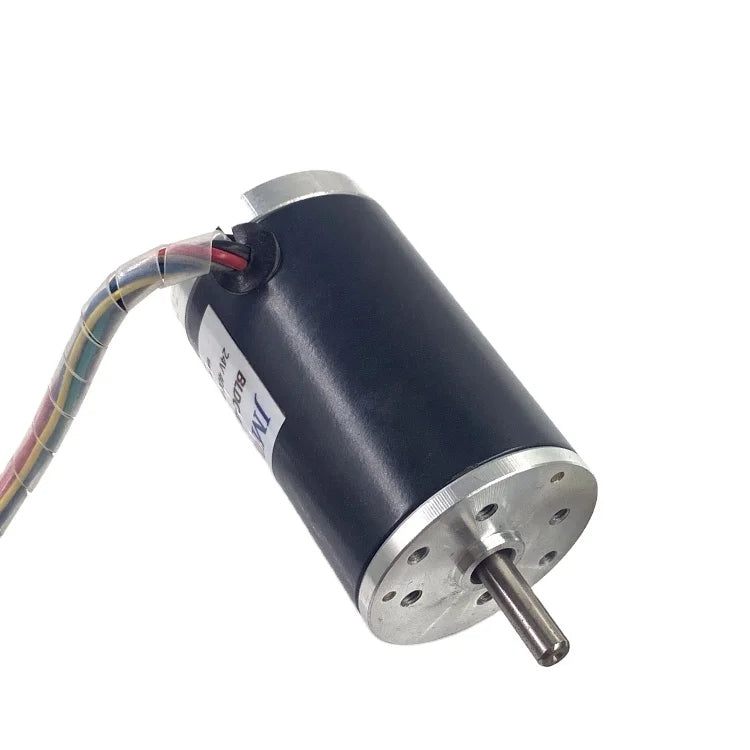

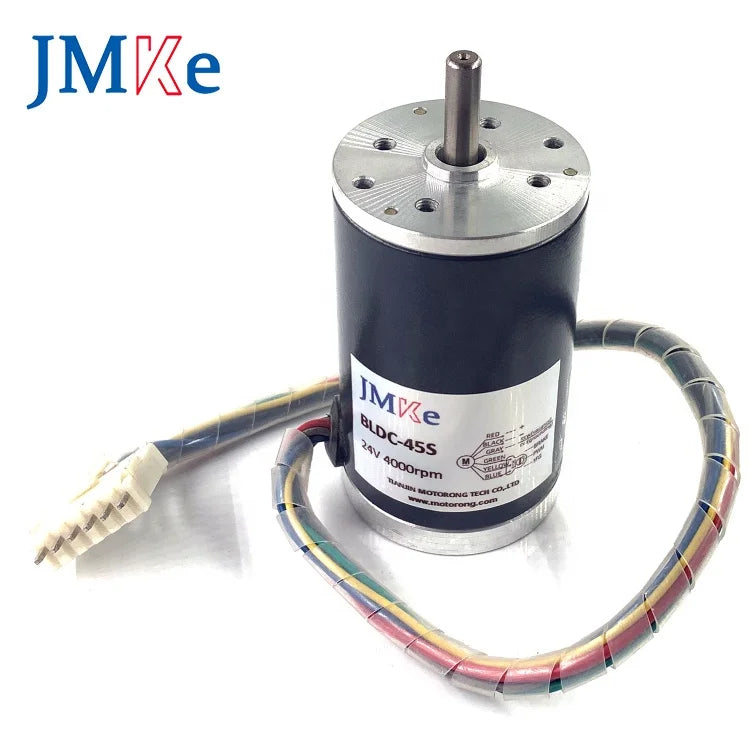

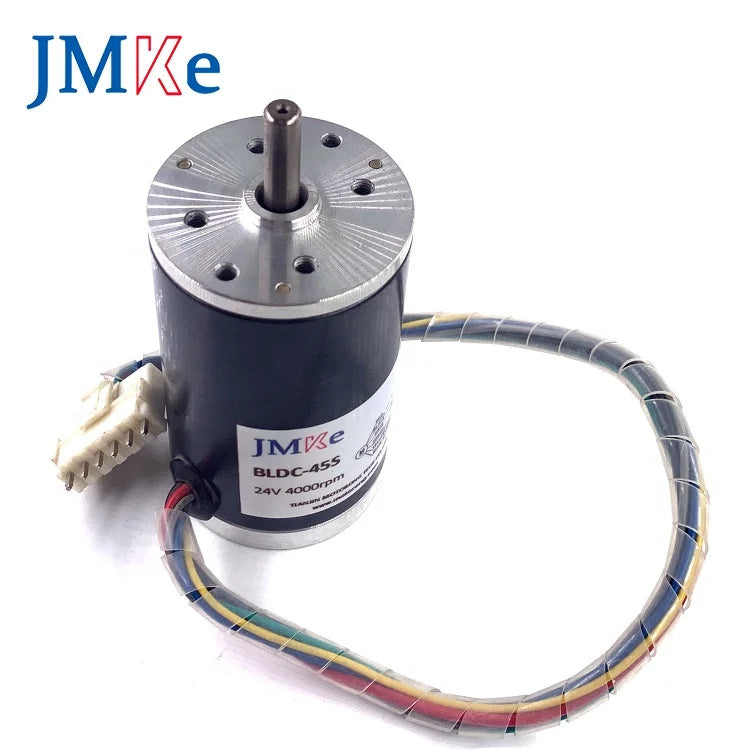

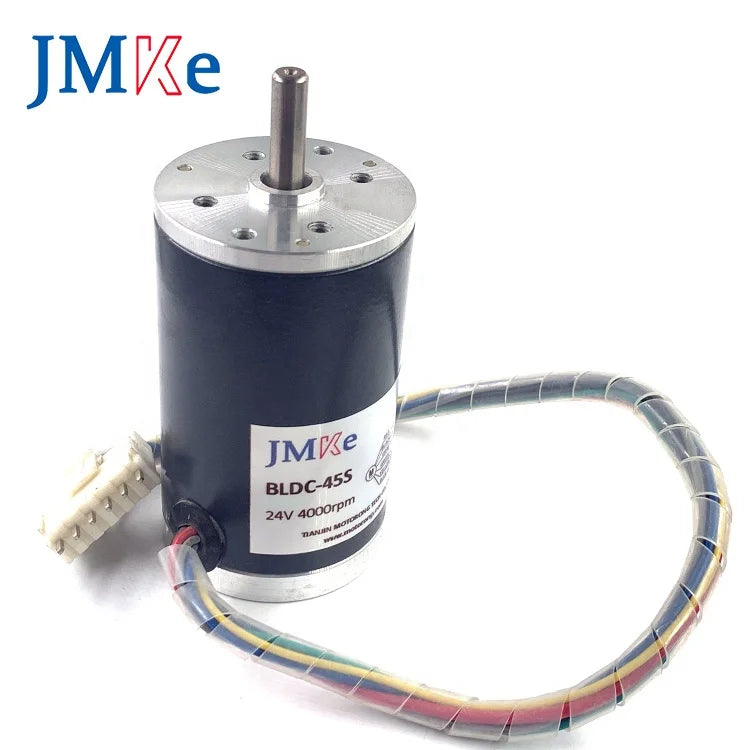

JMKE motor brushless 4500 rpm 45mm rc motor
Micro gear motor with low noise and high torque
Solidly constructed and ready to install in numerous applications.
Application:
Typical applications include factory automation machinery, labeling machinery, machine tools, material handling machinery, packaging machinery, printing machinery, robotics, x-y tables, textile machinery, applications which require smooth operation or applications which have medium to high reflected load inertias.
Φ= 45 mm
Central Output Shaft, Length=18mm
Total length=112mm
| Motor |
Voltage |
No-lode |
Lode |
Weight |
|||
|
|
DC |
Current(mA) |
Speed (r/min) |
Torque (gf.cm) |
Current(mA) |
Speed(r/min) (r/min) |
(g) |
| BLDC-45S |
12V |
300 |
2000 |
400 |
1000 |
1600 |
460 |
| BLDC-45S |
12V |
500 |
3000 |
500 |
1800 |
2500 |
460 |
| BLDC-45S |
24V |
300 |
3000 |
500 |
900 |
2500 |
460 |
| BLDC-45S |
24V |
400 |
4000 |
800 |
1800 |
3200 |
460 |
SPEED ADJUSTABLE - The speed can be adjusted by dc motor speed controller.
If you need a lower or higher speed motor, please choose the right rpm to meet your needs. This motor is reversible so that you can switch positive and negative.
Stock Available for express delivery
Please offer below information
| Voltage |
Current |
Diameter of motor |
Brushed/Brushless |
Torque |
Output Speed |
| (V) |
(Am) |
(mm) |
|
(N.m) |
(r/min) |
