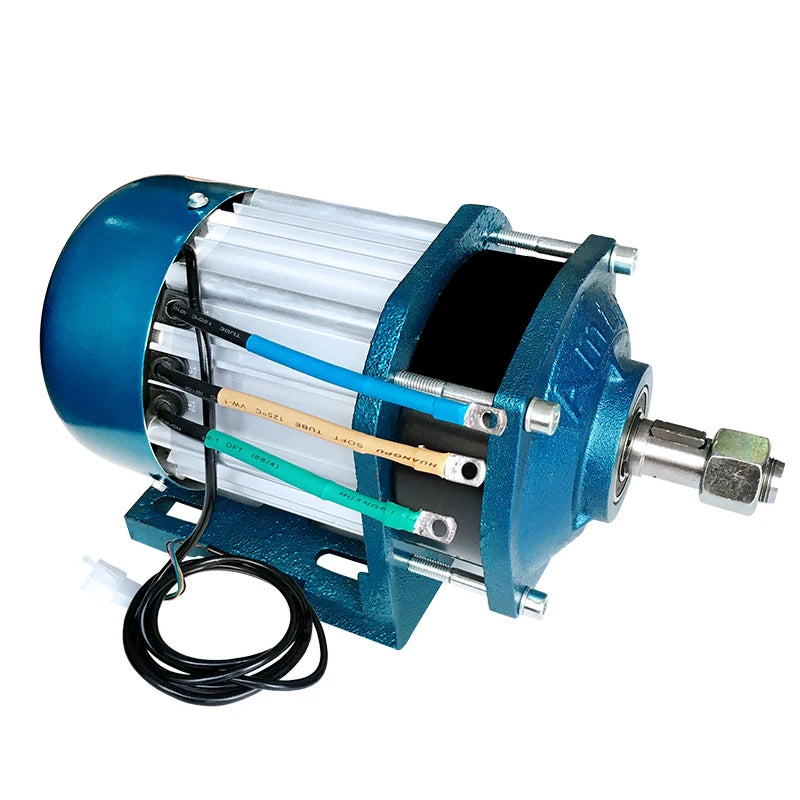

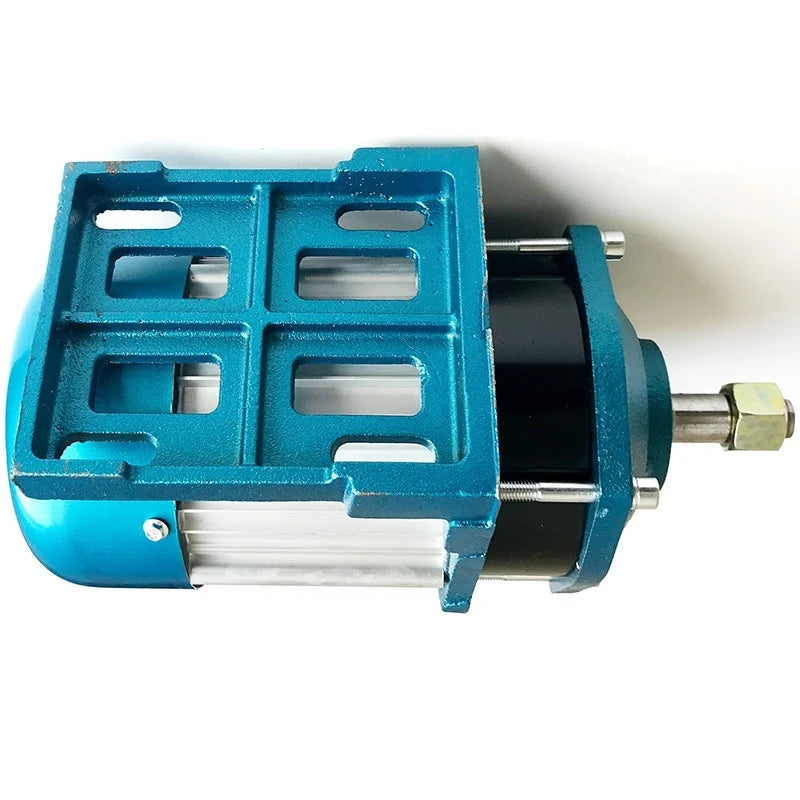

High power 60/72v BLDC Gear Motor DC electric Mid Drive Motor For Electric Tricycle
Share
High power 60/72v BLDC Gear Motor DC electric Mid Drive Motor For Electric Tricycle
Application:
Mid Drive Electric Tricycle, electric 4 wheel vehicle, ATV, Tourist Bus, Truck, Coal Car
What's in the package?
1 piece BLDC high torque motor
Technical data of the BLDC high speed high torque motor
| Item |
BLDC high speed motor |
BLDC high speed motor |
BLDC high speed motor |
| Rated power |
1kw |
1500w |
3kw |
| Voltage |
60v 72v |
60v 72v |
60v 72v |
| Rated speed |
620rpm/min |
620rpm/min |
620rpm/min |
| Rated torque |
10.6N.m |
10.6N.m |
10.6N.m |
| Rated current |
<21 Amp |
<28Amp |
<53 Amp |
| Efficiency |
>83% |
>83% |
>83% |
| Peak Torque |
14.8N.m |
25N.m |
41N.m |
| Gear Ratio |
5:5:1 |
5:5:1 |
5:5:1 |
If you also need accessories, like controller, throttle, please leave message, then we can quote for you accordingly.

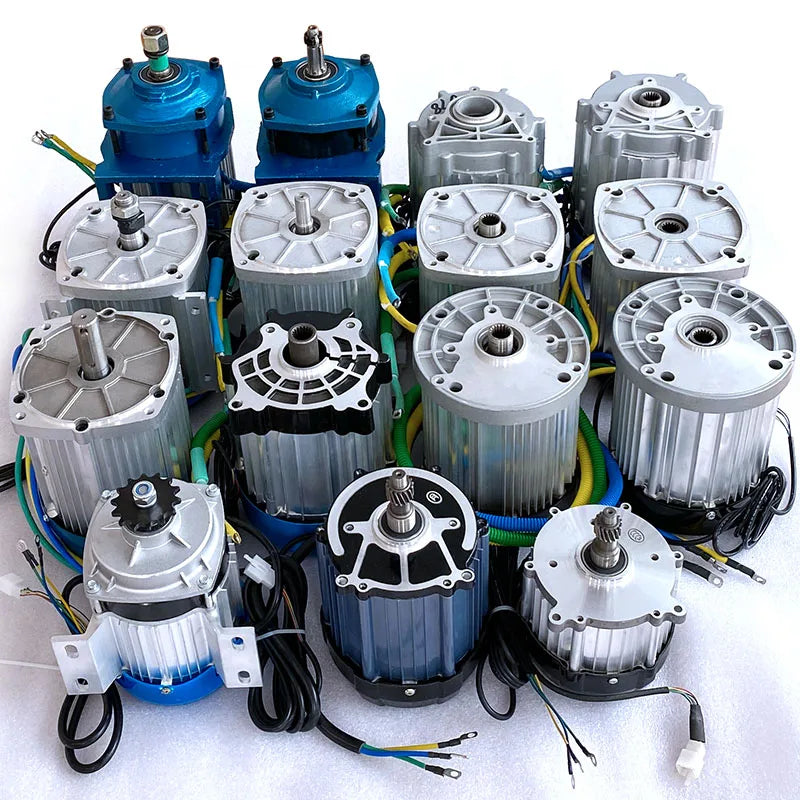

Except above items, we also have dc motor, ac motor, servo motor. If you have interest or demand, please contact us free.
