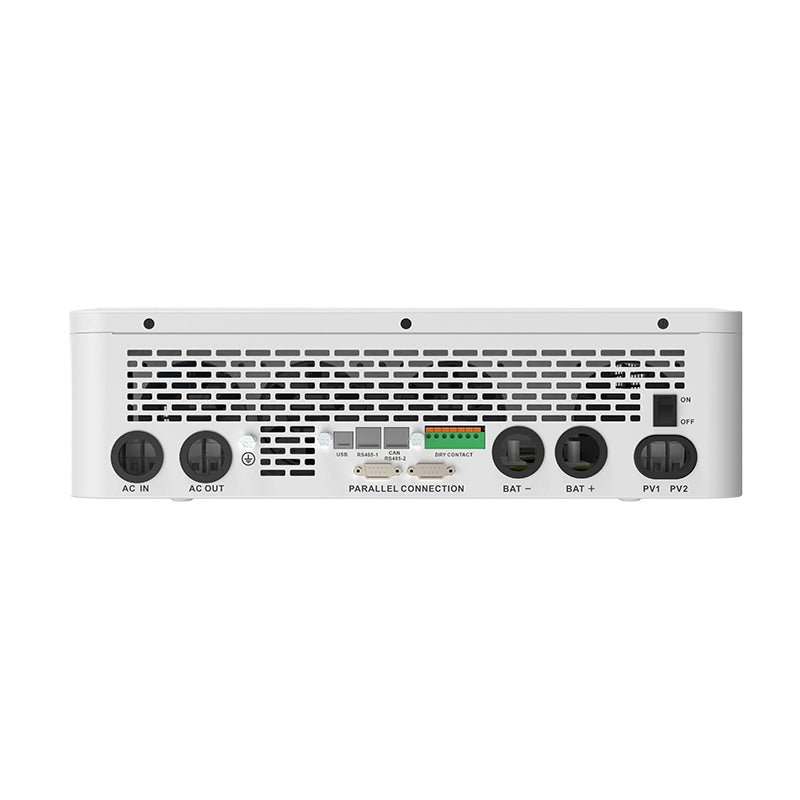

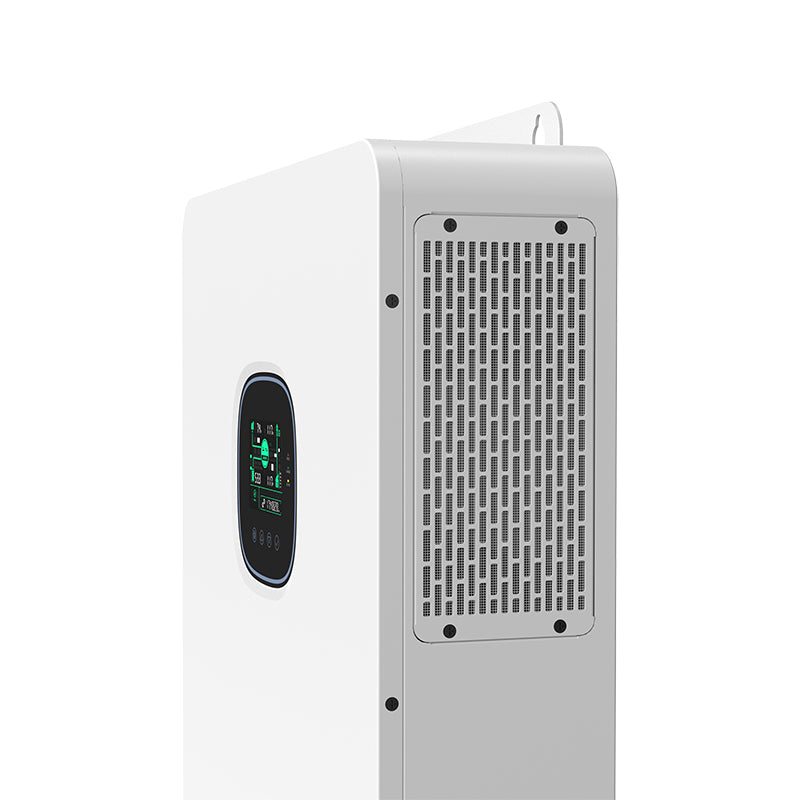

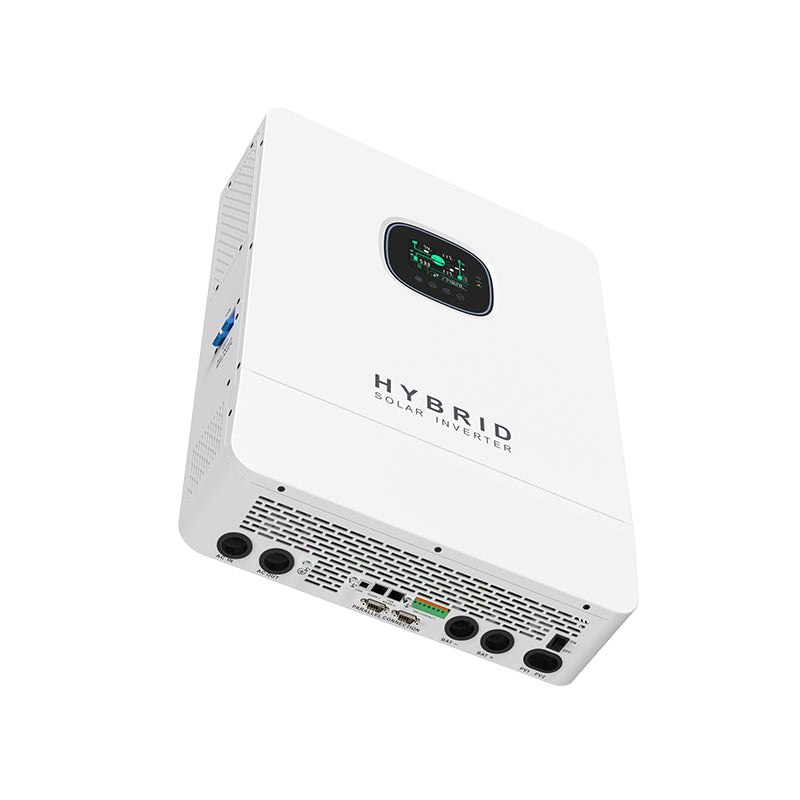

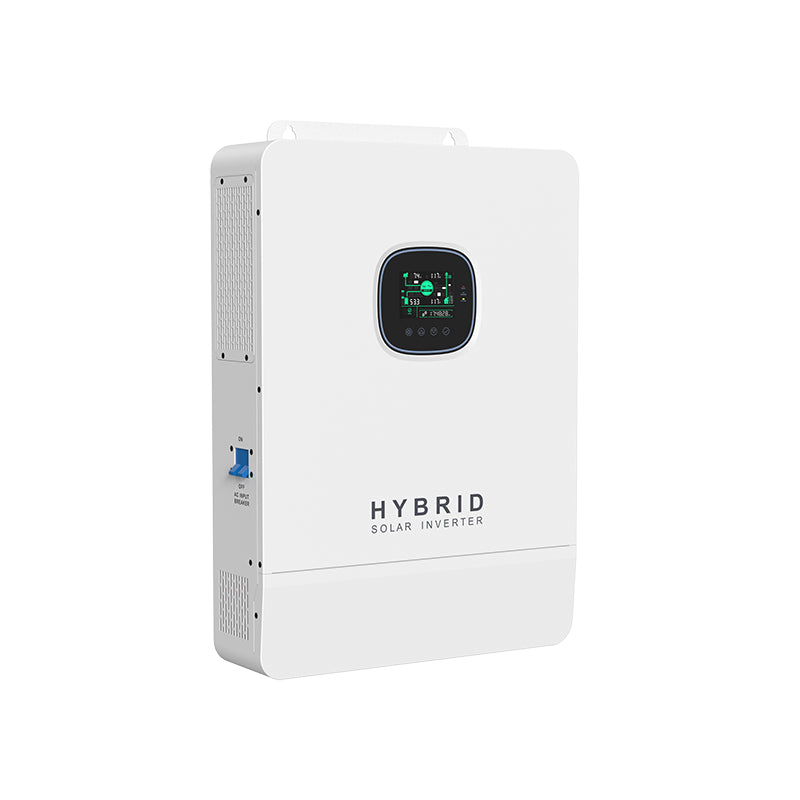

GOOTU High Frequency Solar Power Inverter 8KW 10KW DC 48V 110VAC Split Phase Hybrid Solar Charge Inverter
Save -55%
Rs. 405,133.97
Rs. 907,896.07
HURRY ! ONLY
100 LEFT IN STOCK.
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security

FREE SHIPPING
WORLDWIDE

BIG SAVING ON
WEEKENDS

24H SUPPORT
CONTACT US

Product Description









Data Sheet
MODEL
|
JSY-H4880A200
|
JSY-H48100A200
|
||
INVERTER OUTPUT
|
||||
Rated Output Power
|
8,000W
|
10,000W
|
||
Max.Peak Power
|
16,000W
|
20,000W
|
||
Rated Output Voltage
|
120/240Vac(L1/L2/N/PE split phase)
|
|||
Load Capacity of Motors
|
5HP
|
6HP
|
||
Rated AC Frequency
|
50/60Hz
|
|||
Waveform
|
Pure Sine Wave
|
|||
Switch Time
|
10ms(typical)
|
|||
BATTERY
|
||||
Battery Type
|
Li-ion / Lead-Acid / User Defined
|
|||
Rated Battery Voltage
|
48Vdc
|
|||
Voltage Range
|
40-60Vdc
|
|||
Max.MPPT Charging Current
|
200A
|
|||
Max.Mains/Generator Charging Current
|
100A
|
120A
|
||
Max.Hybrid Charging Current
|
180A
|
200A
|
||
PV INPUT
|
||||
Num. of MPP Trackers
|
2
|
|||
Max.PV array power
|
11,000W
|
|||
Max.input current
|
22/22A
|
|||
Max.Voltage of Open Circuit
|
500Vdc
|
|||
MPPT Voltage Range
|
125-425Vdc
|
|||
MAINS / GENERATOR INPUT
|
||||
Input Voltage Range
|
90-140Vac
|
|||
Frequency Range
|
50/60Hz
|
|||
Bypass Overload Current
|
63A
|
|||
EFFICIENCY
|
||||
MPPT Tracking Efficiency
|
99.9%
|
|||
Max. Battery Inverter Efficiency
|
92%
|
|||
GENERAL
|
||||
Dimensions
|
620*435*130mm(2*1.4*0.4ft)
|
|||
Weight
|
20kg(44lb)
|
21kg(46.3lb)
|
||
Protection Degree
|
IP20,Indoor Only
|
|||
Operating Temperature Range
|
-15~55℃,>45℃ derated (5~131℉,>113℉ derated)
|
|||
Cooling Method
|
Internal Fan
|
|||
CERTIFICATION
|
||||
Safety
|
IEC62109-1, IEC62109-2,UL1741
|
|||
EMC
|
EN61000-6-1, EN61000-6-3, FCC 15 class B
|
|||
RoHS
|
Yes
|
