Electronic Eyepiece for Telescope 1.25 Inches 500W Pixels Durable Accessory

Description:

- Pixels: 5 million pixel electronic eyepiece, 1/2.5 inch industrial chip with 5 million pixels, it comes with an integrated advanced camera system.
- System: The camera system consists of a sophisticated image flow processor (IFP), a real time JPEG encoder, an integrated microcontroller, flash support, autofocus, optical zoom, and mechanical shutter.
- Performance: The entire system on a chip (SoC) can have excellent performance in low light conditions while consuming very little power.

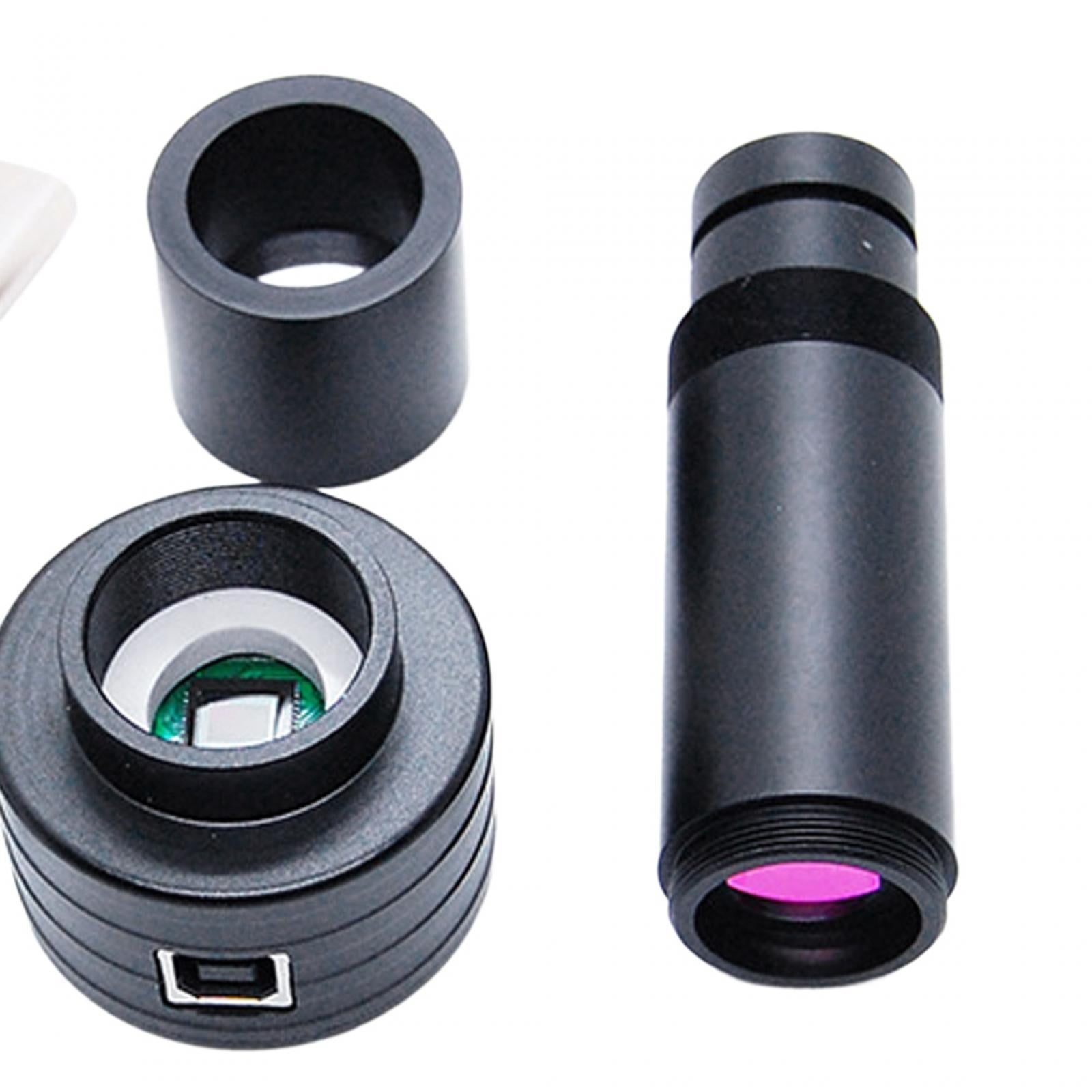

- Application: According to the optical path structure of the microscope and telescope, the 6 piece adapter lens is used to seamlessly connect the objective lens and the electronic eyepiece to produce detailed, clear, natural and smooth images. Aluminum alloy casing, no drive, high standard USB cable. It is widely used in industrial quality inspection, planting, breeding, etc.

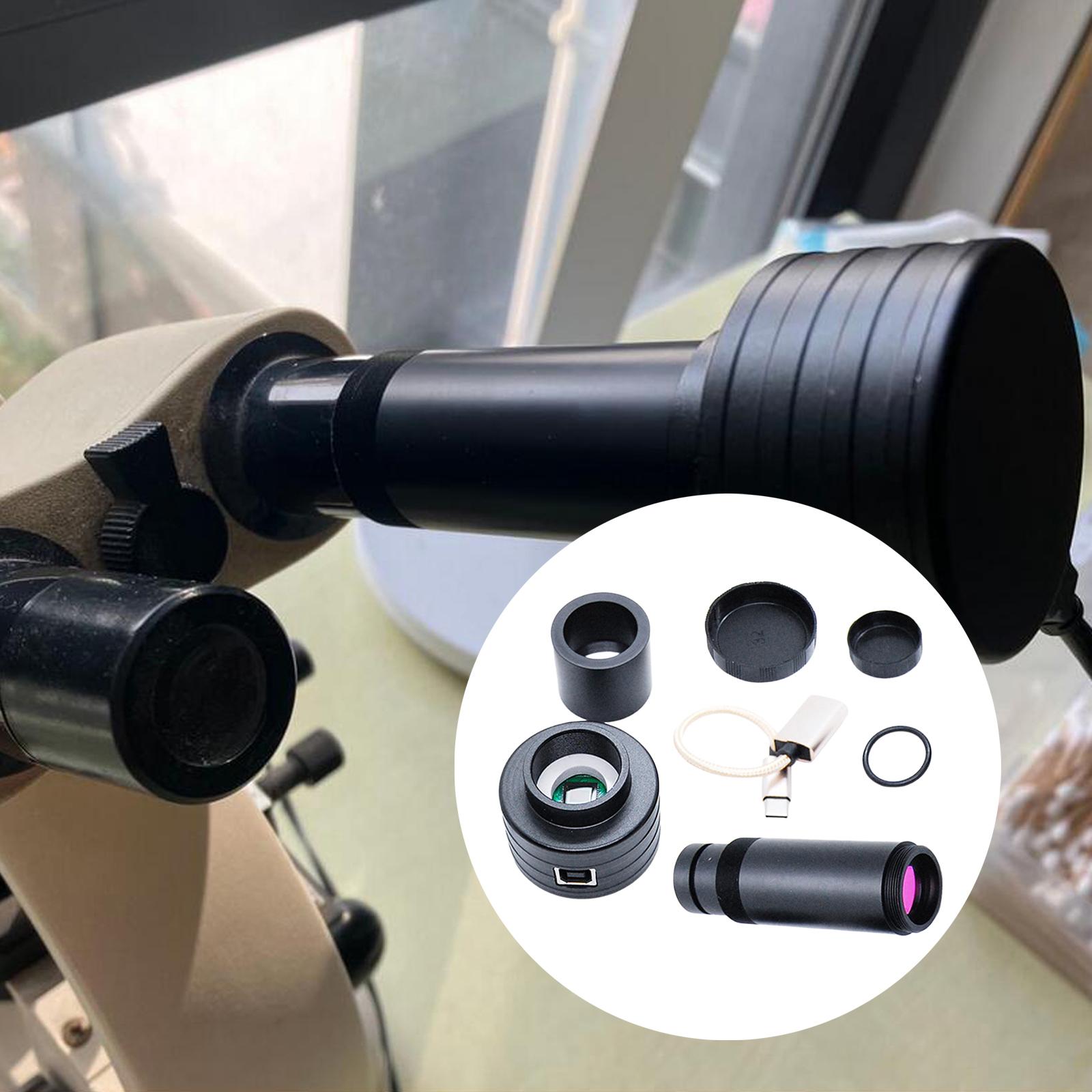

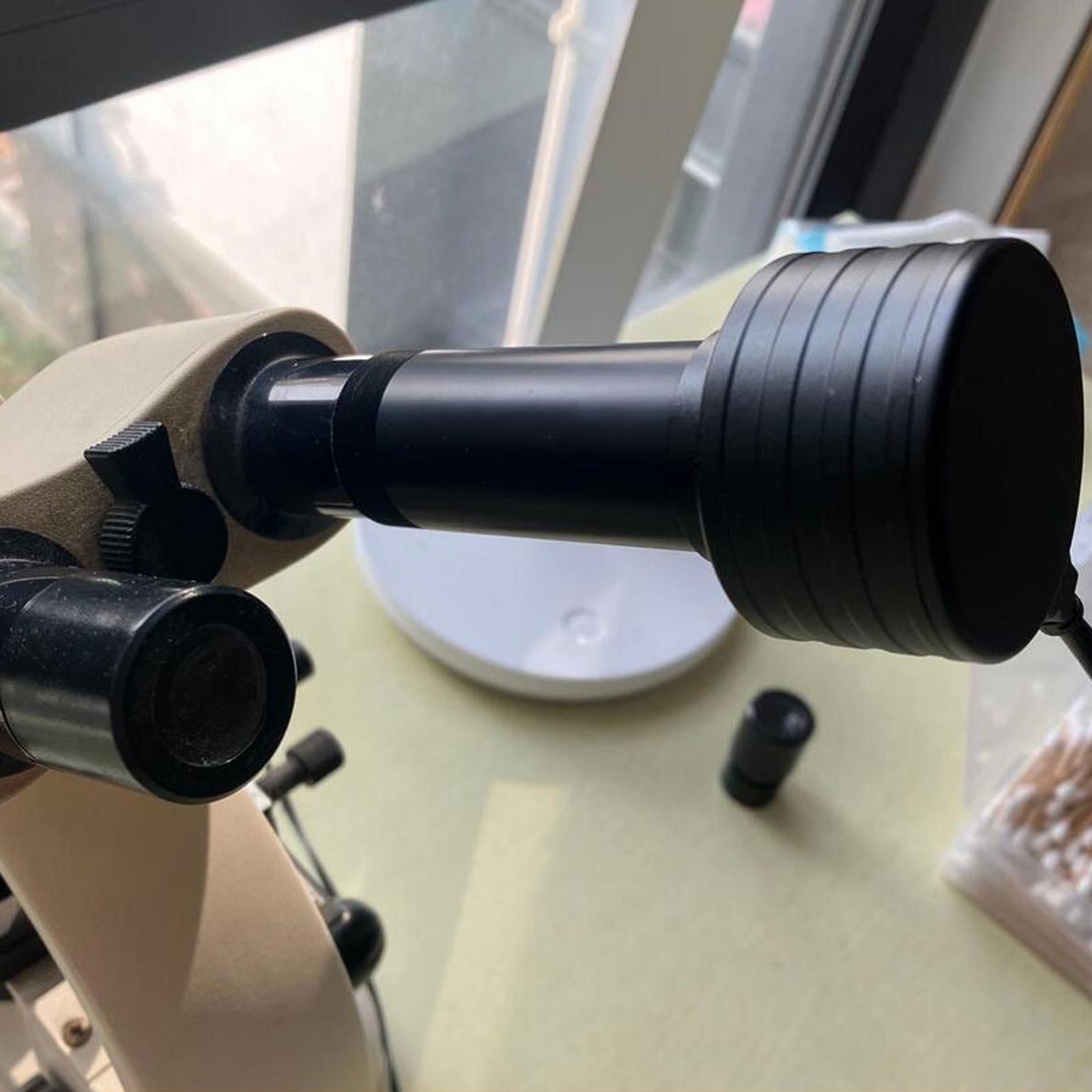

- Applicable: Connecting to a microscope, suitable for 23.2MM eyepiece interface. Connect to an astronomical telescope, suitable for 1.25 inches (31.7mm) interface

Specification:

- Sensor chip: 1/2.5 inch industrial grade CMOS chip
- Pixel pitch: 3.75UM
- Sensitivity: 2.7/LUX. sec(under 550nm green light illumination)
- Lens focal length: F6.0MM/2.0
- Focusing range: 20mm to extremely far
- Depth of field of view: 50mm to infinity
- Blink control: 50HZ or 60HZ
- Software compatibility support: For Windows98, for WindowsME, For Windows2000, For WindowsXP, For win7, For win8, For win10 and other higher versions
- Suitable for computers, mobile phones and tablet
- Single frame capture storage format: BMP
- Dynamic capture storage format: AVI
- Power consumption: < 0.5W
- Material: alloy

Size Chart:

17cmx12cmx4.8cm/6.69inchx4.72inchx1.89inch

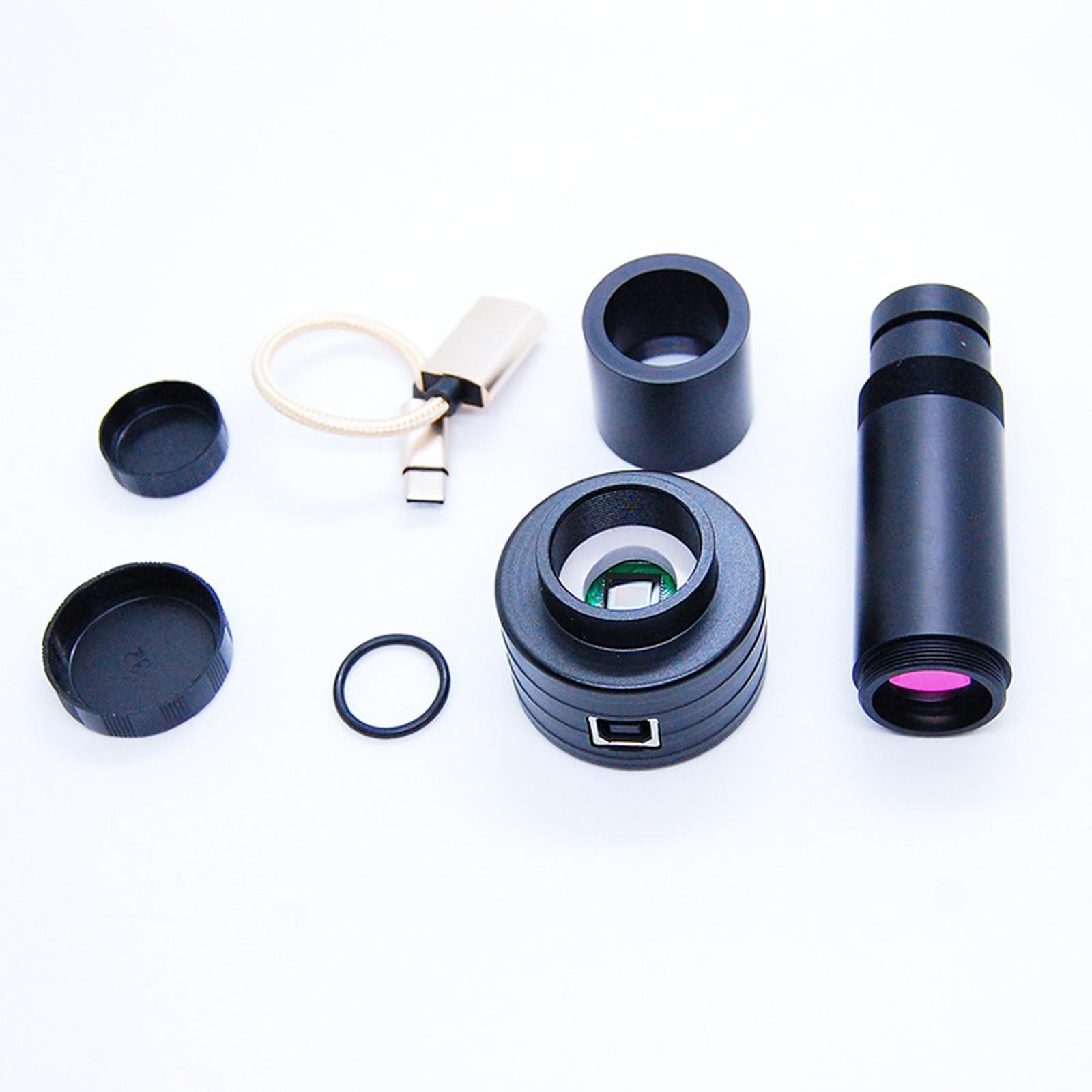

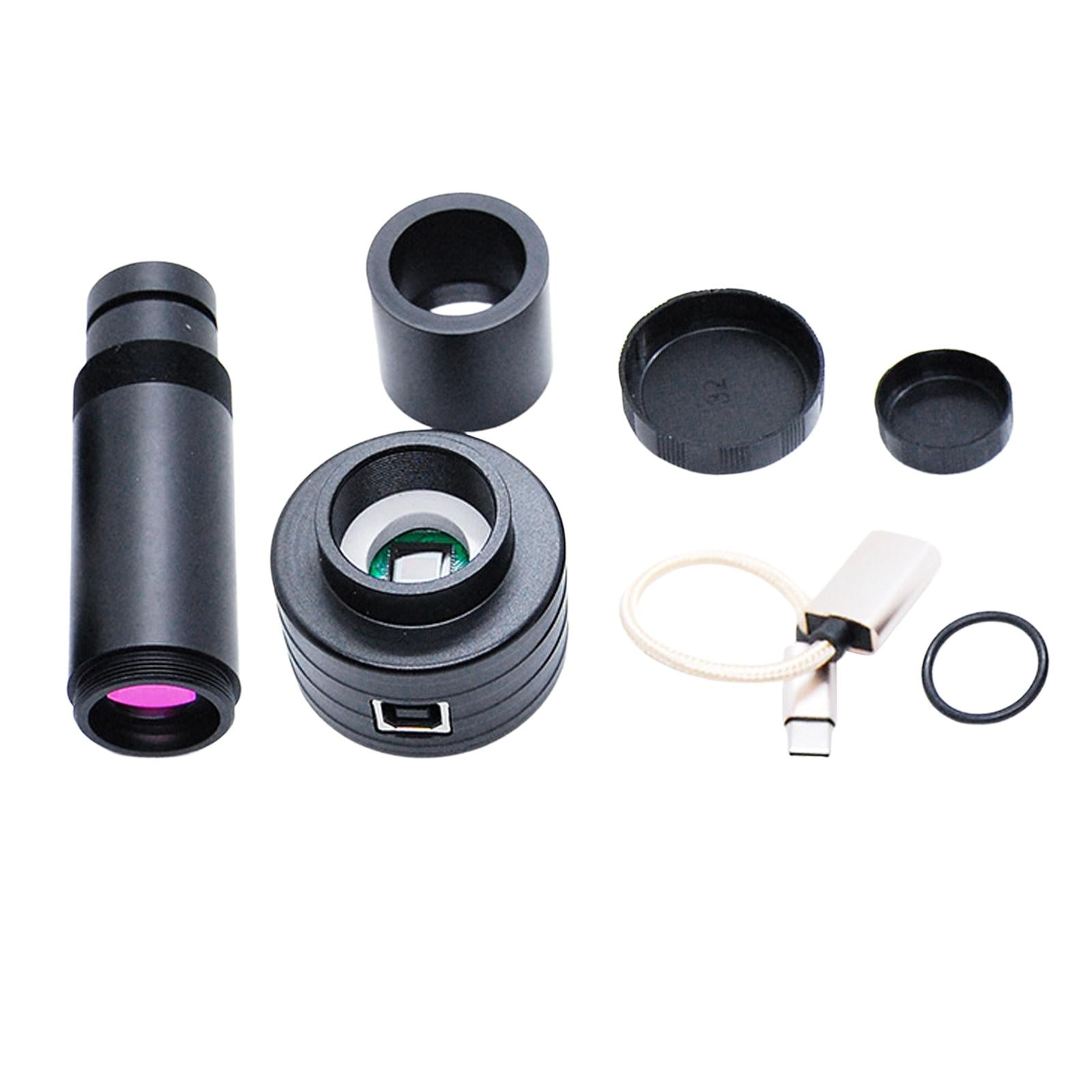

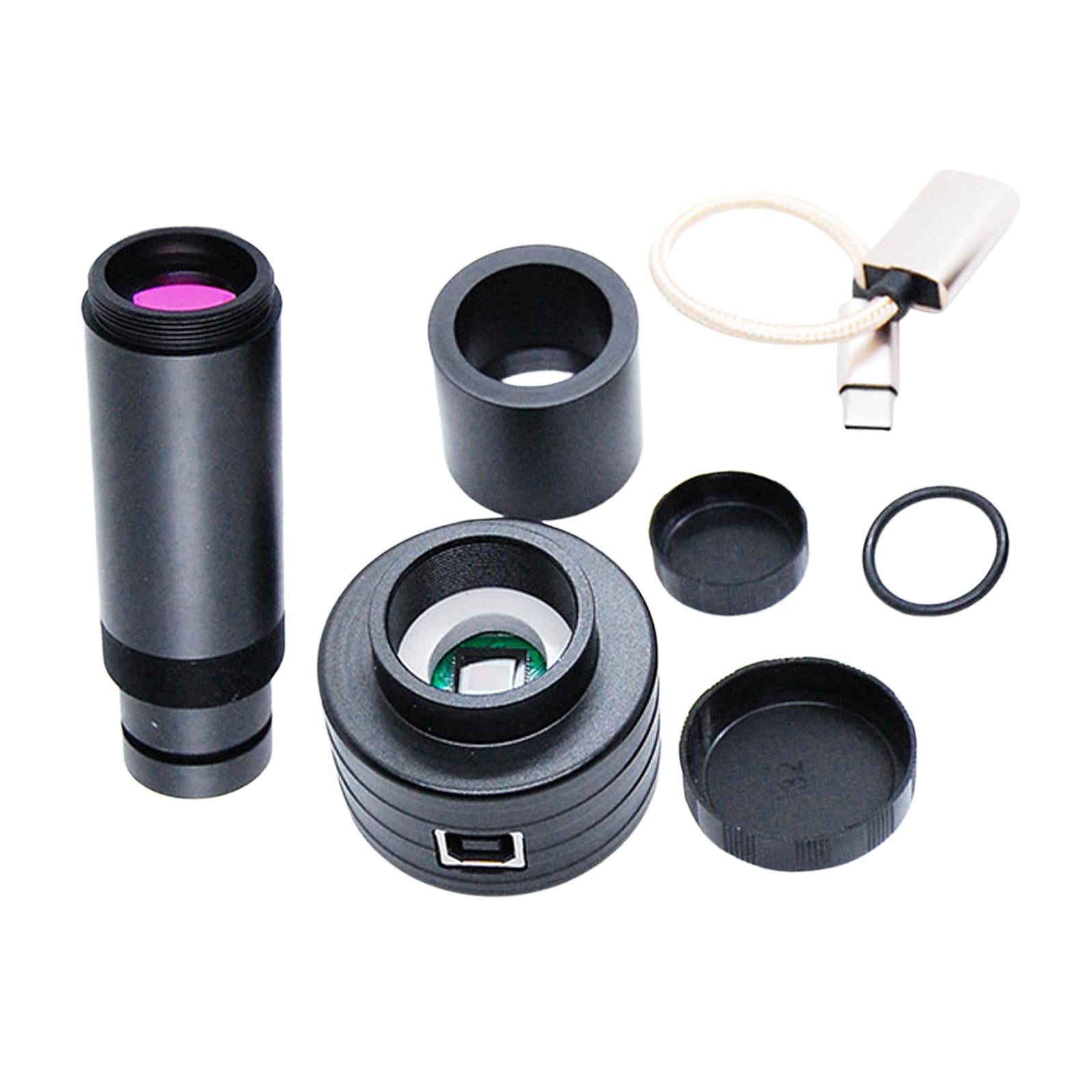

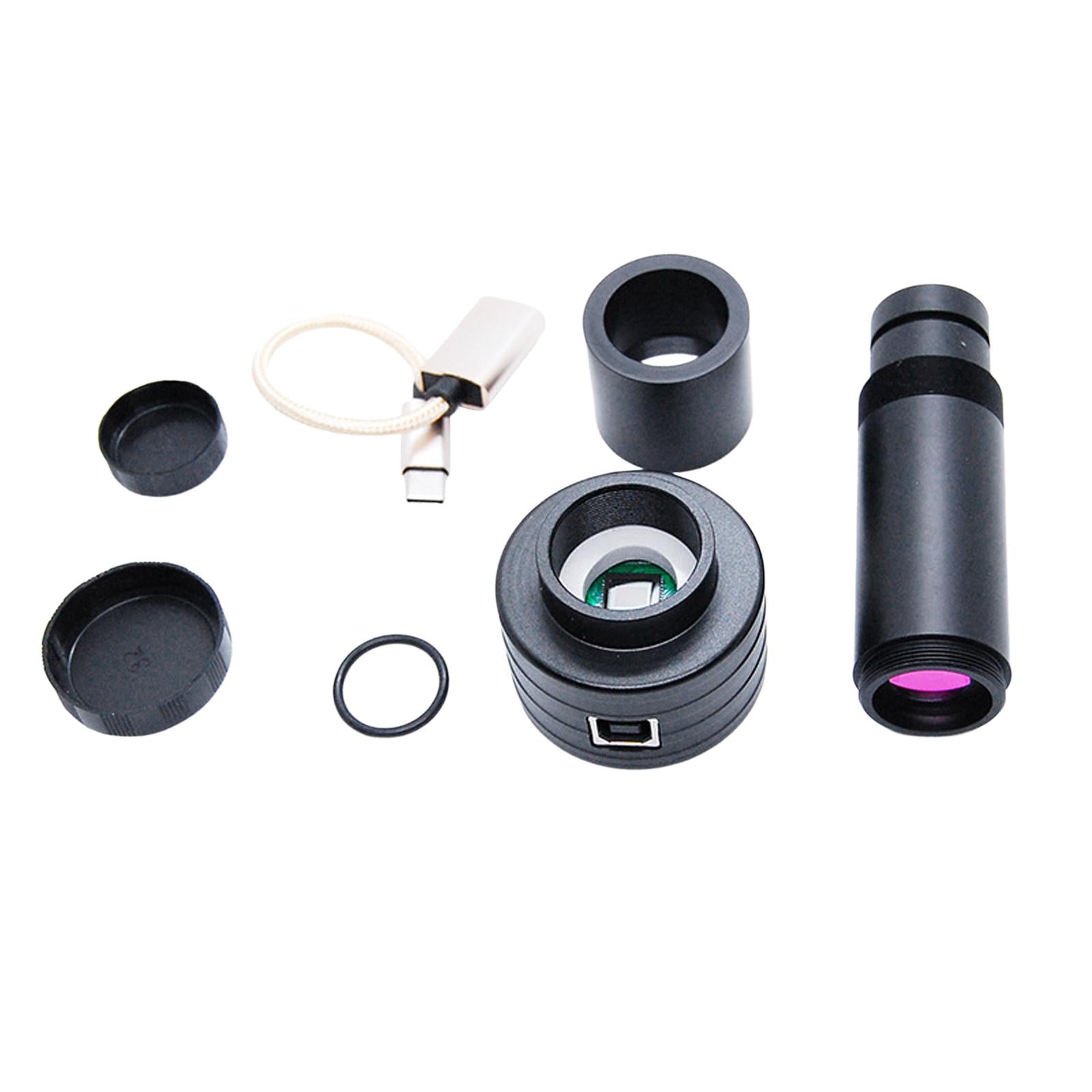

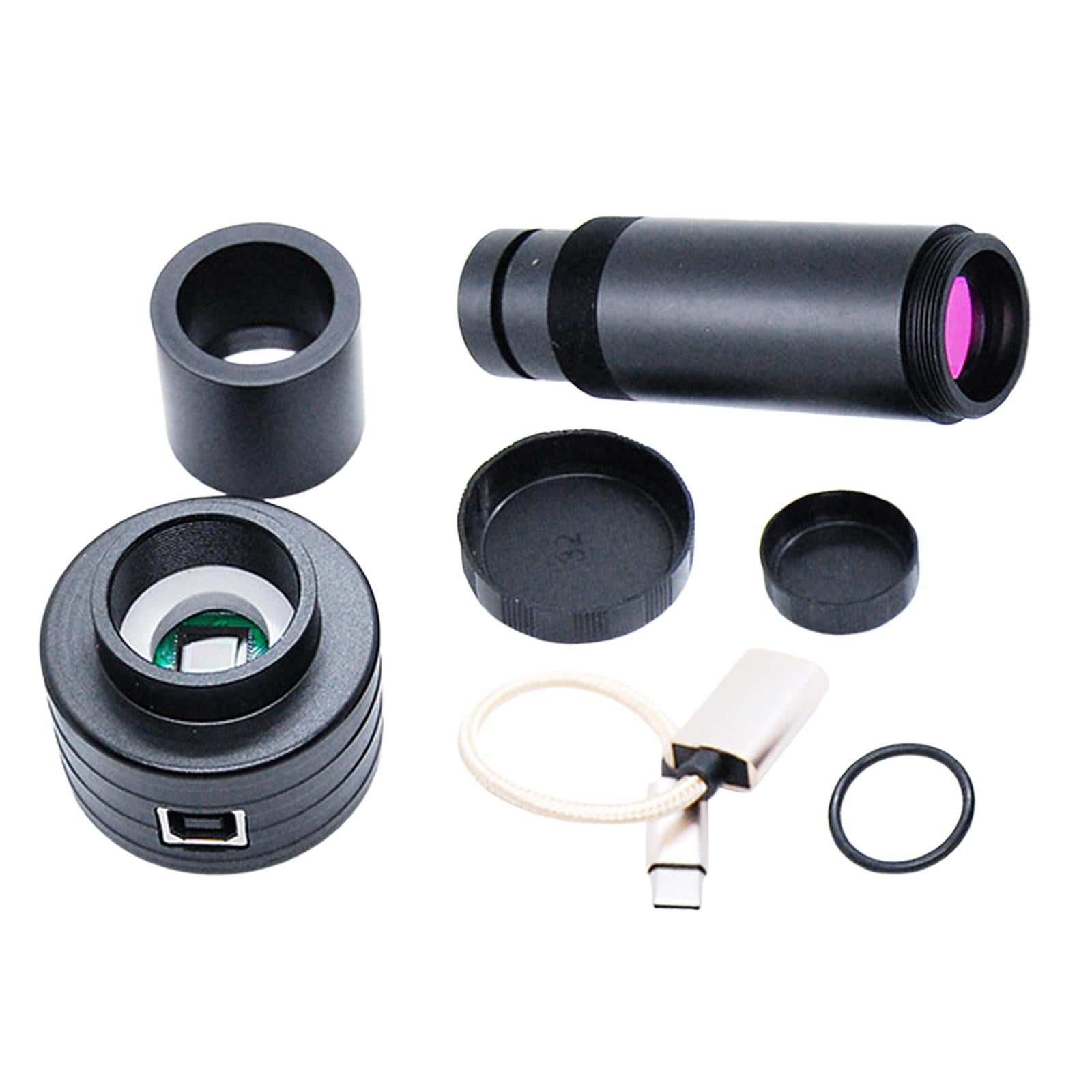

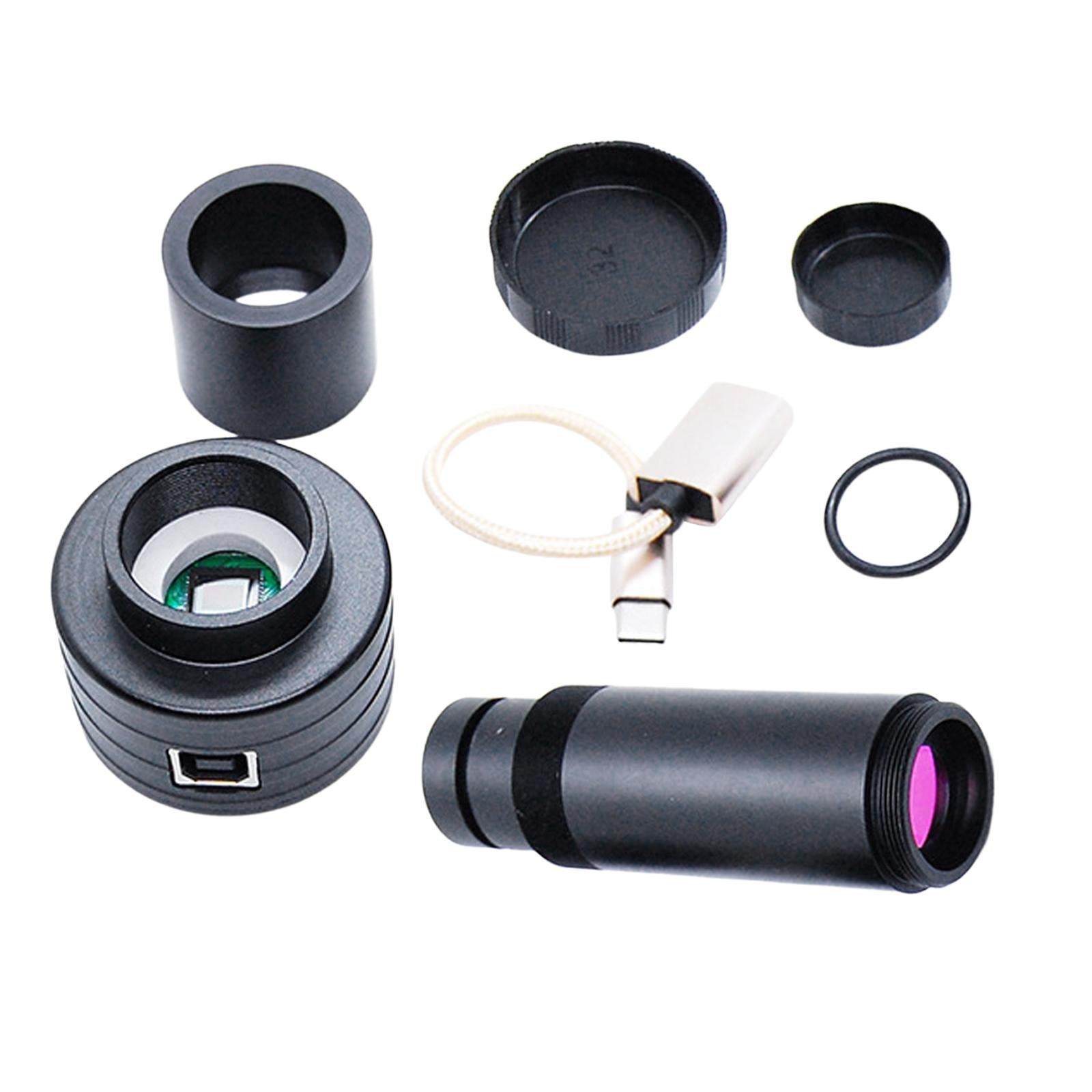

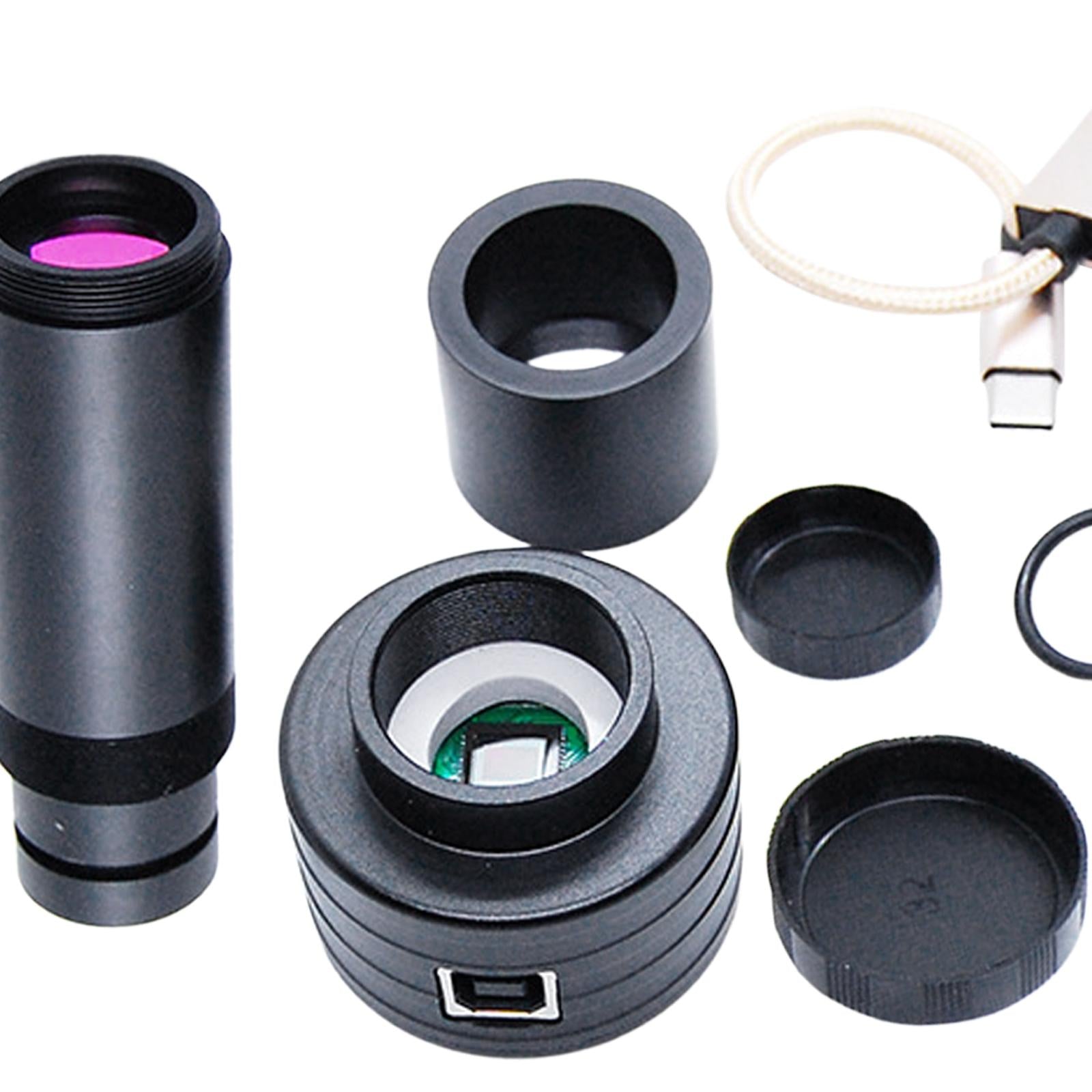

Package Includes:

1 set Electronic Eyepiece

Note:

Please allow slightly errors due to manual measurement and different monitors.
