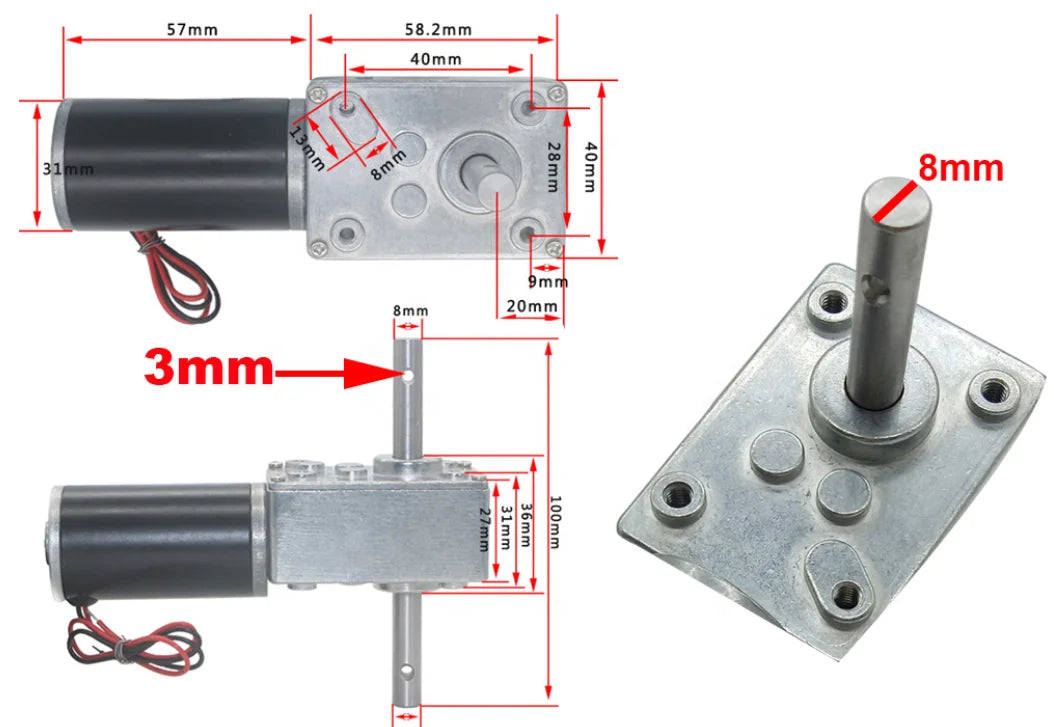

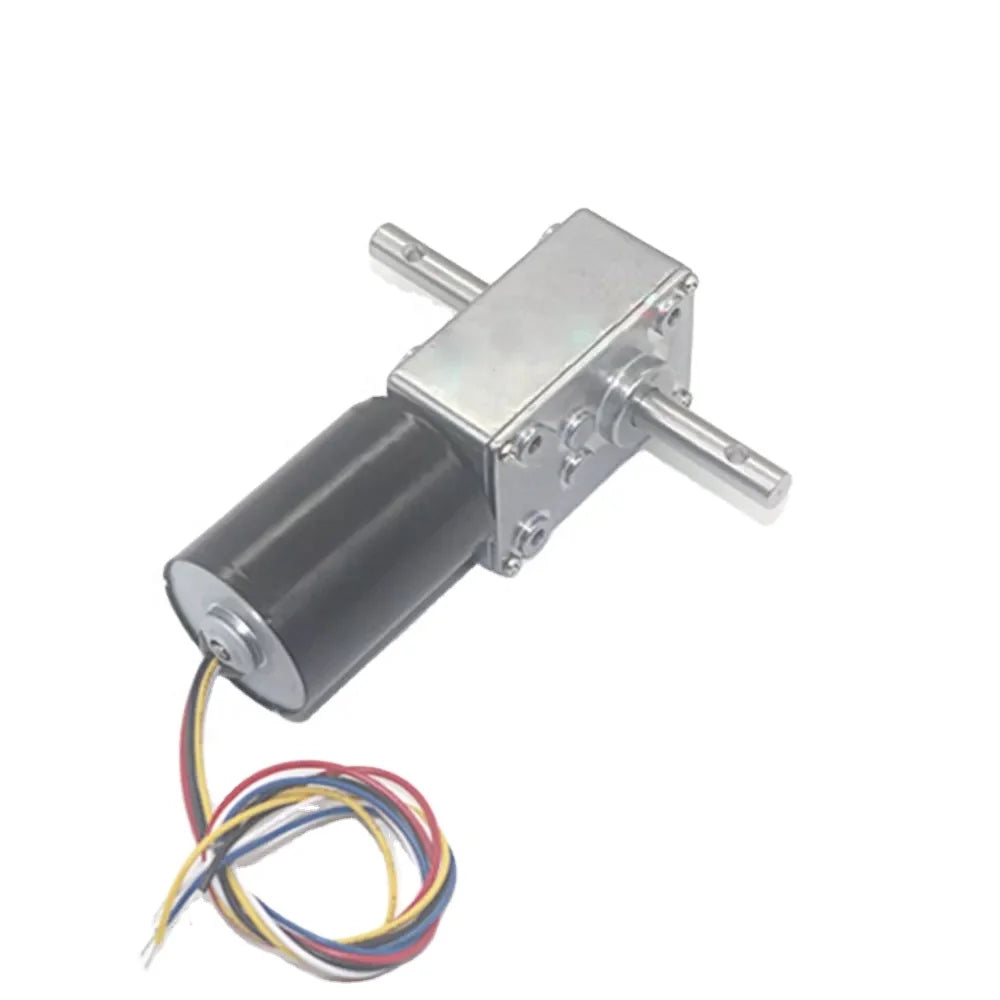

Double output shaft length 33mm bldc motor with PWM control 12v 24v dc gear motor 60Kg.Cm Worm Gearbox Reducer Without encoder
6015811013089_94181594
9999 In Stock Sold Out 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999 9999
Share
DC 12V ; You can choose the no load speed have :
Rated torque between 3.4 To 70 KG.CM; stall torque: between 8.5-70KG, it is recommended that your project load not exceed the rated torque; Select a no load speed in DC 12V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.
16rpm,27rpm,40rpm,80rpm,160rpm,260rpm,470rpm
Rated torque between 3.4 To 70 KG.CM; stall torque: between 10-70KG, it is recommended that your project load not exceed the rated torque; Select a no load speed in DC 24V, there will be corresponding rated torque and stall torque, please refer to the parameter table below.
Direction of rotation of the motor: CW Or CCW, Support Reversed; Control the clockwise or counterclockwise rotation of the motor by changing the way the positive and negative electrodes are connected
2. Prominent feature : The motor have self locking function ; High Torque ; Long Life 10000 hours ; Low noise ; Support reversed ;Signal feedback ; Use double ball bearings ; Built-in induction drive ; Pulse width PWM speed regulation ; FG signal speed measurement function ; Overcurrent protection function 3A ; Overvoltage protection 30V ; Over temperature protection 80 degrees Celsius ; Use all metal gears ; The brushless motor is controlled by the frequency conversion technology, which is more energy-efficient than the carbon brush motor.
Red line: Connect DC power supply positive + (Prohibit errors)
Black line : Connect DC power supply negative - (Prohibit errors)
Yellow line: FG signal line outputs signal, the motor rotates one turn and output six pulse signals
Blue line: PWM pulse width speed control line, can be connected to 0 To 5V
White line: is the line that controls the motor to rotate clockwise or counterclockwise. Connect the white line to the black line and the motor will change the direction of rotation immediately. ( Default overcurrent protection 4A; stall protection; with automatic start function )
