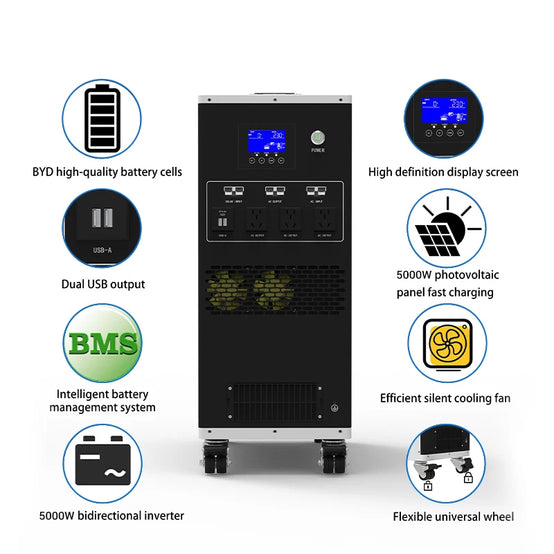

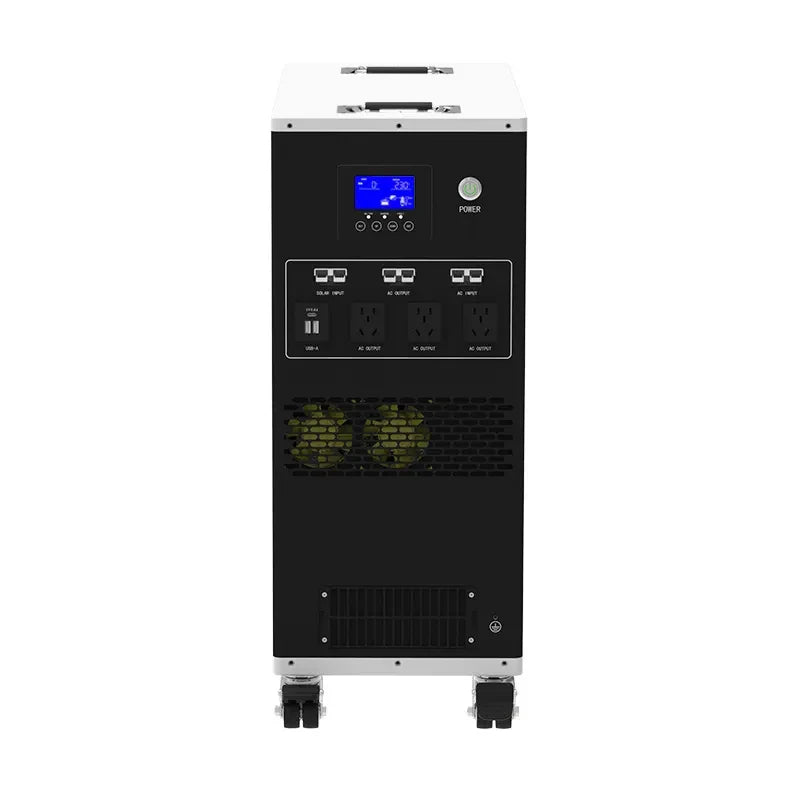

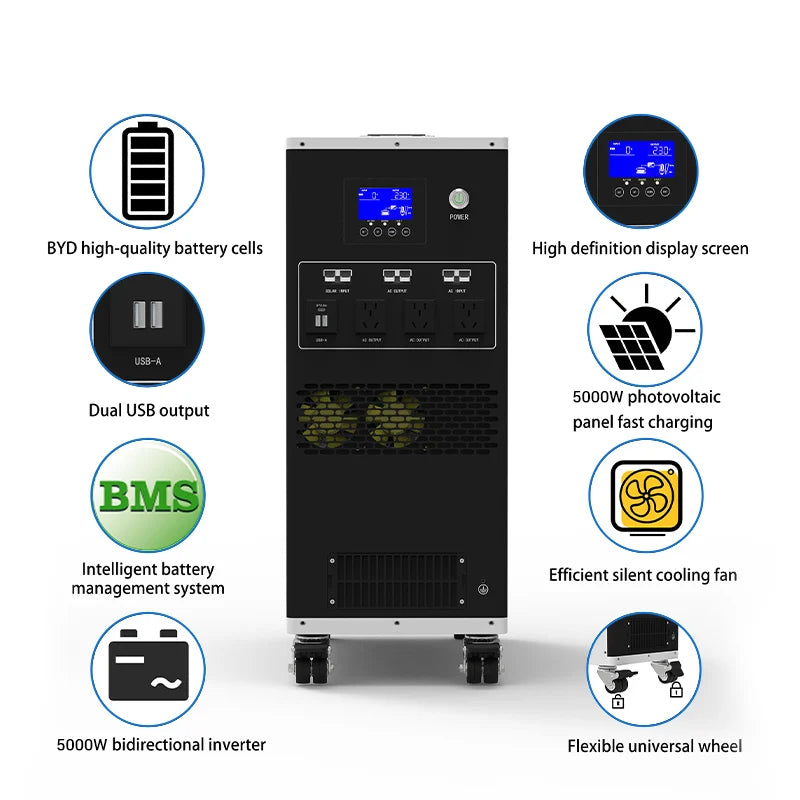

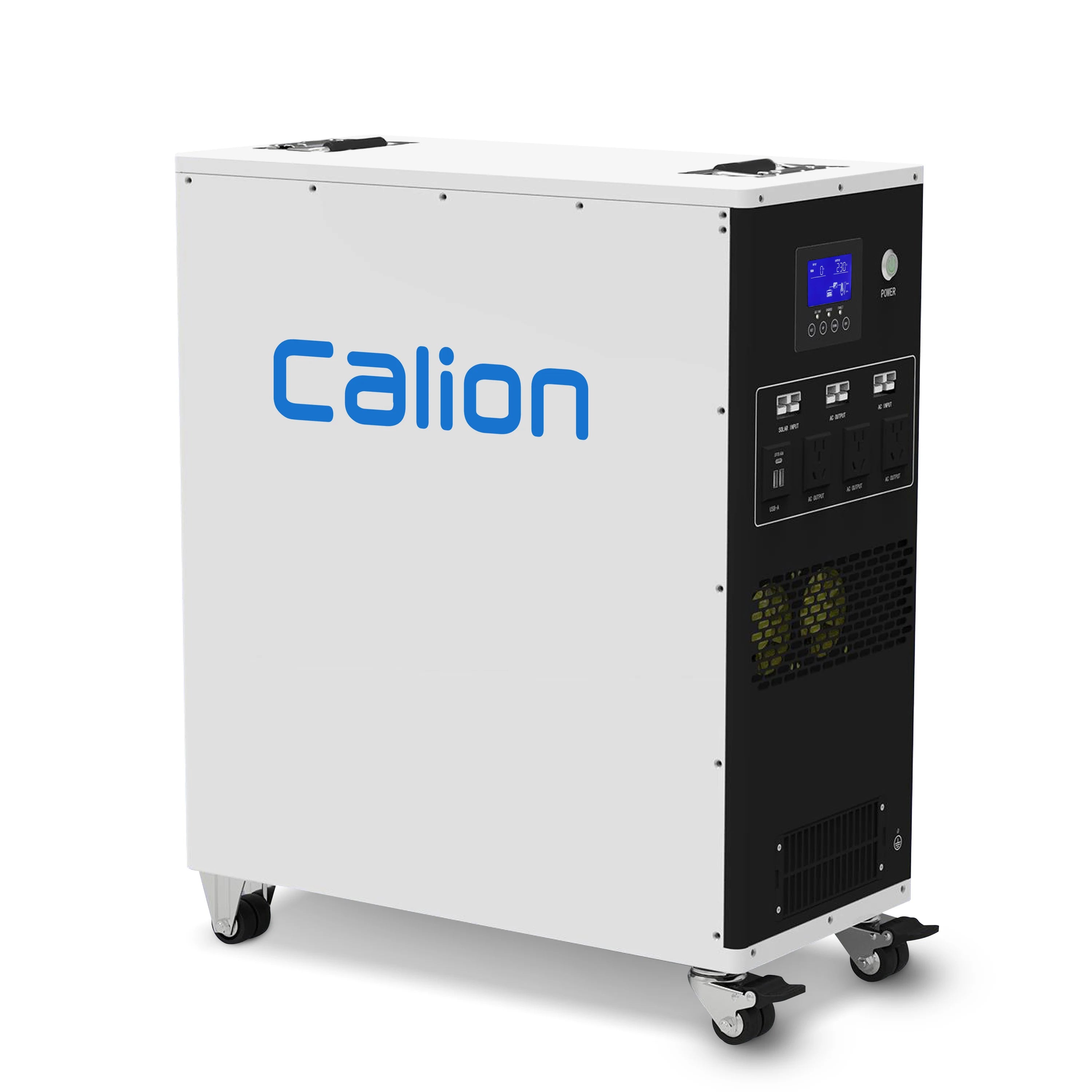

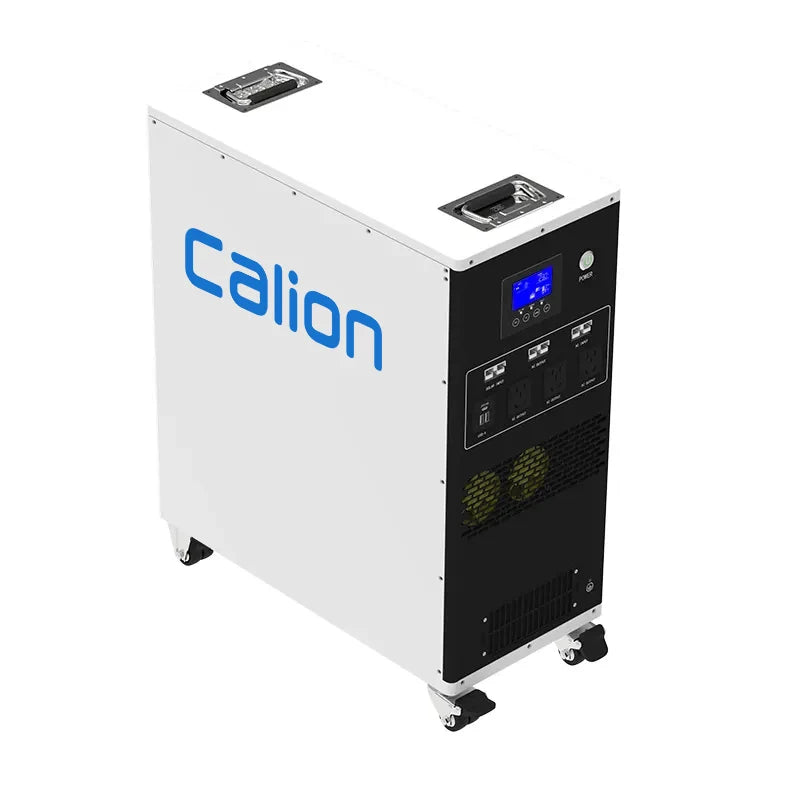

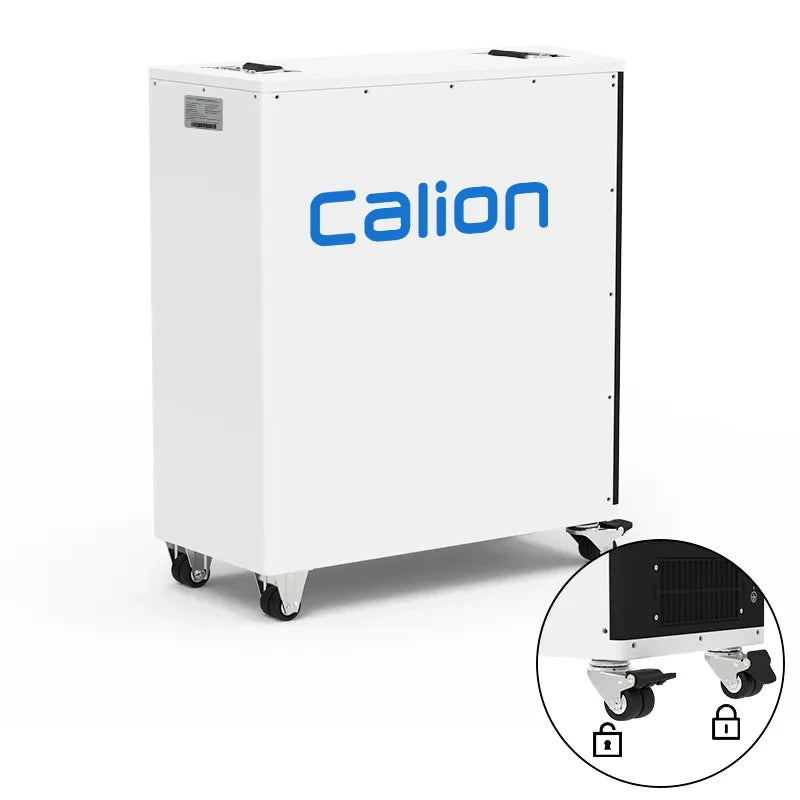

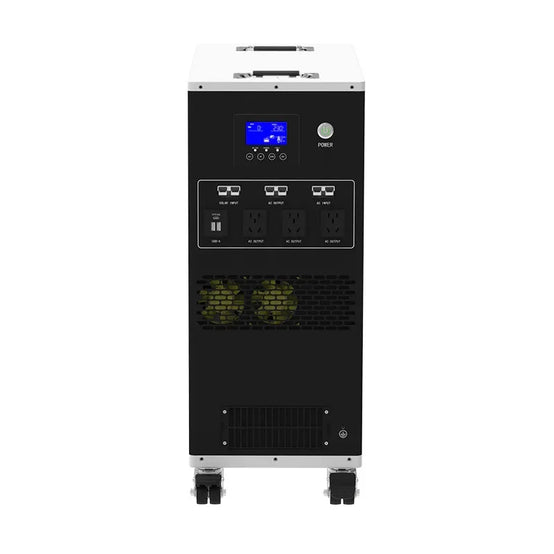

Calion Residential Household Portable Power Station Energy Solar Energy Storage System With Lifepo4 Battery

In Stock Unavailable

sold in last hours

Regular price Rs. 546,331.24 Rs. 1,157,651.89 |  Save Rs. 611,320.65 (52% off)

  Applications: 1.Energy Storage--Solar-Wind Power System / City Grid (On/Off) / Community and Family2.Back-up System and UPS--Telcom Base / CATV system / Computer Server Center / Medical Instrument / Military Equipment 3.Other Applications--Security and Electronics / Mobile POS, Mining Light...
999999999999999999999999

Shipping on all orders

You have got DOOR DELIVERY SHIPPING

Estimated Delivery Between and .

People Looking For This Product

Type :

PRODUCT DETAILS



Applications:

1.Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrument / Military Equipment
3.Other Applications
--Security and Electronics / Mobile POS, Mining Light / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Electric bike / Electric Scooter / Electric
bicycle
--LED Backup / Engine Starting Battery,etc

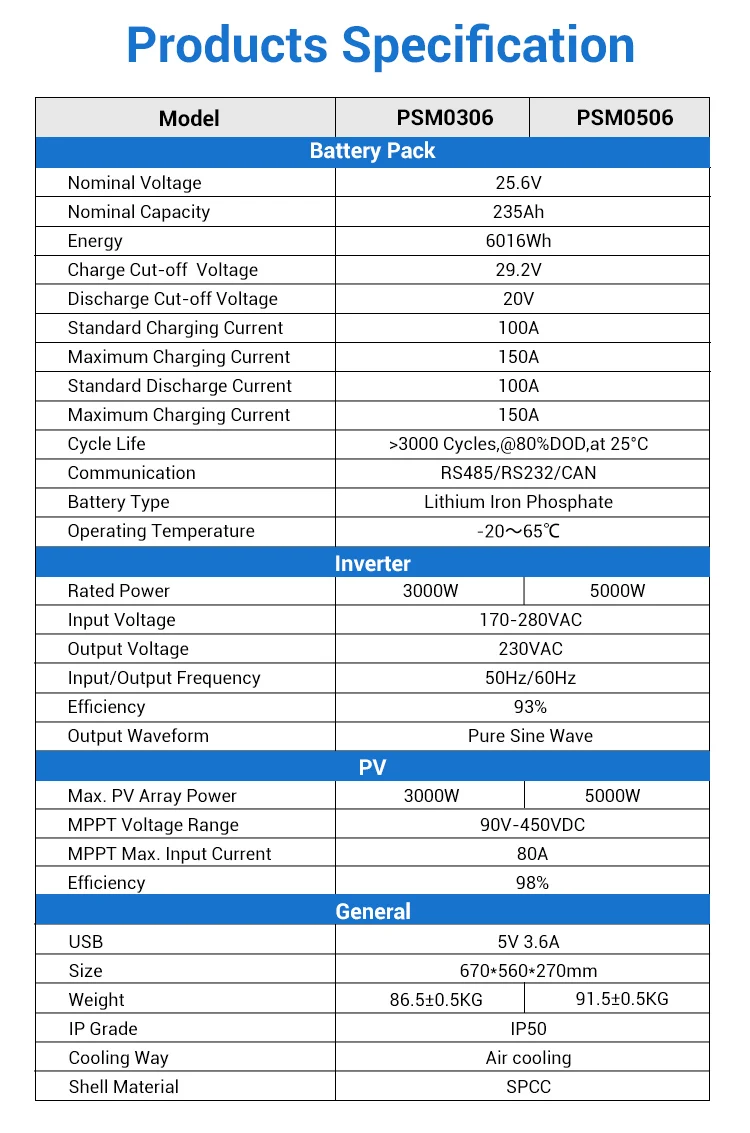

Products Specification
Model   PSM0306   PSM0506
Battery Pack
Nominal Voltage 25.6V
Nominal Capacity 235Ah
Energy 6016Wh
Charge Cut-off Voltage 29.2V
Discharge Cut-off Voltage 20V
Standard Charging Current 100A
Maximum Charging Current 150A
Standard Discharge Current 100A
Maximum Charging Current 150A
Cycle Life >3000 Cycles,@80%DOD,at 25℃
Communication RS485/RS232/CAN
Battery Type Lithium Iron Phosphate
Operating Temperature -20~65℃
Inverter
Rated Power  3000W 5000W
Input Voltage 170-280VAC
Output Voltage 230VAC
Input/Output Frequency 50Hz/60Hz
Efficiency 93%
Output Waveform Pure Sine Wave
PV
Max. PV Array Power  3000W 5000W
MPPT Voltage Range 90V-450VDC
MPPT Max. Input Current 80A
Efficiency 98%
  General
USB 5V3.6A

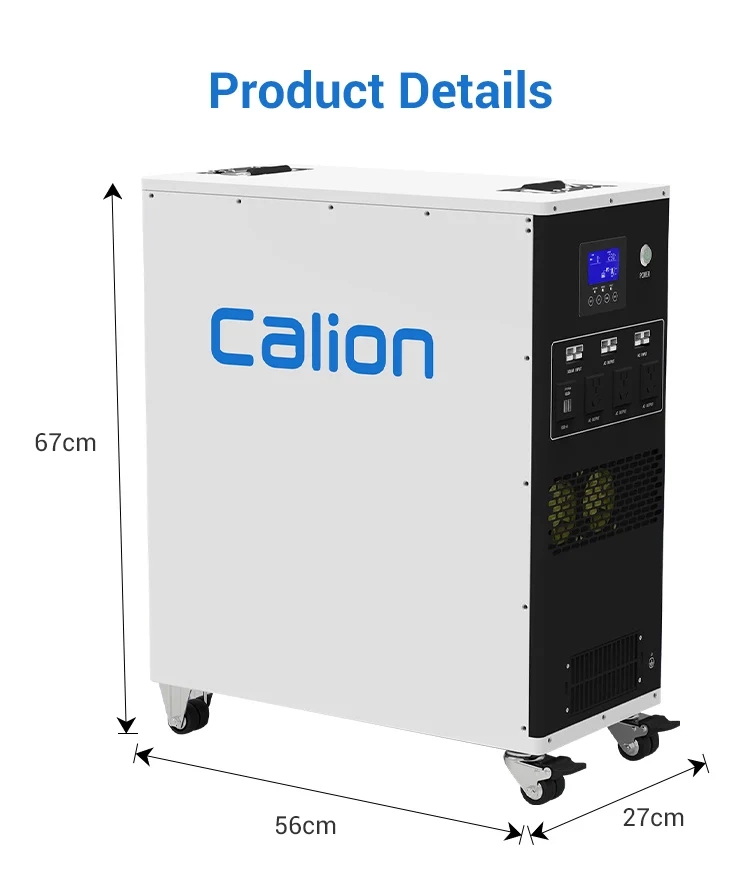

Size 670*560*270mm
Weight   86.5±0.5KG  91.5±0.5KG
IP Grade IP50
Cooling Way Air cooling
Shell Material SPCC

  _01.jpg _02.jpg _03.jpg _04.jpg _05.jpg _06.jpg _07.jpg _08.jpg _09.jpg _10.jpg _11.jpg

FAQ
1.Q: I need more functions such as Bluetooth and LED screen, I also want the anti-vibration design for use in my Marine/RV/Vehicle Can I
customized my battery pack?
A: Yes of course, just let me know what exactly you need, our professional engineering team will give you an excellent solution, more than your expectations.

2.Q: I'm very sensible in price, I am a wholesaler of battery packs, if i sell your battery pack in my city , the profit is very
low, can i get a cheaper price? and i can see your competitor sells more cheap then you.
A: It is highly suggest that you can have a comparision with our competitor. Indeed, there are also some supplier provide low
price battery pack but using cheap material. Pls pay attention to the cycle life and the warranty, and we have anti vibration
design and communication design. maybe you know the price of cylindrical cell is far cheap then prismatic cell.besides, we also
provide cylindrical cell solution , pls contact us directly and we will tell you more. Most Importantly, we can give you a
professional solution according to your local market? low profit? Don't worry about that, our engineer team will help you help you
to solve it.

3.Q: I can see the post that your company shows the warranty is 5 Years, so no matter what the battery pack be used
for, all 5 Years?
A: No sir, maybe you know the cycle life of cell is not only depends on the quality itself , but also be affected by the
discharge/charge rate the actual temperature. So it is unresponsibility at all if a supplier tell you the cycle life but no
talking about the actual usage. For room temperature 25℃ and 1C discharge and 0.5C charge, the cycle life of the
battery pack can exceed 4000 cycles and warranty 5 Years, only energy storage usage.

4.Q: Can these battery pack be compatible with my inverter? do you have a company list of the inverter which is compatible?
A: Yes sir, our battery pack can compatible with most brand of inverter on the market, contact us and let me tell you more.

5.Q:What about the delivery time and shipping?
A: some of times in stock, we can make 3-7days fast delivery. For USA,Canada,Austraila and most of European country , we provide
tax included services, door to door, once you place an order ,then you will receive your new battery pack in about 40-55 days at
your home! We also have Oversea warehouse service, 3-7days arrive, no tax fees, please contact with our sales !

6.Q:Can it be series or parallel for use?
A: Yes sir, it can support max. 4 in series or parallel connection for use ( 12V series ) and no any additional device.
