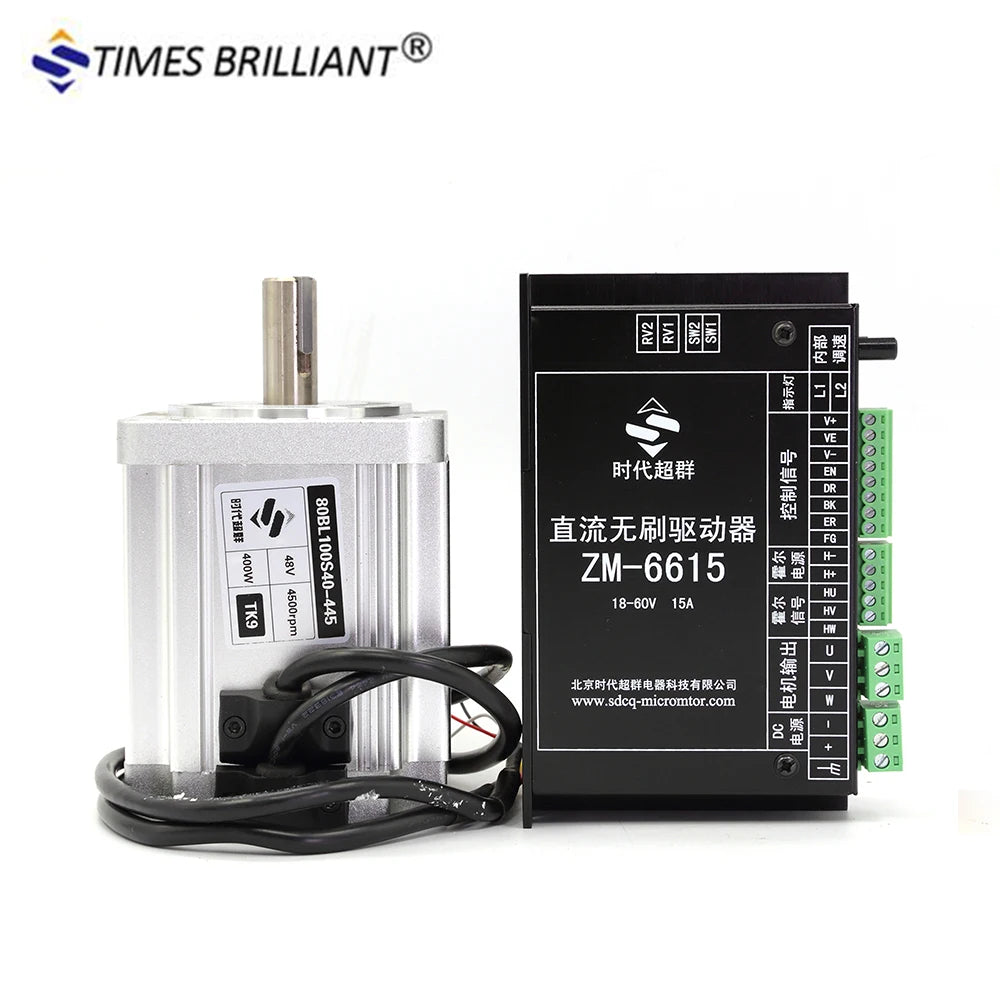

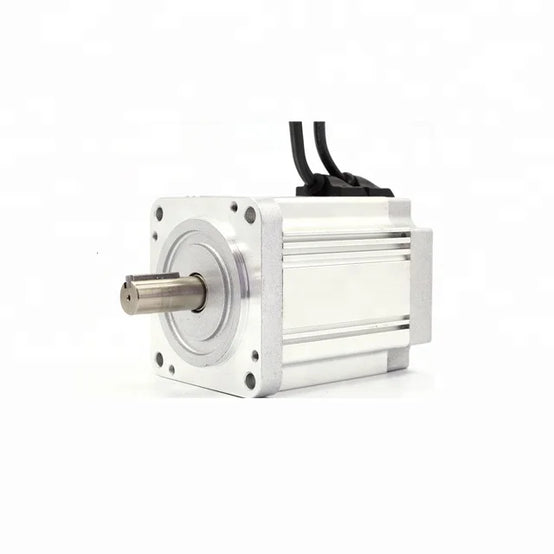

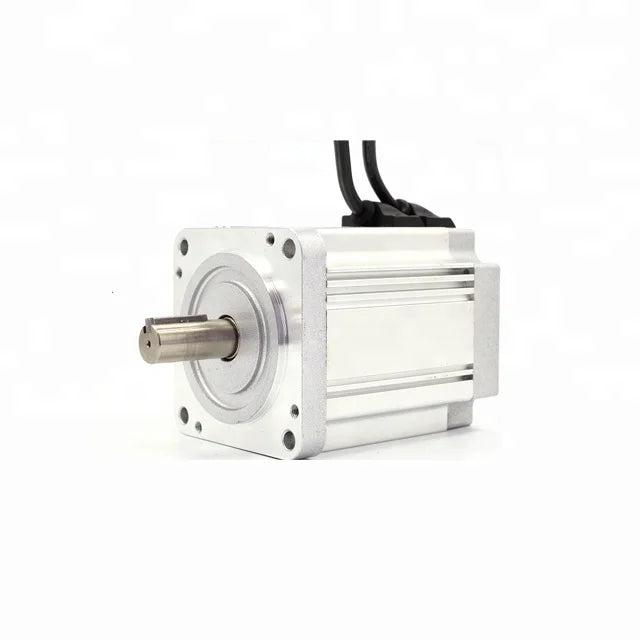

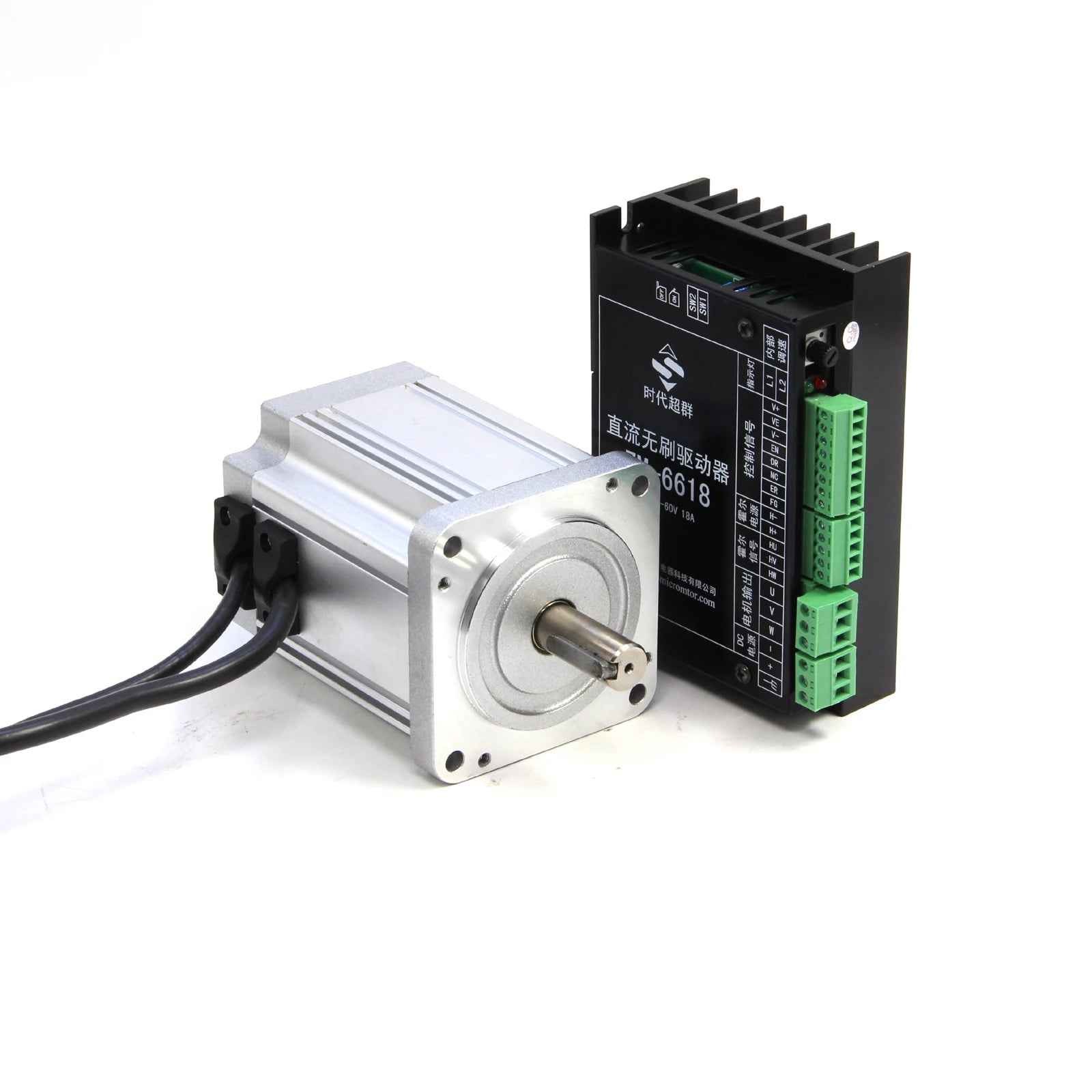

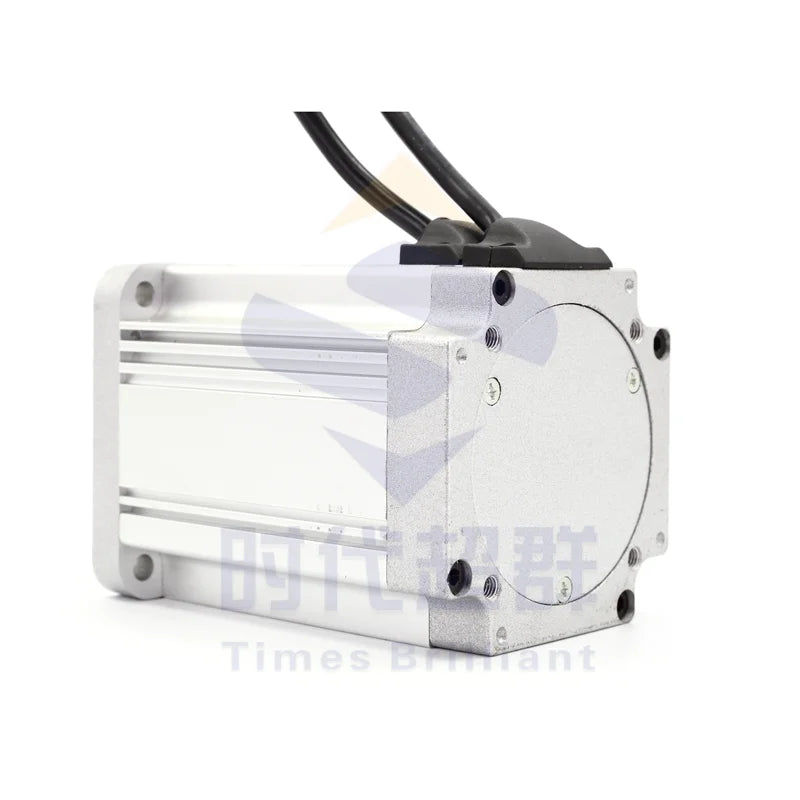

400w BLDC motor with speed controller 48V 4500rpm long lifetime brushless dc motor kit
Share

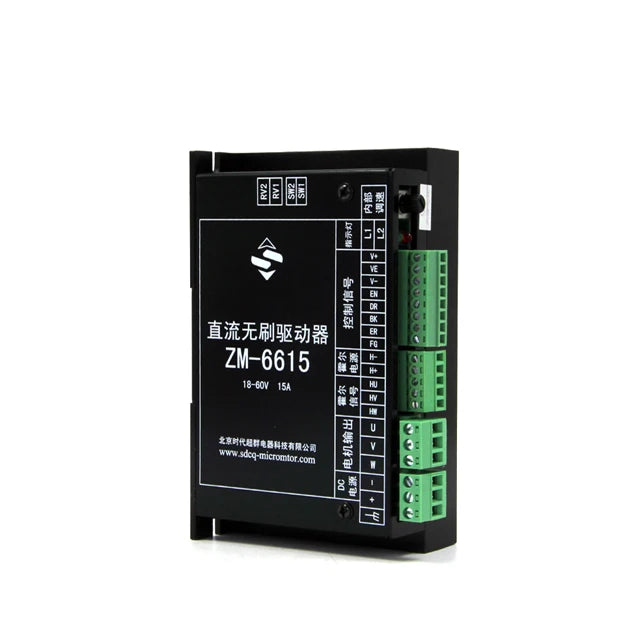

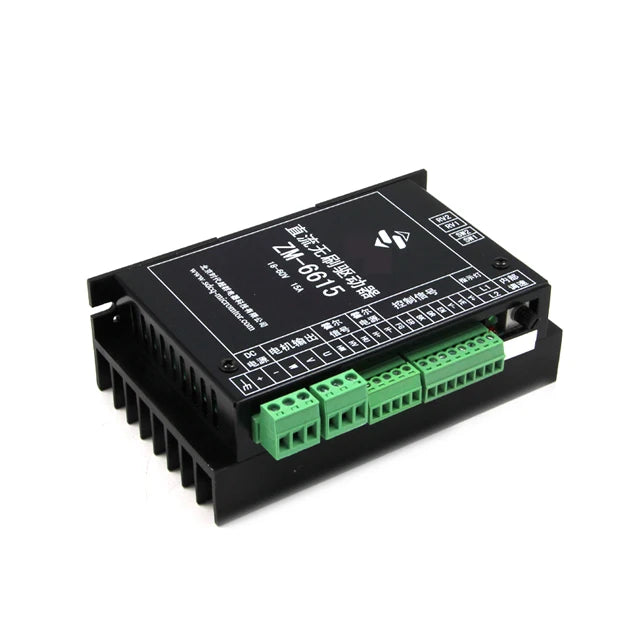

Matched controller:
1.Product Feature:
High Integration and Stable Brushless DC Motor Controller
This controller has three manners of working: speed control, current control and open-loop control.
Control functions of braking, direction, enable,Maximum current limit can be adjusted
Total Hardware Design, High Speed, Anti-Interference
Limited Current Intelligent, Protect more fast and accurate
Low fever, High Power
2.Main Function:
Low Voltage ≤18V or Overheat than >150℃ can automatically protection.
Overload protect time can judged arround 2 - 15 seconds.
Hall error can automatically protect.
Output limited Current Can be adjust around 1A-15A.
Potentiometer, potentiometer outside, Analog voltage
and PWM speed adjust.
Start and Stop function.
Speed signal feedback and output.
EABS electrical fast stopping function.
Less speed start function, avoid current overflow, protect moter effect.
3.Production Basically Working Condition:
| Parameter | Min | Rated | Max | Unit |
| Envirment Tempreture | -30 | 60 | ℃ | |
| DC Power Input | 18 | 48 | 50 | V |
| Drive Current Output | 0 | 25 | 45 | A |
| Suitable Motor Speed | 0 | 20000 | rpm | |
| Hall Sensor Voltage | 4.5 | 5 | 5.5 | V |
| Hall Sensor Current | 20 | mA | ||
| External Potentiometer | 10k | Ω | ||
| Simual Voltage Speed Control | 0 | 5 | V | |
| PWM Speed Control Signal Voltage | 4.5 | 5.5 | V | |
| PWM Speed Control Signal Voltage Occupation | 0 | 100 | % | |
| Control Ways Voltage | 4.5 | 5 | 24 | V |
