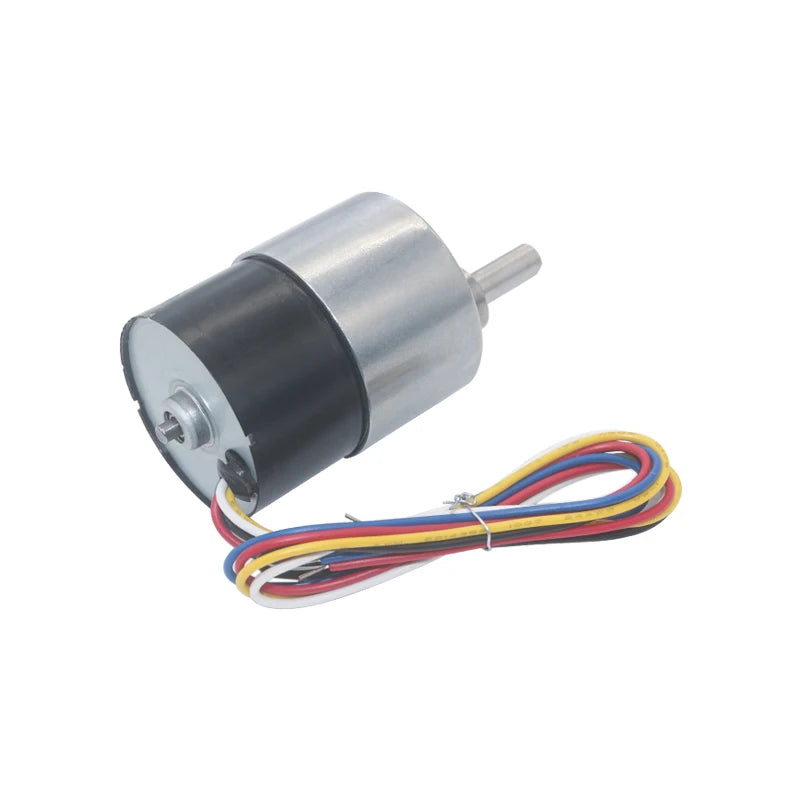

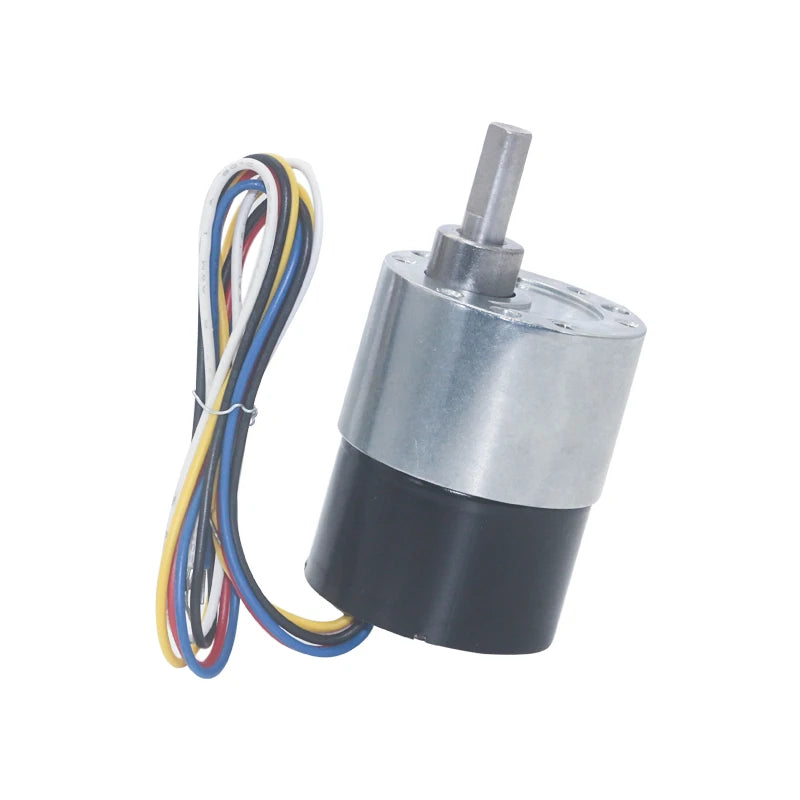

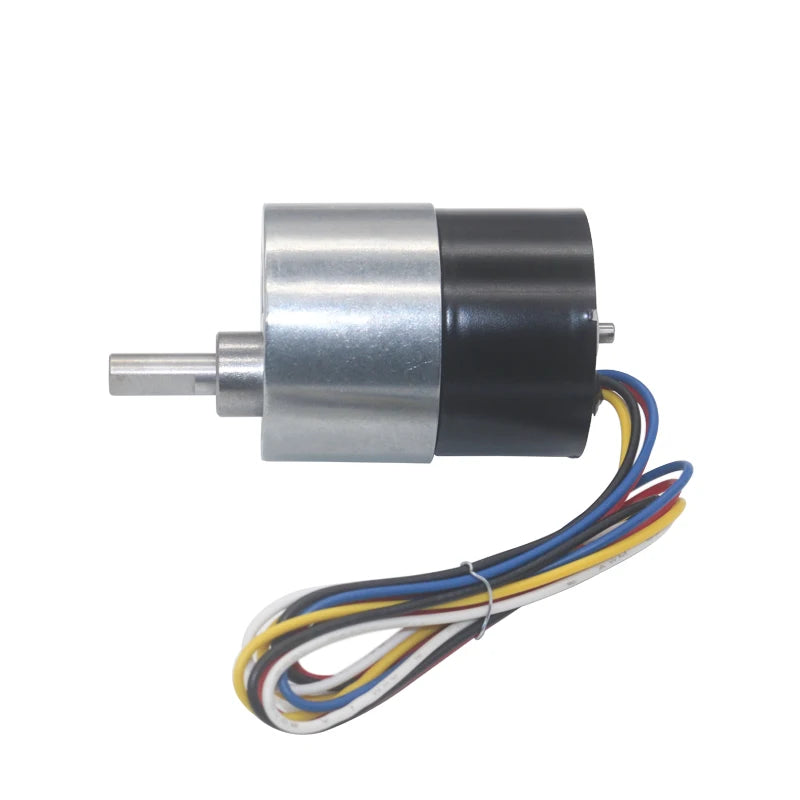

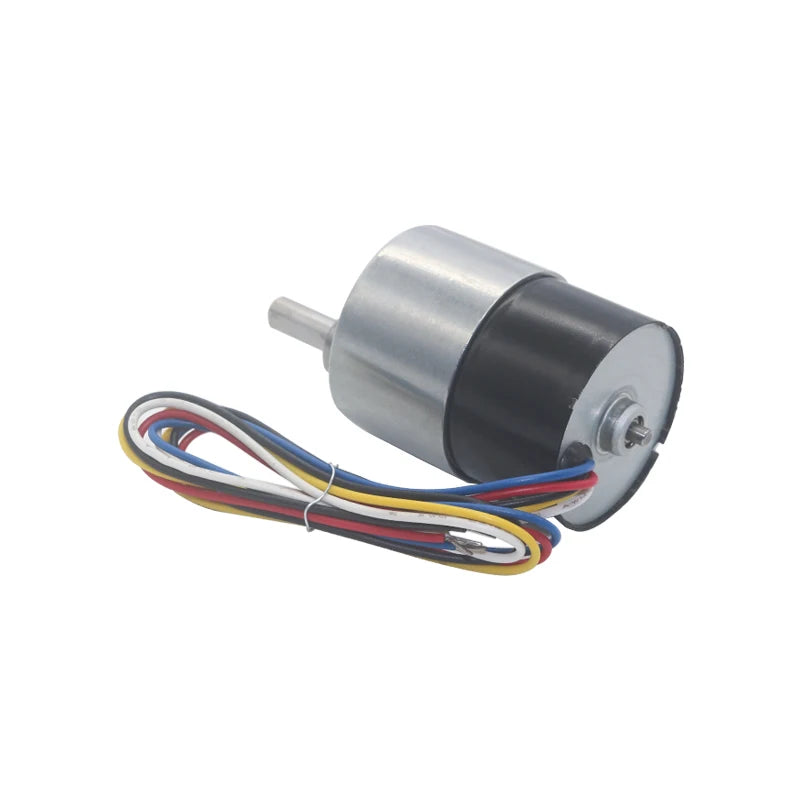

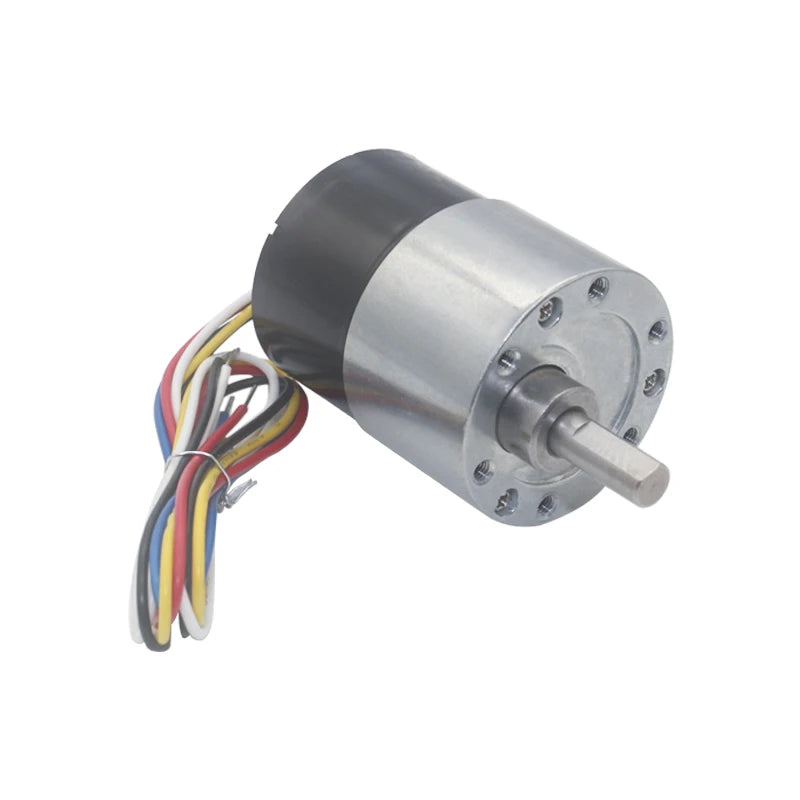

12VDC 17RPM Dc Geared Motor Gear Box Brushless Electric Motor Gear Motors with Reduction 37mm Diameter Permanent Magnet IE 1 2W
Save -52%
Rs. 7,285.05
Rs. 15,034.18
HURRY ! ONLY
9999 LEFT IN STOCK.
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Product Description
Specification:
* Voltage:DC12V
No-load Speed:480rpm,300rpm,160rpm,100rpm,53rpm,33rpm,22rpm,17rpm,11rpm,6rpm,4rpm
* Voltage:DC12V
No-load Speed:480rpm,300rpm,160rpm,100rpm,53rpm,33rpm,22rpm,17rpm,11rpm,6rpm,4rpm
* Voltage:DC24V
No-load Speed:960rpm,600rpm,320rpm,200rpm,107rpm,66rpm,45rpm,35rpm,22rpm,12rpm,7rpm
No-load Speed:960rpm,600rpm,320rpm,200rpm,107rpm,66rpm,45rpm,35rpm,22rpm,12rpm,7rpm
* Motor Features: low noise,long life,adjustable speed,with brake, with speed feedback signal
* Motor Diameter: about 37mm
* Motor Body Length: 25mm
* Output Shaft Diameter: 6mm(D-Type)
* Output Shaft Length: 12mm
* Gearbox Length: see the table
* Motor Diameter: about 37mm
* Motor Body Length: 25mm
* Output Shaft Diameter: 6mm(D-Type)
* Output Shaft Length: 12mm
* Gearbox Length: see the table
Wire Connection Method:
* Red line: power +
* Black line: Power -
* White line: CW / CCW control line,White line and black line together, you can change the motor direction
* Blue line: PWM speed control line, then 0 ~ 5V pulse width governor
* Yellow line: FG signal line
* Red line: power +
* Black line: Power -
* White line: CW / CCW control line,White line and black line together, you can change the motor direction
* Blue line: PWM speed control line, then 0 ~ 5V pulse width governor
* Yellow line: FG signal line
|
Brushless Gear Motor
|
||
|
Model
|
JGB37-3525
|
|
|
Motor Voltage(VDC)
|
12V 24V
|
|
|
Reduction Ratio
|
6.3,10,19,30,56,90,131,168,270,506,810
|
|
|
Gearmotor No Load Speed(RPM)
|
4RPM- 960RPM
|
|
|
Gearmotor Rated Load Speed(RPM)
|
2.5RPM -738RPM
|
|
|
Gearmotor Rated Load Torque(kg.cm)
|
35kg.cm
|
|
|
Gearmotor No Load Current(A)
|
<70ma
|
|
|
Gearmotor rated current(A)
|
<300ma
|
|
|
Housing material
|
Stainless steel
|
|
|
Bearing at output shaft
|
Ball-bearing or oil-retaining bearing
|
|
|
Shaft Shape
|
D-type
|
|
|
Gear type
|
Spur gear
|
|
